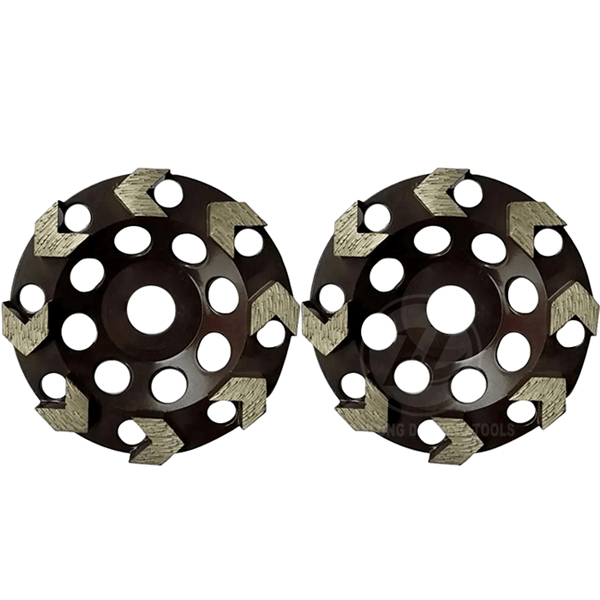

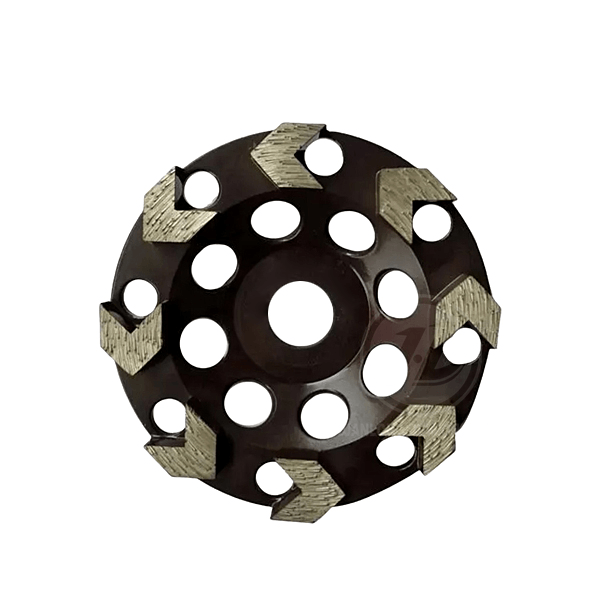

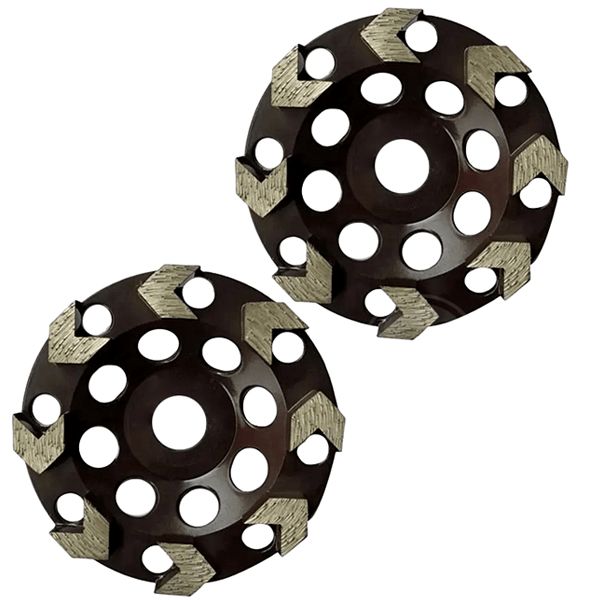

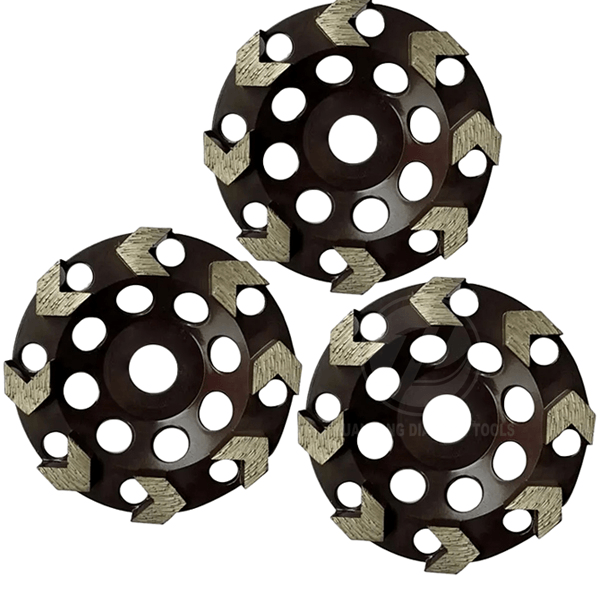

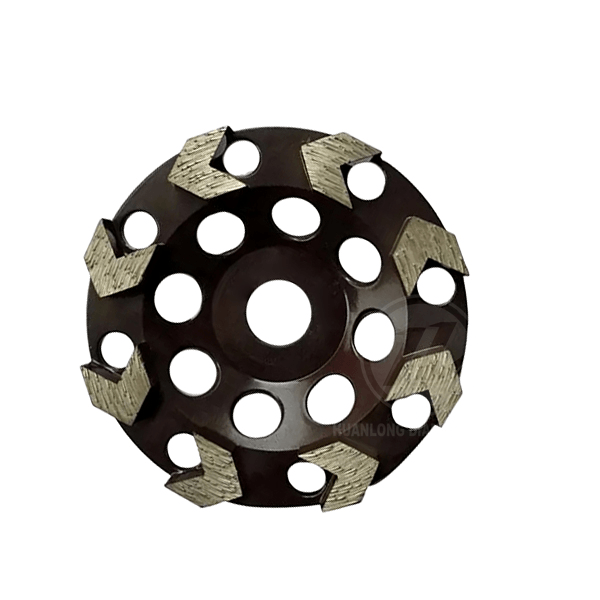

Huanlong 7 inch Arrow Segment Diamond cup wheel
Application: Huanlong Arrow Segment Turbo cup wheel is a professional grade grinding disc for fast grinding hard materials such as concrete, Terrazzo, Engineered Stone, granit, marble and etc.
Arrow segments make this cup wheel very aggrasive with high material remove rate.
Using the highest quality diamonds and metal material with high segment diamond concentration, Huanlong diamond cup wheels performexcellent effciency compare to tradional abrasive diamond tooling.
Available on standard 22.23mm bore, M14 Thread, 5/8″-11 Thread, perfect for fitting conmmon brand angle grinders for on site grinding jobs.
Various types of base cup wheel optionsavailable for different types of angle grinders, please contact us for availability and detail.
Size: 100mm/4″,125mm/5″, 180mm/7″, or upon request.
Segment number: 4/6/8 Arrow diamond segments or upon request
Grit: 16#,25# or upon request
Segment bond: Soft, Medium, Hard or upon request.
Bore size: 22.23mm, M14 ,5/8″- 11 or upon request
Working type: Dry grinding / Wet grinding
