Diamond segment bar is the most common shape of diamond grinding segment used in concrete grinding plate. With different grits, it can be used for coarse grinding, medium grinding, and fine grinding. Trapezoid PCD is easy and quick set up of diamond tools, the universal three holes fit most plates. Available for a variety of machine manufacturers.
Huanlong PCD grinding plates with large cooling holes are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor.
Huanlong 2 Large Rhombus segments Redilock grinding shoes are specifically designed for high-efficiency floor prep and aggressive coating removal.
Huanlong 2 round segments Lavina grinding shoesare specifically designed for high-efficiency floor prep and aggressive coating removal.

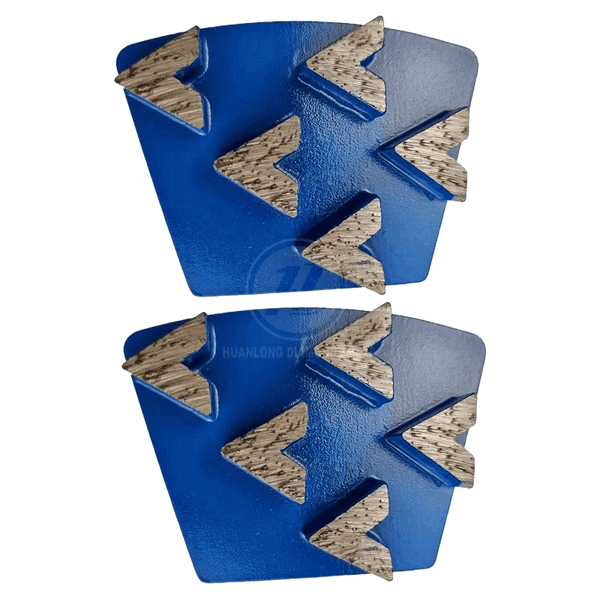

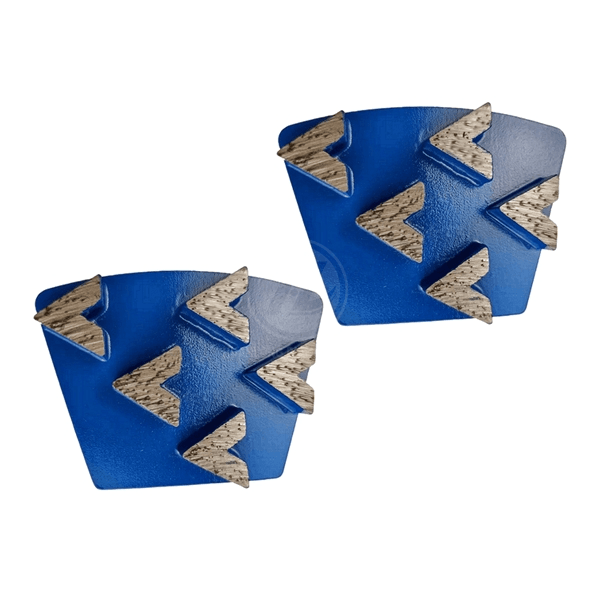

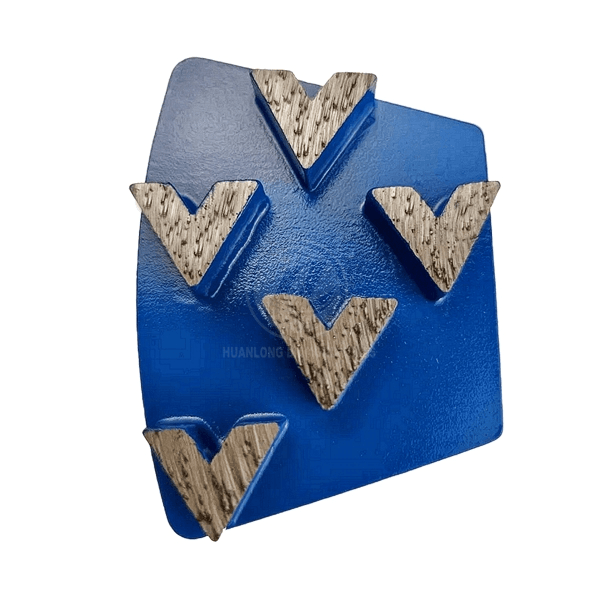

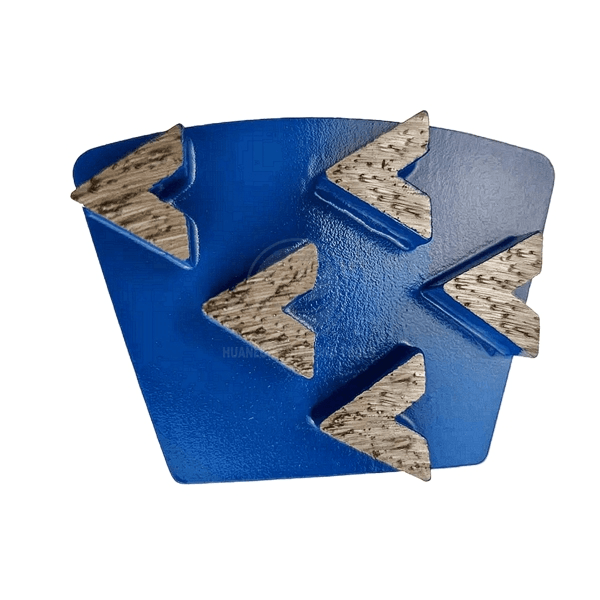

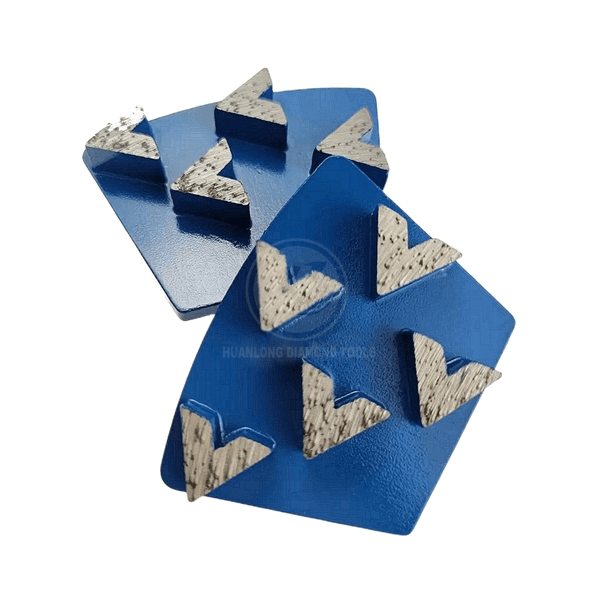

Trapezoid more small segment grinding disc are designed specifically for the quick Change system. The five V-shaped diamond segments providing a balance between aggressive cutting and a stable, smooth finish.
Email：
contact@hldiamondtools.com
New QuickChange Tooling with V-shaped Segments for Soft, Medium, Hard and Extra Hard Concrete are recommended for aggressive grinding and coating removal.
Specifications
System: Compatible with trapezoid quick Change system, allowing for tool changes in seconds without screws.
Segment Size: 8/10/12mm H
Grit Range:
Available from very coarse (6/16 grit) for heavy removal to fine (120/150 grit) for smoothing.
Available bond:
extra soft bond for extra hard concrete
soft bond for hard concrete
medium bond for medium concrete
hard bond for soft concrete
extra hard bond for extra sofe concrete
Usage: Can be used for both wet and dry grinding applications.
