Trapezoid Fast Lock Diamond Grinding Shoes is mainly quick installed on floor grinders and is used for leveling concrete floors, grinding stone materials, and removing paint, glue, epoxy resin (Epoxy), or floor coatings from the surface.
PRODUCTS
HOT PRODUCTS
HTC-compatible split PCD (Polycrystalline Diamond) bar grinding shoes are aggressive floor preparation tools designed for HTC EZ-change systems. They feature split PCD bars that efficiently rip off 1-3mm coatings—such as epoxy, glue, mastic, and paint—without smearing, lasting longer than traditional metal bonds. They are ideal for rapid, heavy-duty coating removal on concrete floors.
Diamond segments have many different kinds of shape: Arrow, Rhomboid, Rectangle, Curved Rectangle, Coffin, Oval, Button, etc. Rounded shape is ideal for achieving a smooth finish and minimizing deep scratching, particularly on uneven floors.
Fast removal of thick coating such as old glue, epoxy, paint, in particular thick resins.
Creates slip-resistant finish on granite and marble, breaks down coatings prepares surface for application of new coating overlay, enhances the combination of floor and new layer material.
10 inch Hybrid PCD Diamond Grinding Plate with cooling holes, Grinding Disc 12*1/4 PCD+6 diamond Seg, for Coating Removal, Epoxy, Paint, Glue, etc
Huanlong PCD grinding plates are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor.
Email：
contact@hldiamondtools.com

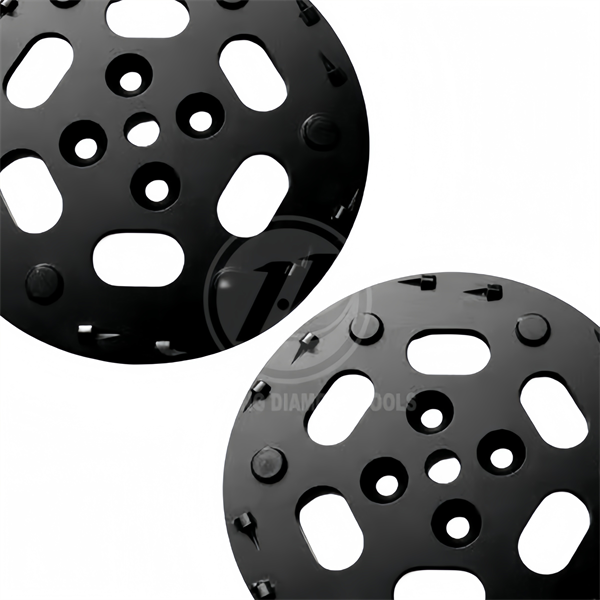

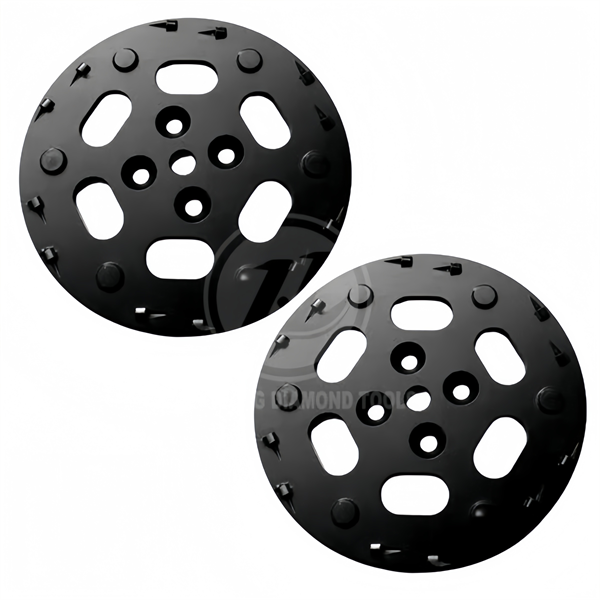

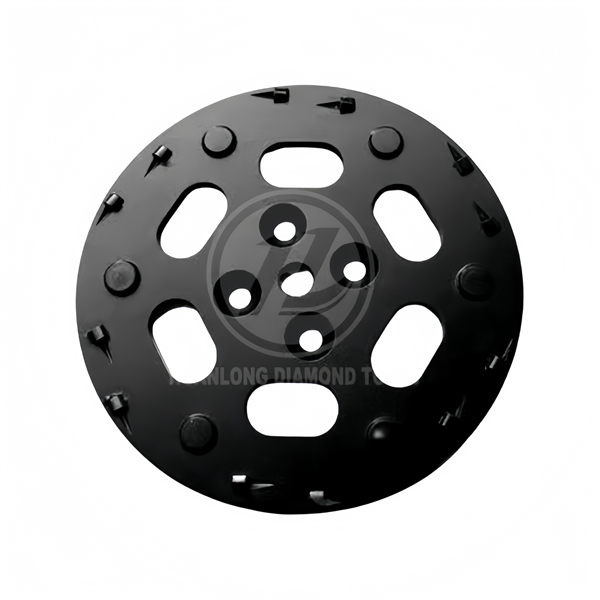

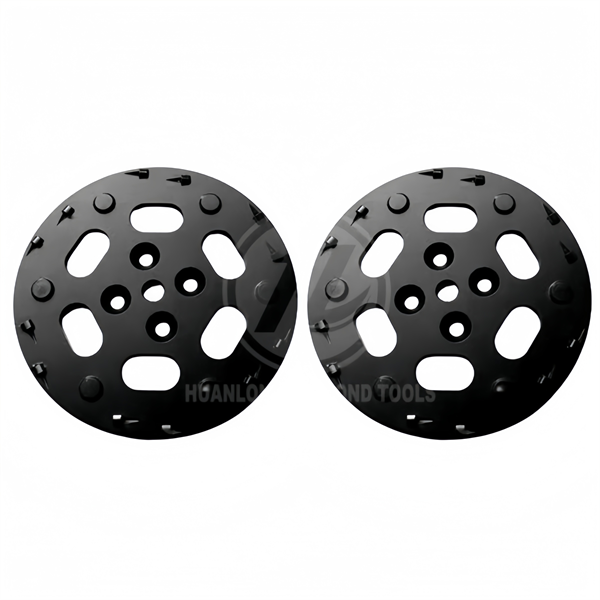

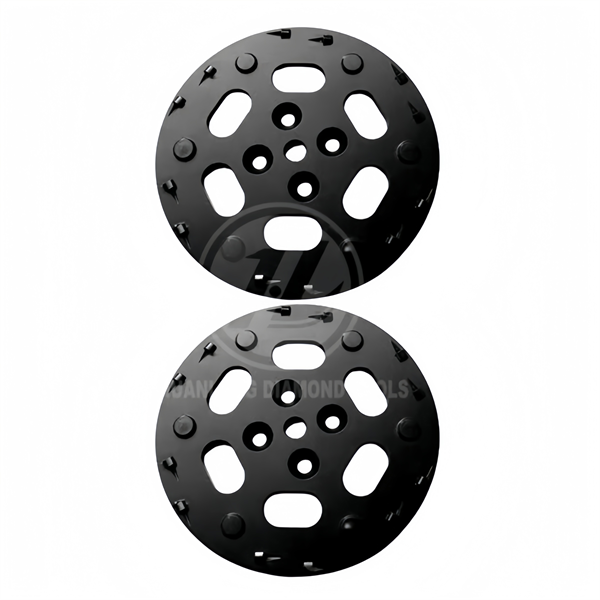

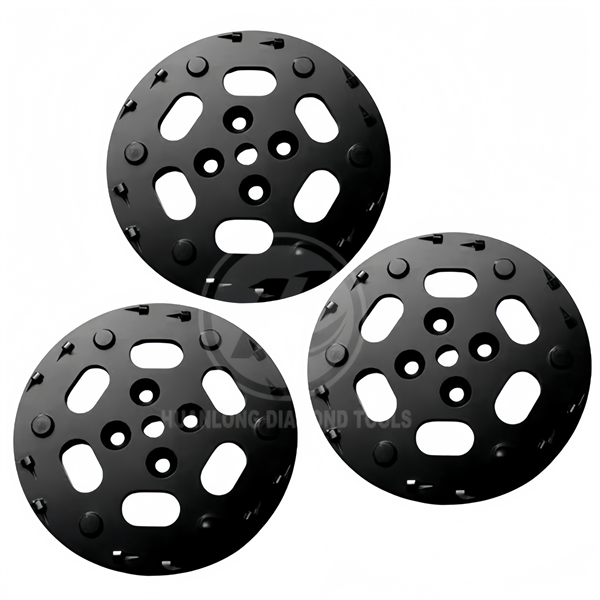

10 inch PCD Diamond Grinding Plate with cooling holes, Grinding Disc 12*1/4 PCD+6 diamond Seg
Application: Huanlong 10 inch PCD Grinding Disc with cooling holes is a professional grade grinding plate for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor.
Hybrid style PCD grinding plate, the combination of 1/4 PCD segment and metal bond diamond segments, make this a grinding disc an economical choice compare to full PCD grinding plates.
Extra cooling holes increase air flow to helps cooling down and aviod gumming up of dust during grinding process
Using the highest quality polycrystalline diamonds to rapidly lift material, performing outstanding effciency compare to tradional abrasive diamond tooling.
Universal installing holes for fitting most of grinding machines on the market ( Blastrac, Husqvana, Edco, MK, etc)
Extremely aggressive, rapid removal speed
Diameter: 250mm (10″)
Segment number: 16 / 18 / 20 PCD or upon request
Working type: Dry grinding / Wet grinding
•The PCD plates are easily remove 1-3mm epoxy coatings,they are well suited to efficient bumpy concrete surfaces and small plane surfaces.
•High superior hardness,high fracture strength and uniformed properties.
•Special segment size we also can manufacture after received your update drawing.
