Redi Lock adapter is a tool holder and quick-change system, primarily used on Husqvarna concrete floor grinding machines, that allows for the fast and hassle-free attachment and removal of various diamond grinding tools. The system ensures a secure fit and protects the diamond tooling, enhancing efficiency and productivity in surface preparation projects.
The ten-segment grinding tool is made of high-quality diamond grinding material, which is evenly embedded in each cutting segment. The rounded blade edge design minimizes scratches to the maximum extent, extends service life, and boasts excellent durability and grinding performance. The metal cutting segments are suitable for both wet and dry operations, while the ten-segment end face design provides the optimal chip or slurry discharge channel.

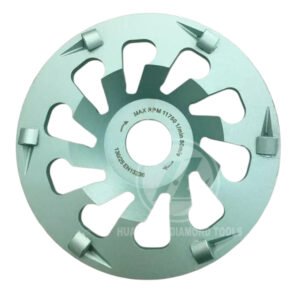

The 7 inch Air cool 6 PCD segments diamond grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, ,waterproofing membrane,pool deck coating, thick mastic, old and new epoxy coating,VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor.
SASE Diamond Tooling – Arrow Segment is designed to provide the operator with fast production rates to remove epoxy and glue over concrete floors.
HTC triple triangle grinding shoes are specialized diamond tools designed for the HTC EZ Change system. While many standard shoes use one or two segments, the “Triple Triangle” configuration is engineered to strike a specific balance between aggression and smoothness.
Email：
contact@hldiamondtools.com

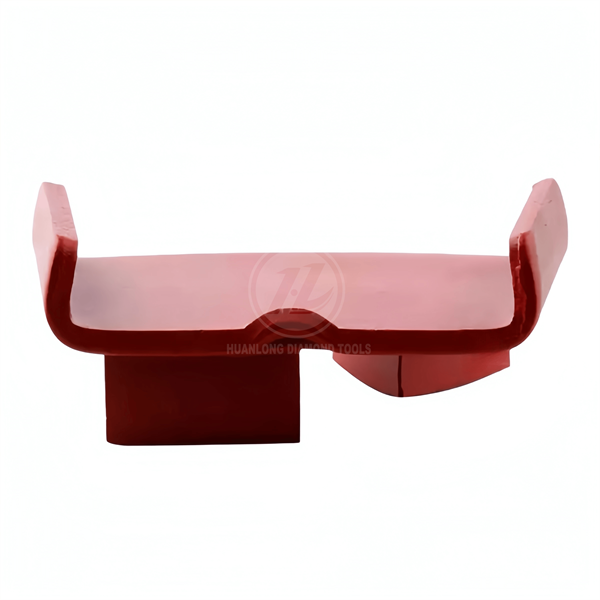

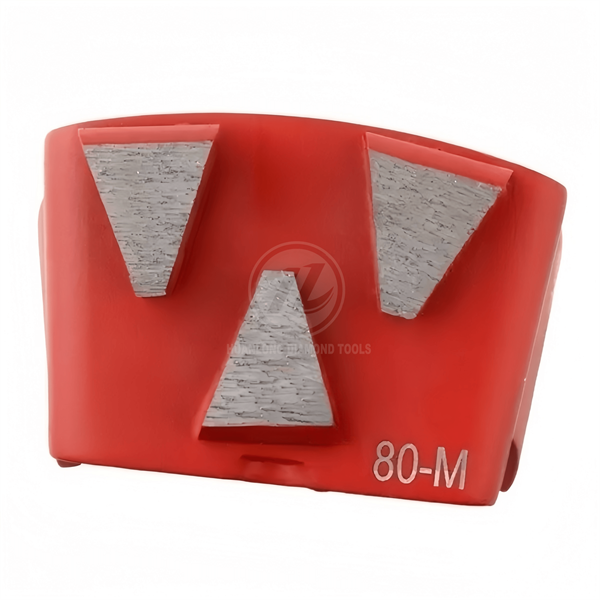

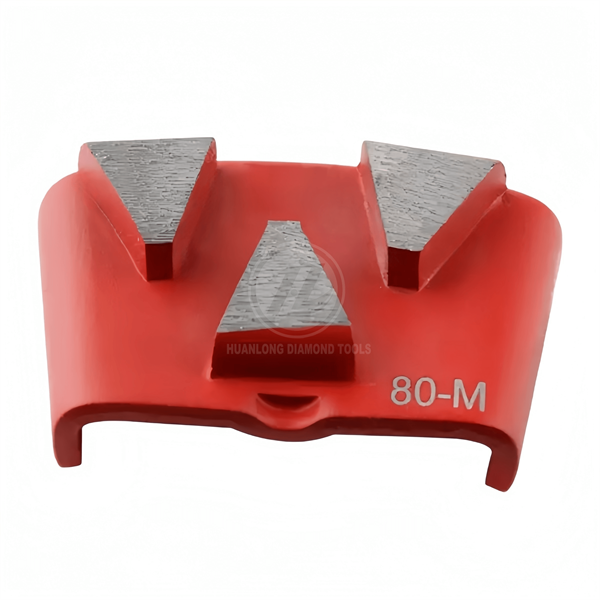

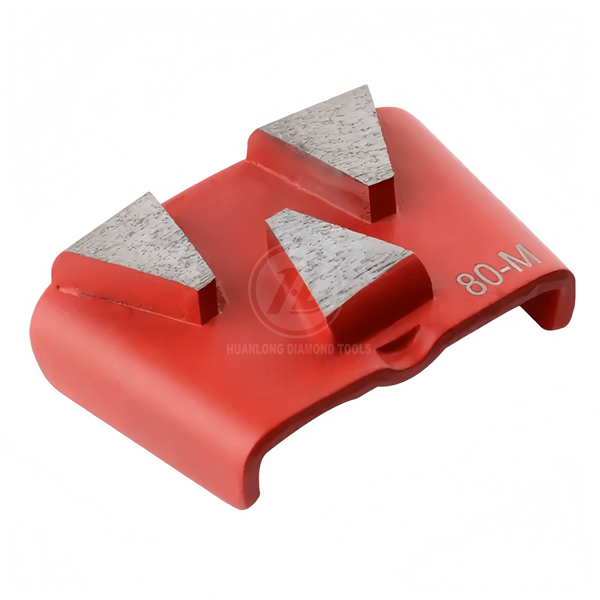

Huanlong HTC Diamond Grinding Shoes With Triple Triangle Provides a very stable platform for the machine. The three points of contact per shoe reduce the “digging” effect, making it easier to achieve a flatter floor without deep gouging.
Applications
• Persistent Coating Removal: The triangular shape has a sharp “leading edge” that helps slice through stubborn epoxy, glue, paint, and thin-set more effectively than rounded segments.
• Floor Leveling: Because of the three-point contact, these shoes help the machine ride over high spots more consistently, resulting in a flatter surface.
• Terrazzo & Stone Renovation: Used for the initial coarse grinding of stone floors where high precision and flatness are required before moving to polishing stages.
System Compatible with HTC EZ Change (Greyline and Professional series)
Grit Range Typically available from 6# (extremely aggressive) to 150# (honing)
Bonds Soft (for hard concrete), Medium (standard), and Hard (for abrasive/soft concrete)
Material Metal-bonded diamond segments with a heat-treated metal body.
Note：Please leave your email, our professional person will contact you asap!
Keywords: CW505、CW507、Class B water mill、7-inch turbine 30
