Fast removal of thick coating such as old glue, epoxy, paint, in particular thick resins.
Creates slip-resistant finish on granite and marble, breaks down coatings prepares surface for application of new coating overlay, enhances the combination of floor and new layer material.
Rhombus diamond grinding segments are durable, high-efficiency abrasive tools primarily used for concrete floor grinding, polishing, and surface preparation. Their unique shape provides a larger surface area and aggressive grinding action compared to other segment types
HTC single bar grinding shoes are more aggressive compared to their double-segment plate. Because the machine’s entire weight is concentrated on half the surface area (one bar instead of two), they bite significantly deeper into the concrete and best for lighter machines.
Using the metal bonding agent is to fix the diamond on the tool body, and it wears along with the diamond’s wear, exposing new sharp diamonds to maintain cutting performance.The cutting segments come in various shapes and sizes (such as Arrow-type, Rhombus-type, stepped type, segmented type, etc.), designed to optimize chip removal, cooling, and reduce friction, thereby improving cutting efficiency and extending tool life.
The ten-segment grinding tool is made of high-quality diamond grinding material, which is evenly embedded in each cutting segment. The rounded blade edge design minimizes scratches to the maximum extent, extends service life, and boasts excellent durability and grinding performance. The metal cutting segments are suitable for both wet and dry operations, while the ten-segment end face design provides the optimal chip or slurry discharge channel.
Email：
contact@hldiamondtools.com

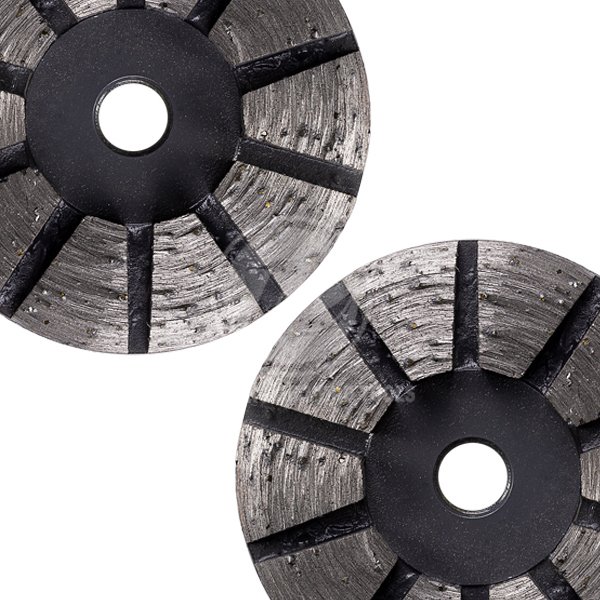

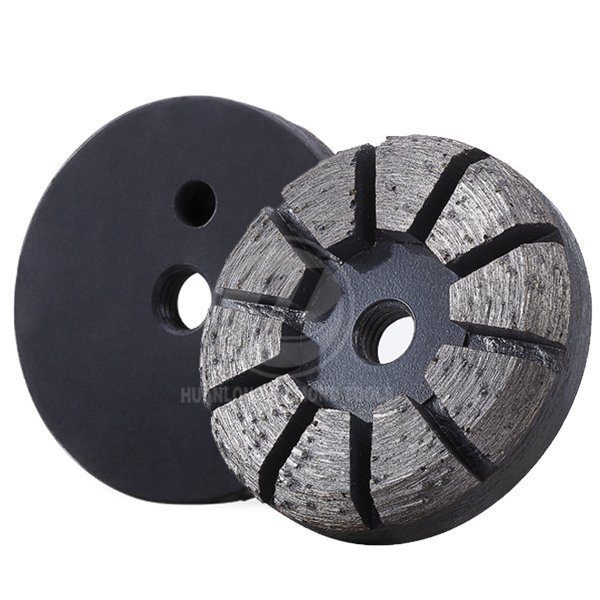

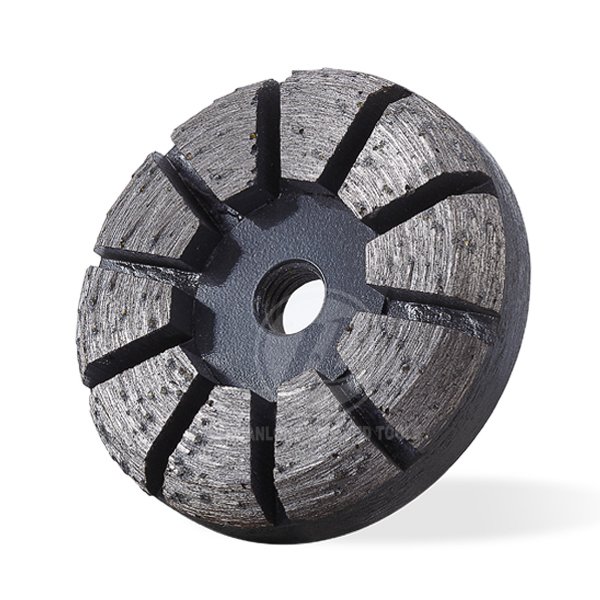

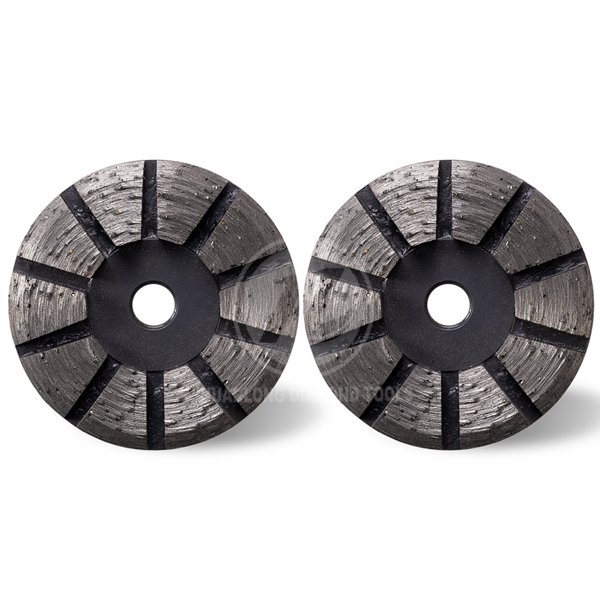

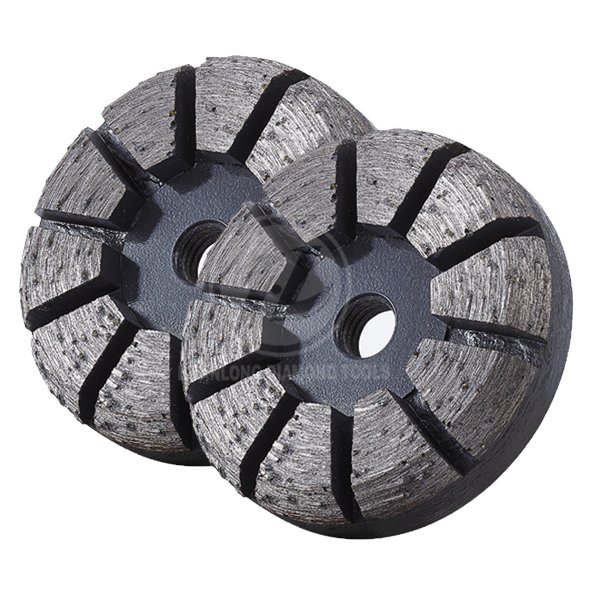

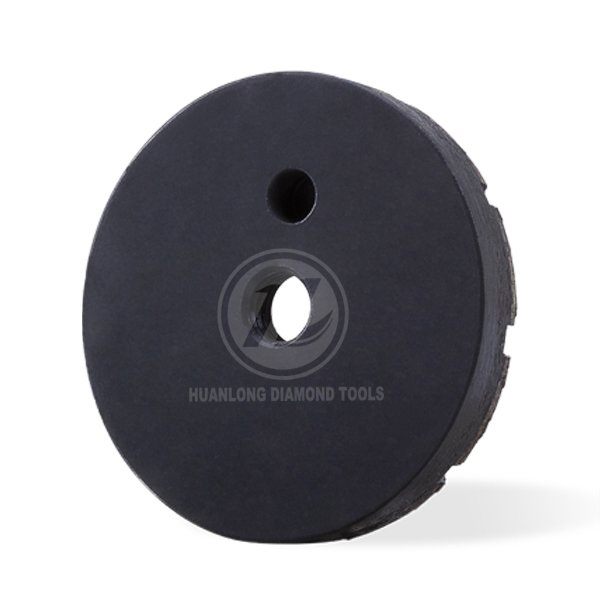

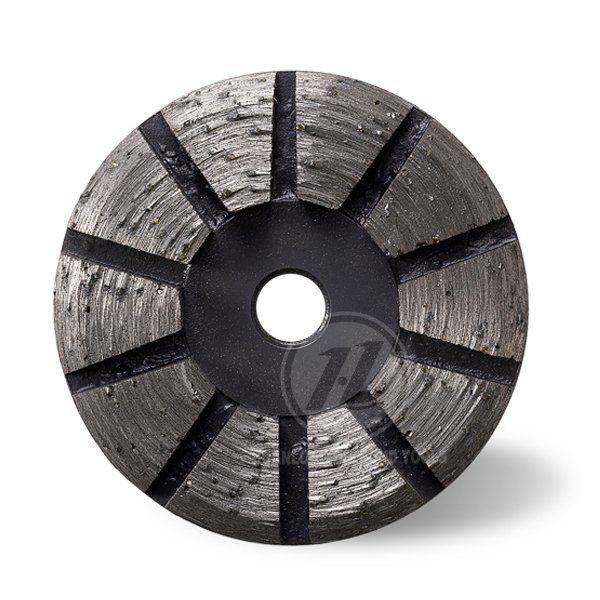

Concrete metal bond diamond puck Size : 76mm
Segment:5T,6T,8T,10T Or customized as requested
Segment height: 8/10/12mm or upon request
Grit: 6#, 16/20#, 30/40#, 60/80#, 120# grit or made as your demand
Bonds Available:Extreme soft /Soft/ Medium/ Hard/ Extreme hard Or customized as requested
Backing system: Fast Change System
Working type: Wet grinding / Dry grinding
Long lifetime
Concrete Grinding Disc Main Uses and Features:
1.Wide Range of Applications: This grinding disc is primarily used for grinding, leveling, and polishing the surfaces of hard non-metallic materials such as concrete, stone, granite, and marble.
2.Efficient Material Removal: The beveled segmented design (such as the 10-segment or 6-segment design shown in the image) has strong grinding power, enabling quick removal of old coatings, adhesives, epoxy resin, and uneven areas on the floor.
3.Reduced Scratches: The beveled design helps minimize scratches during the grinding process, providing a smoother surface finish.
4.Suitable for Dry and Wet Use: The grinding segments with metal bonding allow it to be used in both dry and wet grinding applications. Wet grinding typically helps extend tool life and provides a more aggressive grinding effect.
5.Compatibility: It is usually mounted on angle grinders or large floor grinders for use in large-area applications as well as hard-to-reach areas such as edges and corners.
Note：Please leave your email, our professional person will contact you asap!
