HTC grinding shoes with double Coffin segments are a heavy-duty choice for professional floor preparation and concrete grinding. Designed specifically for the HTC “EZ-change” system, these shoes are the “workhorses” of the industry, balancing aggressive cutting with a refined finish.
Diamond segments have many different kinds of shape: Arrow, Rhomboid, Rectangle, Curved Rectangle, Coffin, Oval, Button, etc. Rounded shape is ideal for achieving a smooth finish and minimizing deep scratching, particularly on uneven floors.
Unlike the standard 2-segment shoes used for general grinding, the 5-round segment configuration is engineered for fast, aggressive material removal and fine surface finishing due to its larger surface area and unique pressure distribution.
PCD diamond floor grinding shoes for concrete and stone. Concrete floor plate is designed to aggressively remove coatings, glues and mastics on concrete floors. The single diamond Button prevents damage to the floor by controlling the depth of the cuts from the PCDs.
Huanlong Double row diamond grinding cup wheel, For fast and aggresive grinding hard material such as concrete, Terrazzo, Engineered Stone, granit, marble and etc.
Email：
contact@hldiamondtools.com

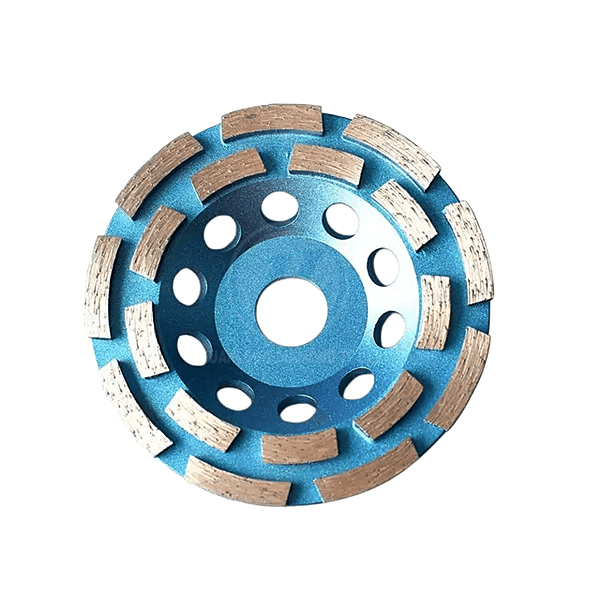

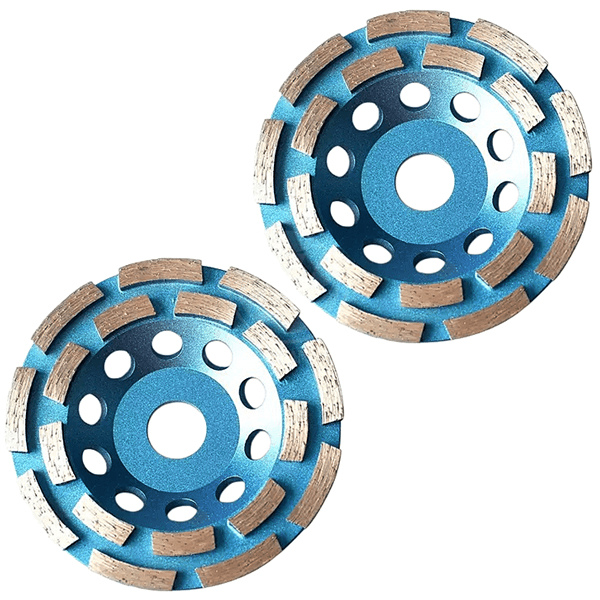

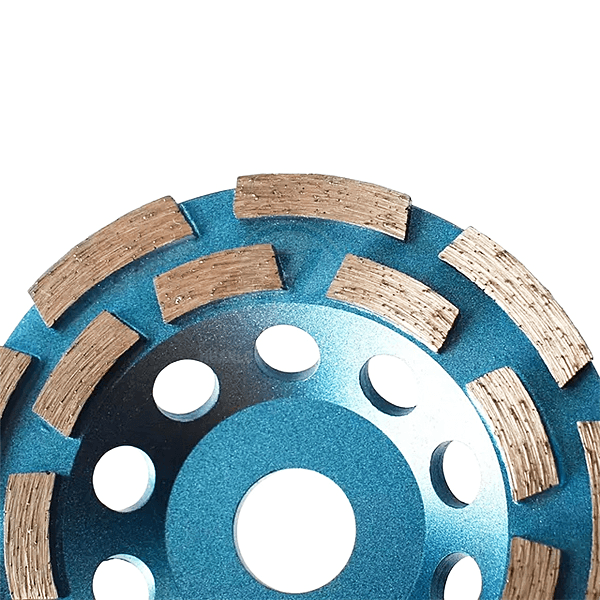

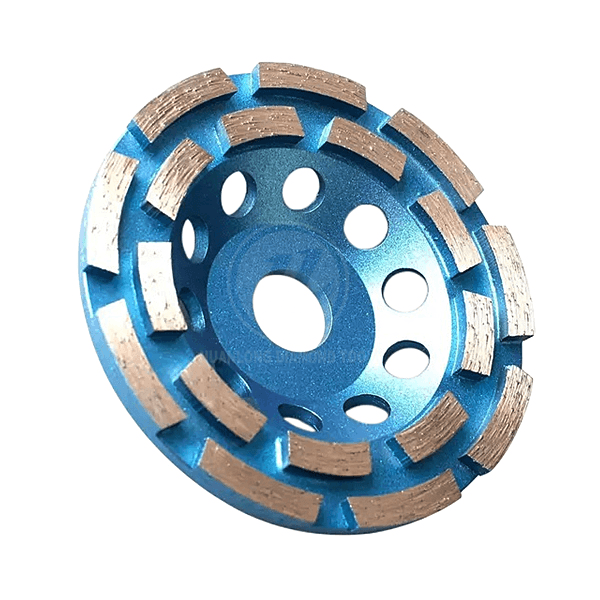

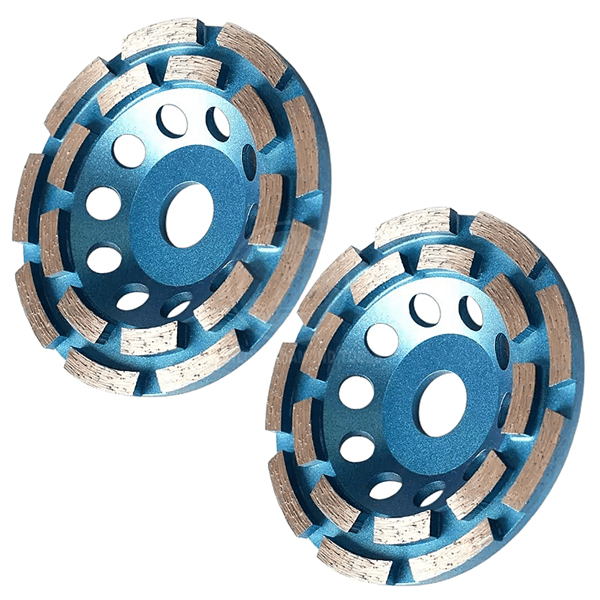

HuanLong Double row diamond grinding cup wheel
Application: Huanlong Double row grinding cup wheel is a professional grade grinding disc for fast grinding hard materials such as concrete, Terrazzo, Engineered Stone, granit, marble and etc. Double row segment placement for achieve smooth grinding result.
Available on standard 22.23mm bore, M14 Thread, 5/8″-11 Thread, perfect for fitting conmmon brand angle grinders for on site grinding jobs.
Various types of base cup wheel optionsavailable for different types of angle grinders, please contact us for availability and detail.
Size: 100mm/4″, 115mm/4.5″,125mm/5″, 180mm/7″, or upon request.
Segment number: 3/6/9 or upon request
Grit: 16#, 25#/,40#,60#,80#, 120# or upon request
Segment bond Soft, Medium, Hard or upon request.
Bore size: 22.23mm, M14 ,5/8″- 11 or upon request
Working type: Dry grinding / Wet grinding
Note：Please leave your email, our professional person will contact you asap!
Keywords: CW505、CW507、Class B water mill、7-inch turbine 30
