Diamond Grinding Plugs3 Inch D76mm Diamond Grinding Disc/pucks Concrete Grinding Wheel for Concrete and Terrazzo Floor / Metal-bond Beveled Edge Grinding Disc metal bond 10 Segments

Diamond grinding plugs, which are industrial tools used with floor grinding machines to grind, level, and polish hard, non-metallic surfaces like concrete, terrazzo, and marble. They are effective for removing coatings, adhesives, and achieving specific surface profiles

SKU HL-pucks3 Category

Email:

contact@hldiamondtools.com

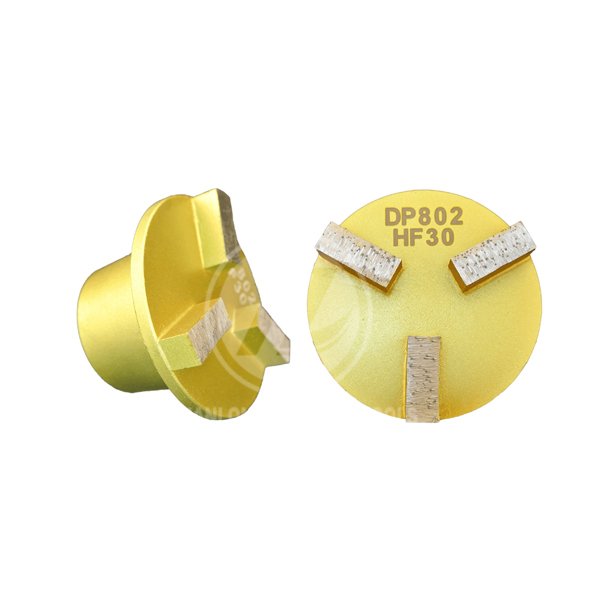

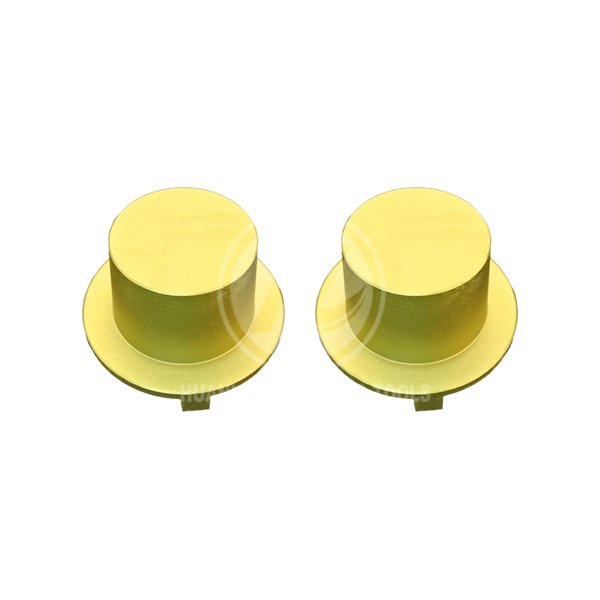

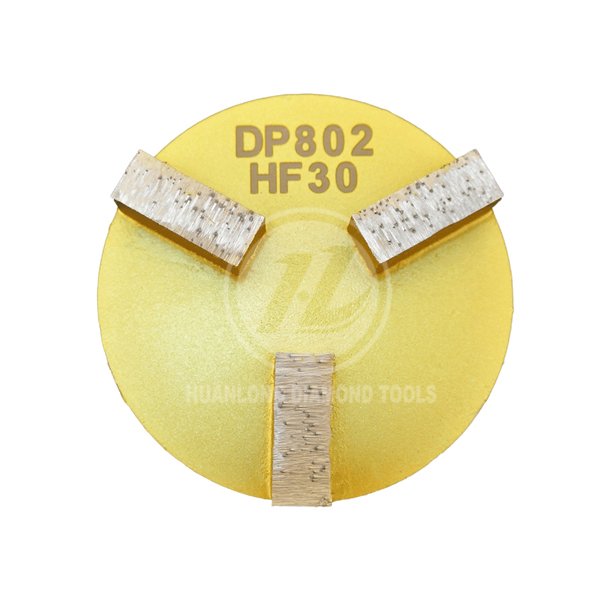

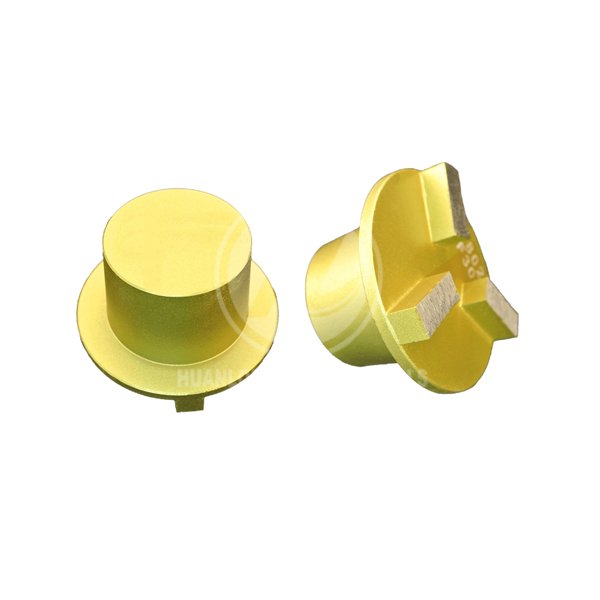

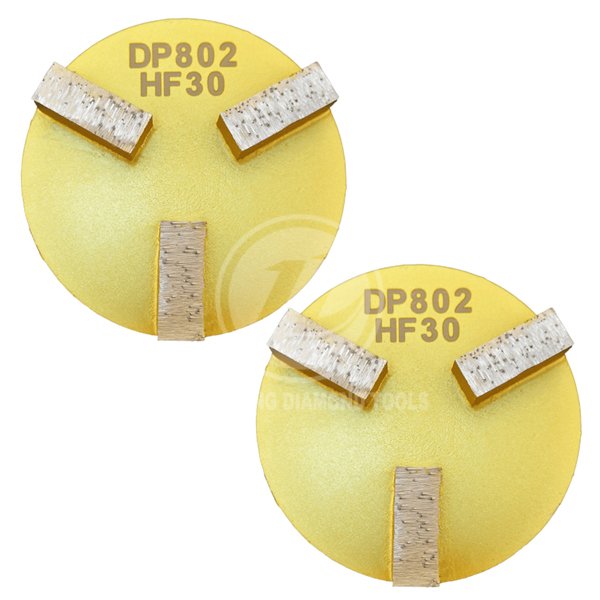

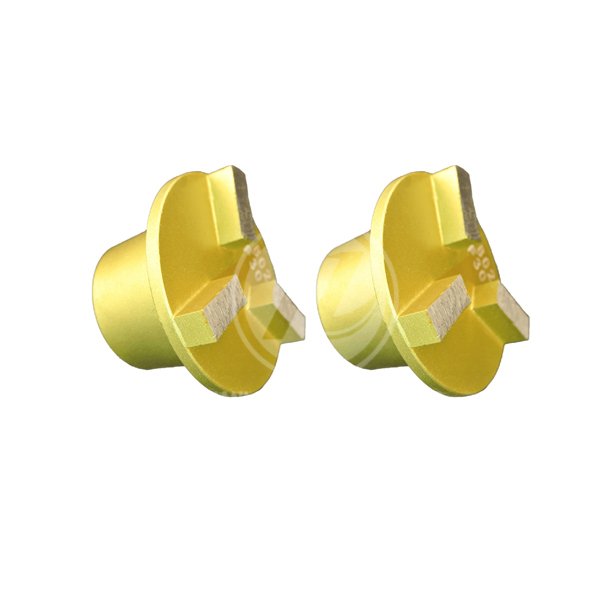

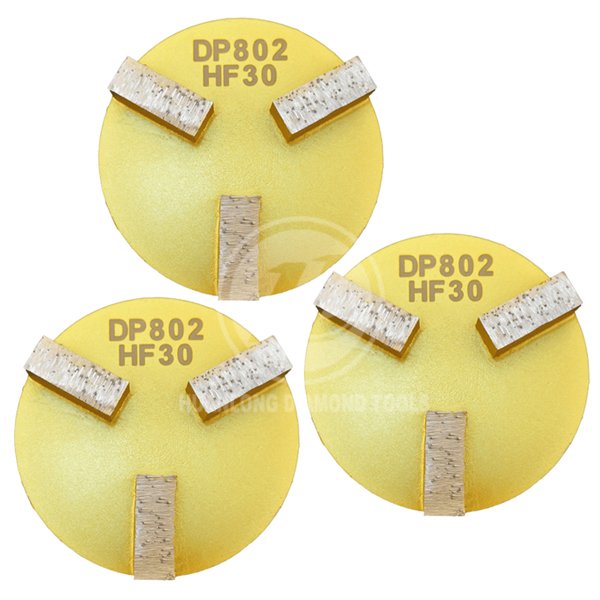

76mm Diamond grinding plugs pucks concrete coating removal tools aggressive long lifespan high quality
Rectangular Segmented Plugs are general-purpose plugs with multiple segments ( 5, 8, or 10 segments) used for a wide range of applications from aggressive grinding to finer polishing, depending on the grit and bond. Foundation Diamond Tool produces 3″ beveled 10-segment plugs designed to reduce operator stress and provide a wider grinding path.

The Standard Size : 76mm
Segment:5T,6T,8T,10T Or customized as requested
Segment height: 8/10/12mm or upon request
Grit: 6#, 16/20#, 30/40#, 60/80#, 120# grit or made as your demand
Bonds Available:Extreme soft /Soft/ Medium/ Hard/ Extreme hard   Or customized as requested
Backing system: Fast Change System
Working type: Wet grinding / Dry grinding
Long lifetime

Key Considerations
When choosing a diamond grinding plug, consider the following factors:
Material Hardness: Soft-bond diamonds are best for harder materials to ensure continuous diamond exposure, while hard-bond diamonds are suited for softer materials to ensure longevity.
Grit Size: Lower grit numbers (e.g., 16 or 30/40 grit) are used for more aggressive grinding and surface preparation, while higher grits (e.g., 80 or 120/150 grit) are for finer finishes and polishing.
Application: Select the segment shape and type (metal bond vs. PCD) based on whether you are grinding bare concrete, removing a light coating, or stripping a thick, tough adhesive
