SASE PCD with 5×1/4 segments is a specialized concrete grinding tool designed for aggressive coating removal. It features five “quarter-round” Polycrystalline Diamond (PCD) chunks mounted on a plate, typically using the SASE Quick Change (QC) attachment system.
Fast removal of thick coating such as old glue, epoxy, paint, in particular thick resins.
Creates slip-resistant finish on granite and marble, breaks down coatings prepares surface for application of new coating overlay, enhances the combination of floor and new layer material.
Redi-Lock with 3×1/4 PCD & 1 Bar Segment is a precision removal tool that combines the aggressive “shredding” power of multiple PCD chips with the stability of a metal-bond diamond bar.It is arguably the most balanced tool in the Redi-Lock PCD family, designed specifically to avoid the “all-or-nothing” aggressiveness of larger PCDs.
Huanlong 2 Parallel segments Lavina grinding shoesare specifically designed for high-efficiency floor prep and aggressive coating removal.
Magnetic grinding shoes with three round segments are readily available for use on concrete and terrazzo floors. These tools are often used for medium to fine grinding, offering durability and a smooth finish.
Email：
contact@hldiamondtools.com

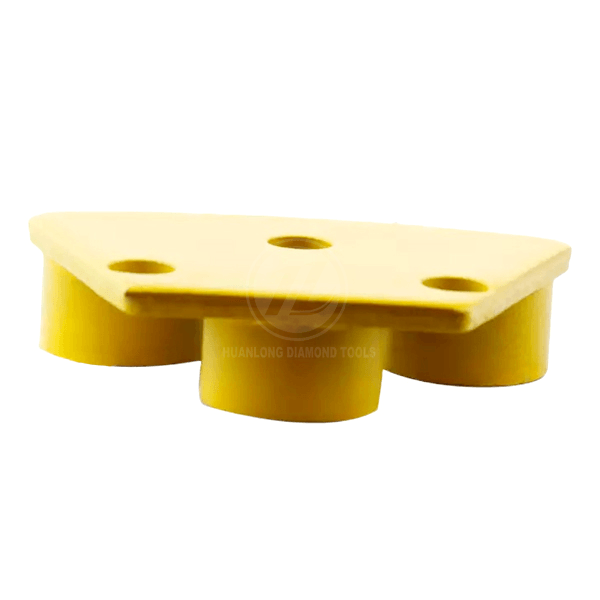

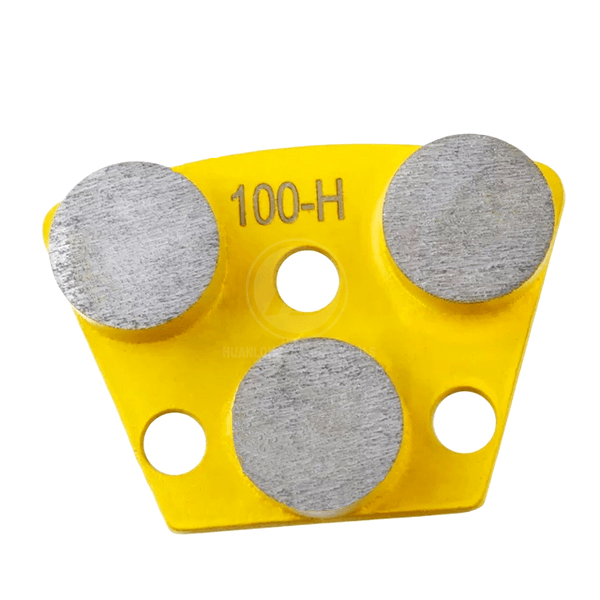

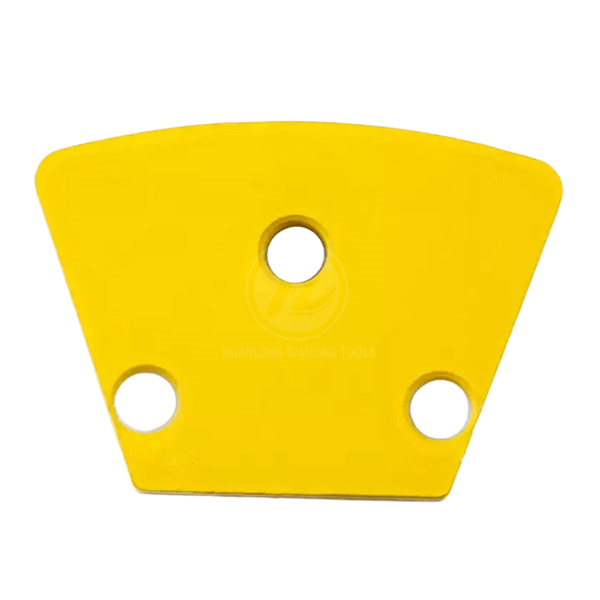

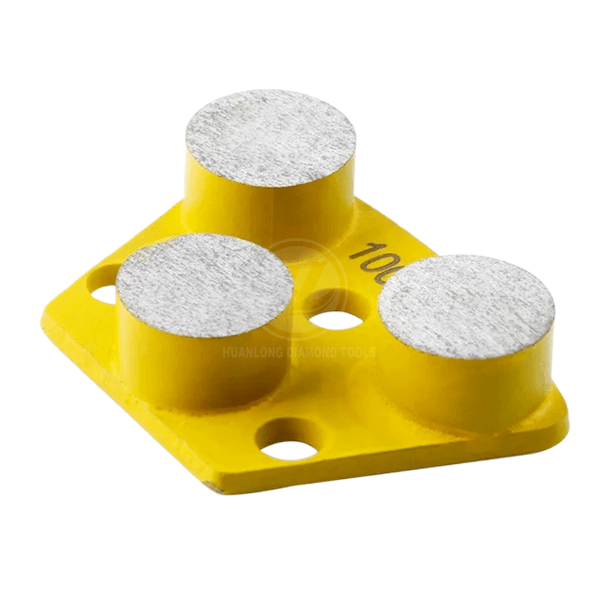

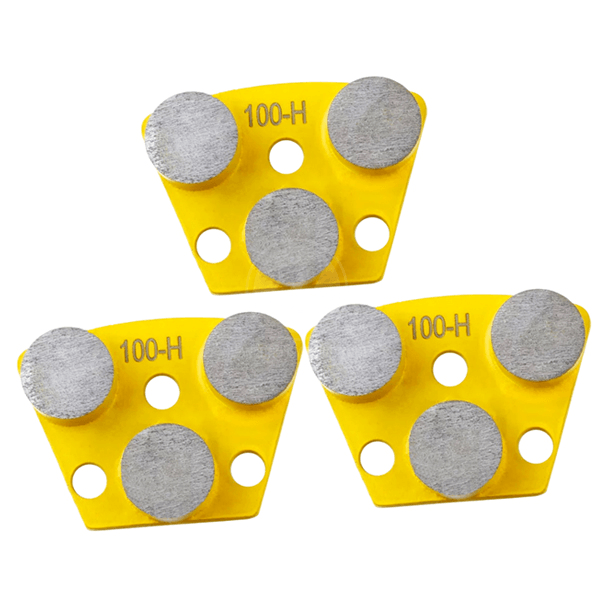

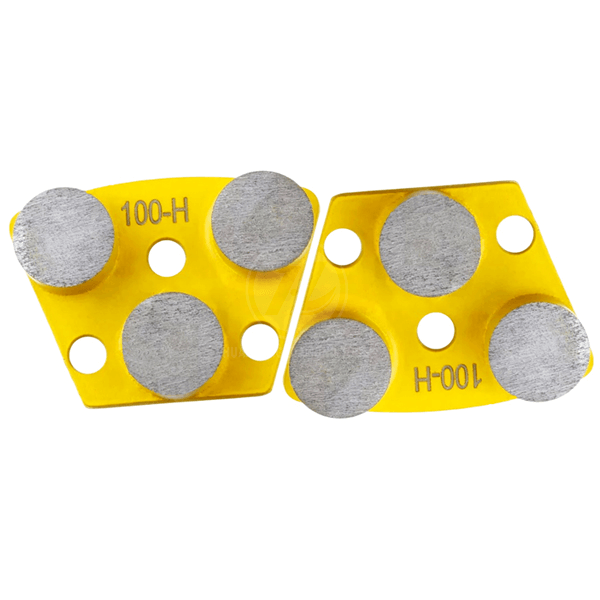

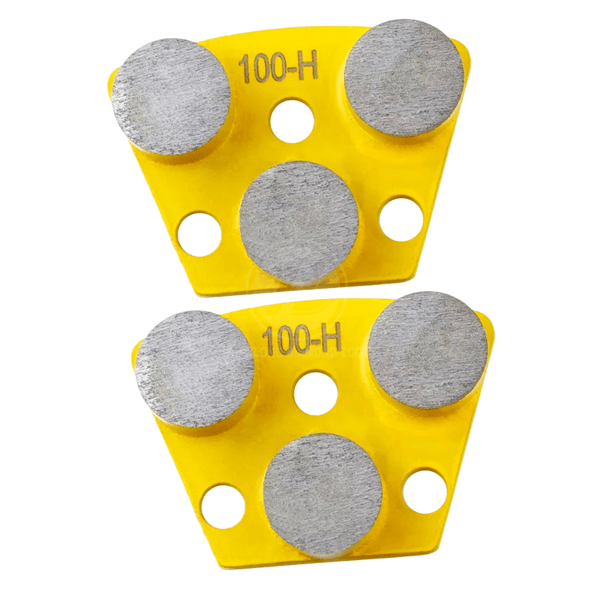

Trapezoid 3-Button Grinding Disc is specifically designed with a “Triple Round” segment configuration (diameter 25x12mm) for concrete and terrazzo floors. It comes in a wide range of grits and bond types, allowing customization for specific floor hardness.
Specifications
Connection: allowing for quick, Magnetic attachment.
Application: Suitable for grinding concrete, terrazzo, and stone floors. Often used for fine grinding or floor preparation before polishing.
Segment Shape: Round (also known as “round button” or “circle”). This shape offers more durability than other shapes (like long/arrow segments) but is less aggressive.
Number of Segments: Three segments per shoe, which balances grinding efficiency and longevity.
Bond Hardness: Available in various metal bonds including extra soft, soft, medium, hard, and extra hard, to match the hardness of the concrete being ground.
Grit Range: from coarse (e.g., 6#, 16#, 25#) for aggressive material removal to very fine (e.g., 150#, 220#, 400#) for a smooth finish.
Usage: Can be used for both wet and dry grinding applications.
Note：Please leave your email, our professional person will contact you asap!
