The HTC diamond grinding disc is specifically designed for concrete floor grinders. Used for grinding, leveling concrete, terrazzo, and stone floor surfaces.Highly efficient in removing old coatings, adhesive residues, epoxy resins, and paints, etc.
PRODUCTS
HOT PRODUCTS
Metal Bond Rectangular diamond segments grinding segments are used in heavy-duty cutting and grinding tools for materials like marble, concrete, and limestone, prized for their cutting efficiency and durability. Their simple, flat shape maximizes the contact area with the material during a straight push-pull cutting motion, ensuring the full utilization of the diamond particles.
1/4 round PCD coatings removal tool scraper with 1pc Bar is designed for removing all types of stubborn coatings, such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubbery material up to 1-3mm
Diamond segment bar is the most common shape of diamond grinding segment used in concrete grinding plate. With different grits, it can be used for coarse grinding, medium grinding, and fine grinding. Trapezoid PCD is easy and quick set up of diamond tools, the universal three holes fit most plates. Available for a variety of machine manufacturers.
Double Arrow segments in HTC EZ change plate For HTC grinder, For Concrete Terrazzo and Stone Surface Coarse Grinding Arrow Removal Tools

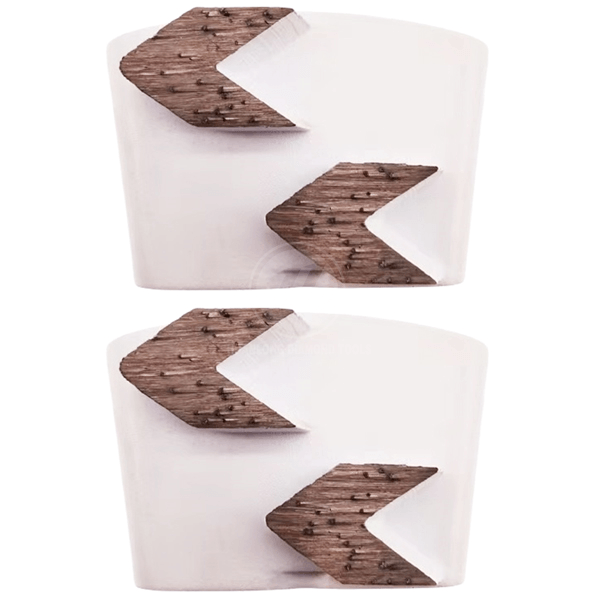

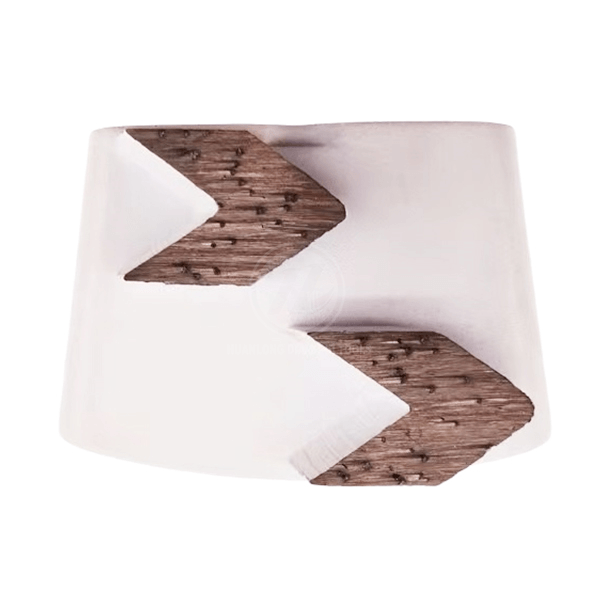

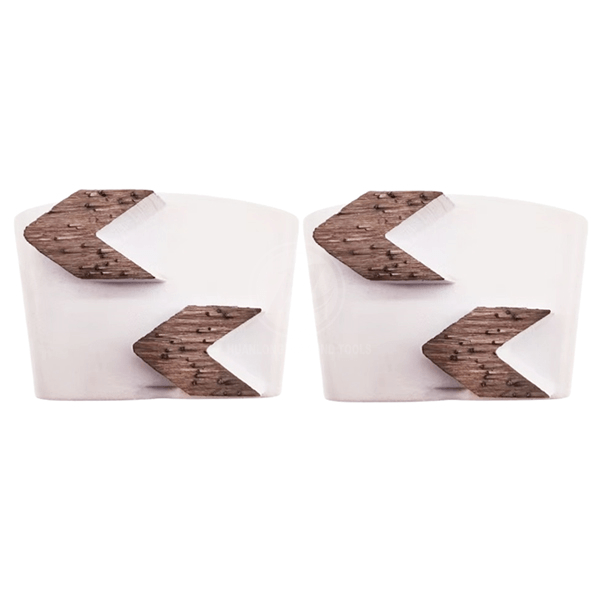

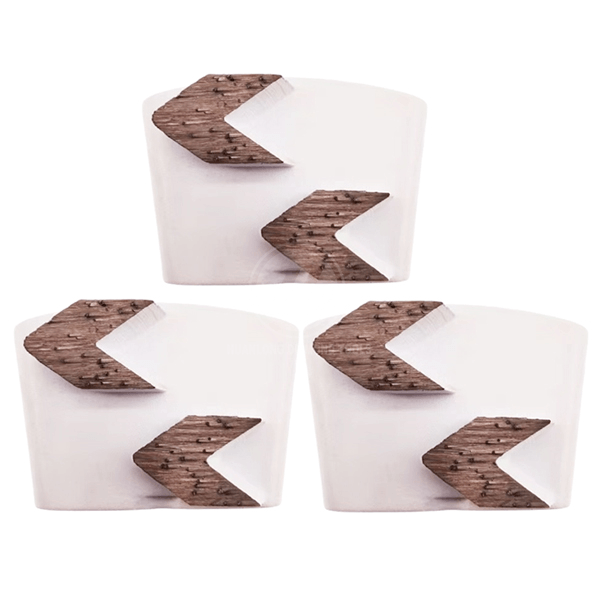

HTC Double arrow grinding shoes are metal-bonded diamond grinding tools specially designed for HTC floor grinding machines. They have two arrow-shaped diamond segments, which are used for efficient grinding of concrete, terrazzo, and removing coatings and adhesives.
Email：
contact@hldiamondtools.com
HTC double arrow grinding shoes are high-performance diamond tools designed for Ezy-Change HTC floor grinders, specializing in fast, aggressive grinding of concrete, leveling, and removing coatings like epoxy or glue. Featuring two arrow-shaped segments, they offer efficient, long-lasting performance, available in various bonds (super soft to hard) for different concrete hardness levels.
Product Details
• Application: These grinding shoes are mainly used for surface treatment of concrete, leveling, the first step of polishing, and removal of thin coatings and adhesives.
• Compatibility: They adopt an “easy change” sliding design, which can be quickly installed onto the HTC floor grinding machine. Some models are also compatible with Husqvarna machines.
• Adhesive types: To match different hardnesses of concrete, there are various metal adhesives available, including ultra-soft, soft, medium, hard, and ultra-hard.
◦ Soft adhesives are suitable for hard concrete (for grinding to expose new diamond crystals).
◦ Hard adhesives are suitable for soft concrete (to prevent diamond crystals from falling off prematurely).
◦ Neutral adhesives are the most common and popular choice, suitable for most common concrete types.
• Particle size selection: Multiple particle sizes (Grit #) are available, ranging from coarse grinding to fine grinding, including #6, #16, #30/40, #60/80, #100/120, #150, #200, etc.
• Design: The double arrow segmented design aims to achieve rapid cutting and active material removal while maintaining a consistent finish.
