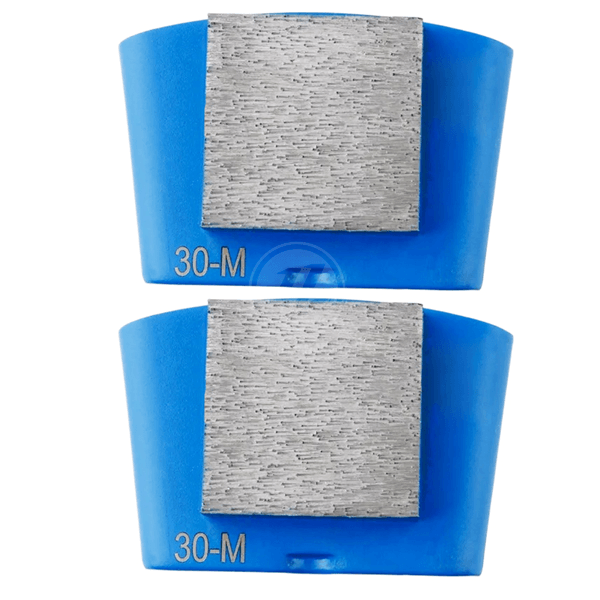

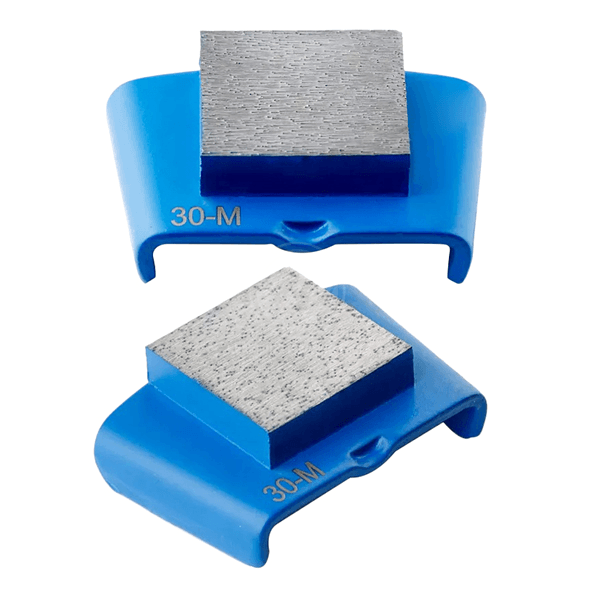

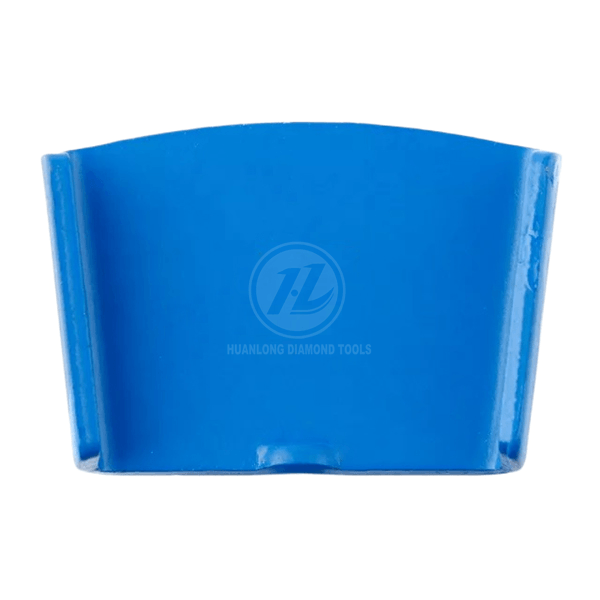

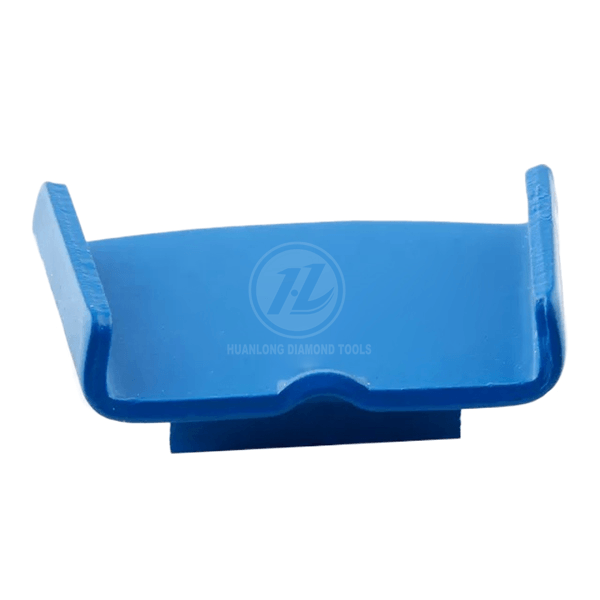

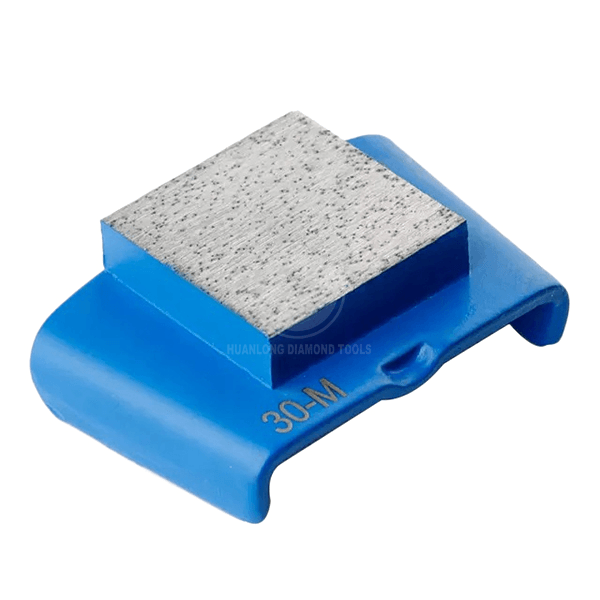

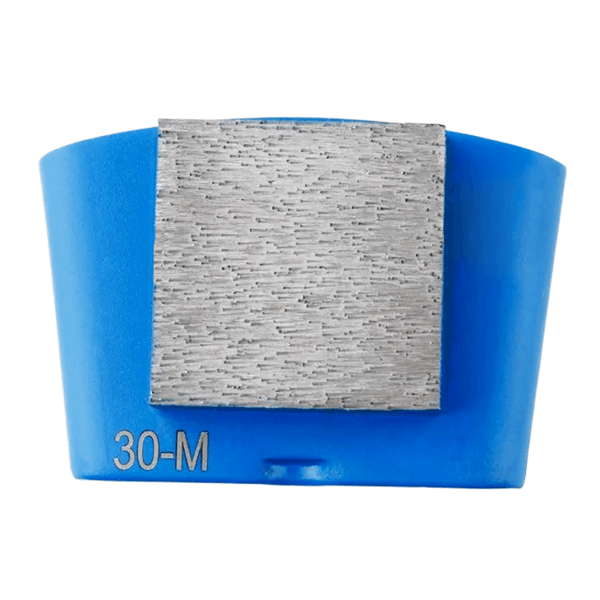

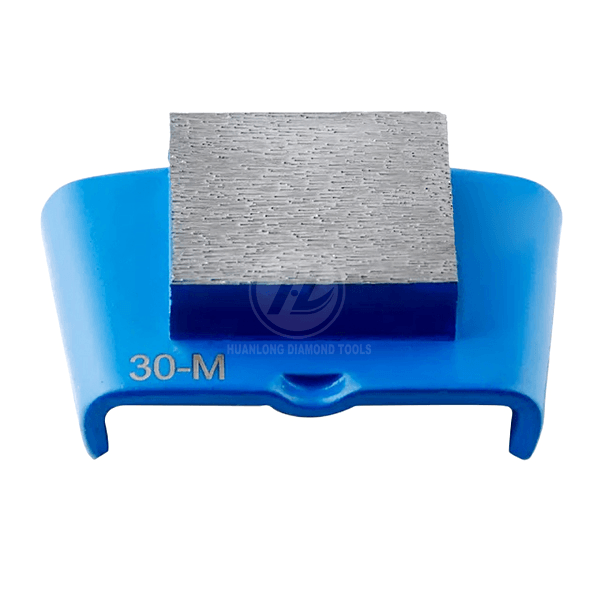

HTC diamond grinding shoes featuring one big square segment are aggressive, specialized tools designed for heavy-duty concrete floor prep, coating removal, and rapid stock removal, typically utilizing the EZ-change system.
Product Details and Features
• Design and Compatibility: These shoes use the patented “EZ Change” or “Quick Change” system, allowing them to be quickly installed and removed by hand on HTC floor grinders without extra tools.
• Segment Specifications: The single large square segment design, often measuring around 40X40X12mm (depending on the exact product), is designed to offer long life and aggressive grinding performance.
• Material: They are metal-bond diamond grinding tools, made with high-concentration diamond segments. The bond hardness (soft, medium, hard, etc.) is selected based on the hardness of the concrete floor being ground to ensure optimal performance and prevent glazing or excessive wear.
• Application: The “one big square segment” style is often used for coarse grinding, surface preparation, and the removal of thin coatings, adhesives, or rain-damaged concrete surfaces. The large single segment is generally more aggressive than multi-segment options.
• Grit: Available in various grits, including coarse options like 16#, 25#, and 30/40#, to suit different stages of the grinding process.
