The 180mm Crossover PCD crossover diamond grinding cup wheel is designed for super fast removing hard and tacky surface coating including urethane epoxy, paint, glue, pool deck coating, waterproofing membrane, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
Redi-Lock with 3 Half PCDs and One Button is a specialized, high-performance configuration designed for the rapid removal of coatings (up to 3mm thick) while maintaining an extremely high level of stability.
Fast removal of thick coating such as old glue, epoxy, paint, in particular thick resins.
Creates slip-resistant finish on granite and marble, breaks down coatings prepares surface for application of new coating overlay, enhances the combination of floor and new layer material.
Double Pin grinding shoes is preferred for its balance between aggressive cutting and a smooth finish, have high strength, excellent wear resistance, and a low friction coefficient. Metal bond diamonds high grinding efficiency and low wear.

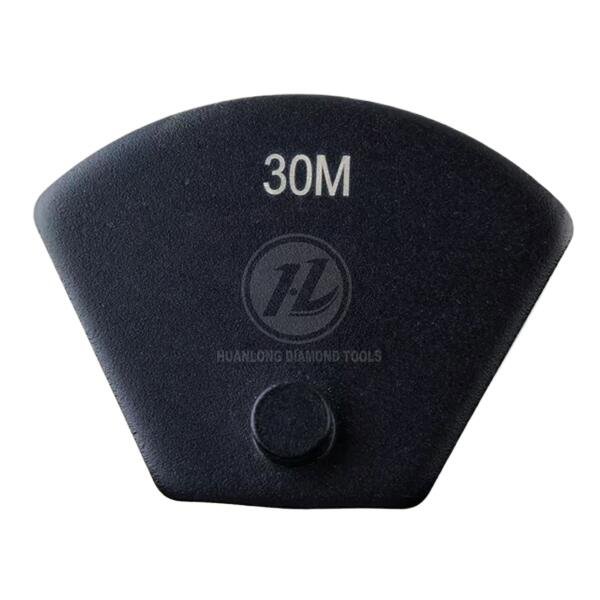

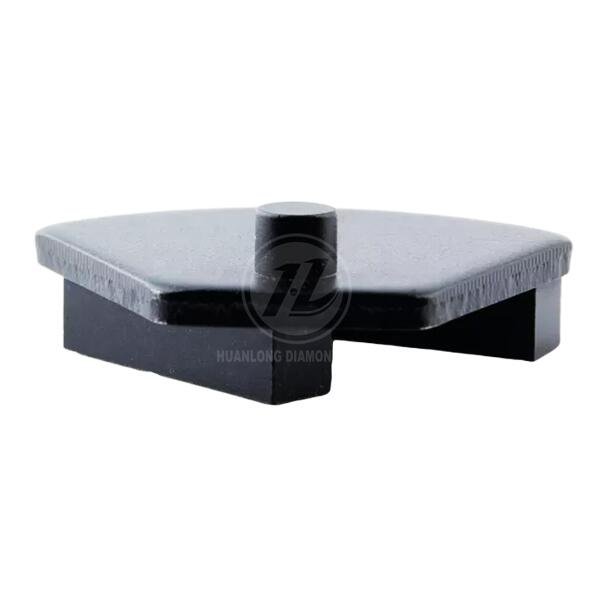

Single Pin grinding shoes is preferred for its balance between aggressive cutting and a smooth finish, have high strength, excellent wear resistance, and a low friction coefficient. Metal bond diamonds high grinding efficiency and low wear.
Email：
contact@hldiamondtools.com

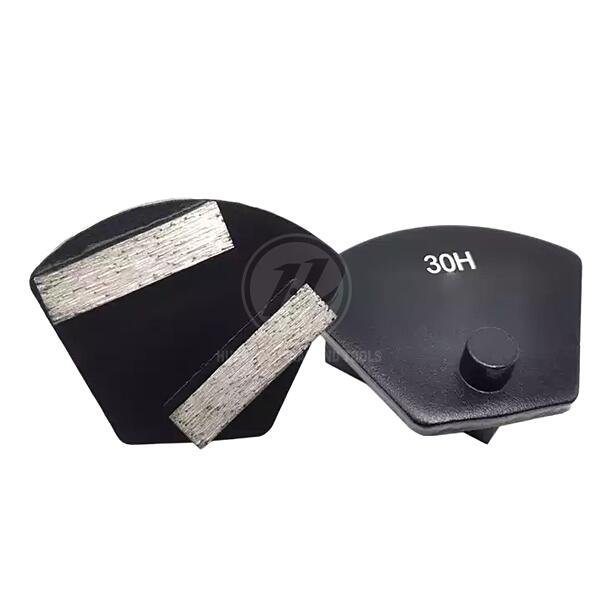

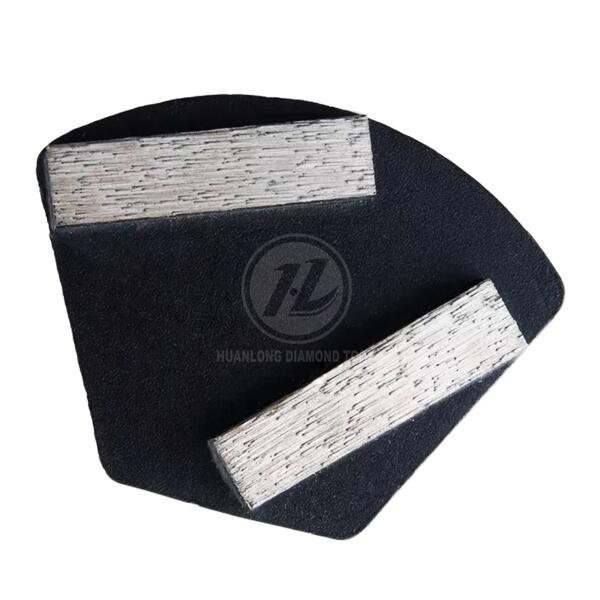

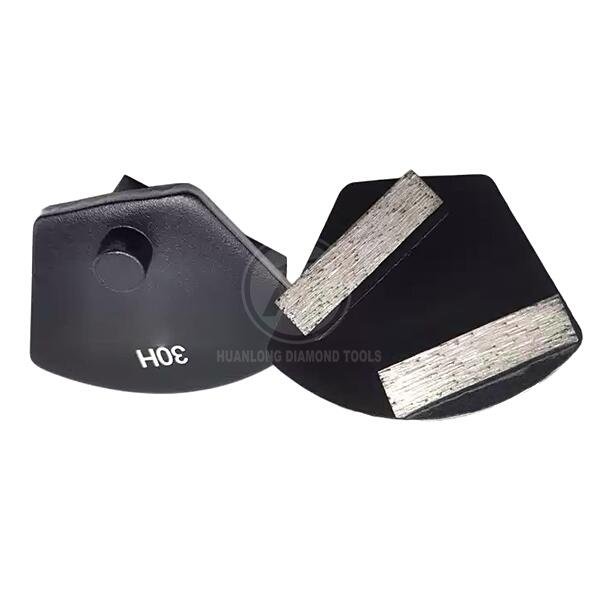

The fan-shaped single pin diamond grinding block is a universal type of floor grinding shoes. They are suitable for most machine which conversion disc hole size match with metal bond. Husqvarna, HTC, Klindex, Terrco, Blastrac is usually have a standardized connection. This grinding block can be directly installed through an adapter conversion disc and is used for fine grinding in high-end flooring projects.
1. Applications
These shoes are primarily used for:
• Coarse Grinding: Removing the top layer of concrete to expose aggregate.
• Coating Removal: Efficiently stripping thin layers of epoxy, paint, glue, or mastic.
• Surface Leveling: Flattening uneven concrete slabs or preparing floors for polishing.
2.Specification
Segmen Size: 40x10x12 / 40x12x12mm
Segment Qty. :1or 2
Color: customised
3.Segment shape: Arrow, Rhomboid, Rectangle, Curved Rectangle, Coffin, Oval, Button, PCD, etc. Special shape or specification can be customised as request (Minimum Order quantity may applied)
4.Metal bond Hardness: Super soft/Extra Soft/Soft/Medium/Hard/Extra Hard
Grit: 6#, 16#, 25/30#, 50/60#, 70/80#, 100#/120#
Segment height: 8/10/12mm or upon request
5.Working type: Dry grinding / Wet grinding
Note：Please leave your email, our professional person will contact you asap!
