Metal Bond Rectangular diamond segments grinding segments are used in heavy-duty cutting and grinding tools for materials like marble, concrete, and limestone, prized for their cutting efficiency and durability. Their simple, flat shape maximizes the contact area with the material during a straight push-pull cutting motion, ensuring the full utilization of the diamond particles.
Redi Lock adapter plates are primarily used in concrete floor grinding to enable the use of Husqvarna Redi-Lock diamond tools on grinding machines from other brands like HTC, Scanmaskin, or Lavina. They save costs by eliminating the need to purchase brand-specific tooling for every machine.
Magnetic grinding shoes featuring three Arrow segments are high-performance tools designed for the M9 Magnetic system. By using three segments instead of one or two large ones, these shoes increase the number of “leading edges,” which allows for a more aggressive cut while maintaining a smooth finish.
Double 1/2 PCD Diamond Trapezoid Grinding Disc With 1 Button Excellent for all kinds of hard-to-remove coatings, adhesives and screeds, such as epoxy, glues and paint. Suitable for Iron Horse, SASE, Xingyi, Diamatic Floor Grinder
Double Pin grinding shoes is preferred for its balance between aggressive cutting and a smooth finish, have high strength, excellent wear resistance, and a low friction coefficient. Metal bond diamonds high grinding efficiency and low wear.
Email：
contact@hldiamondtools.com

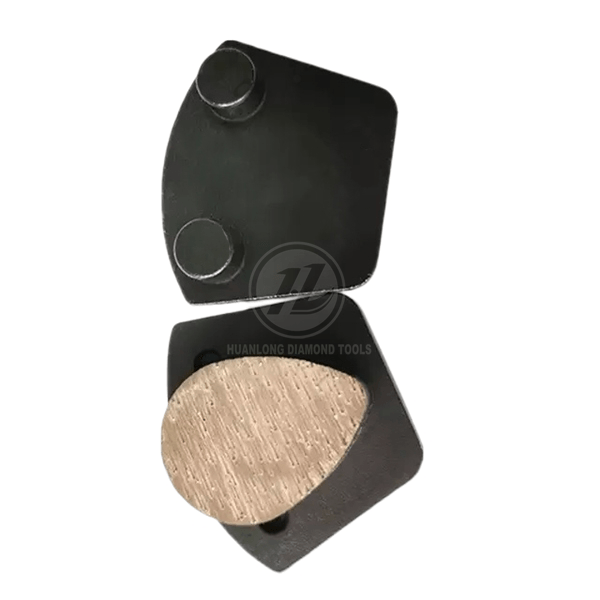

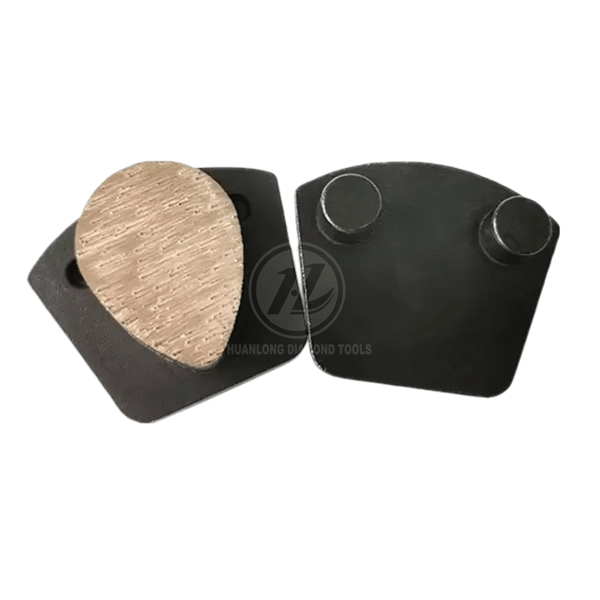

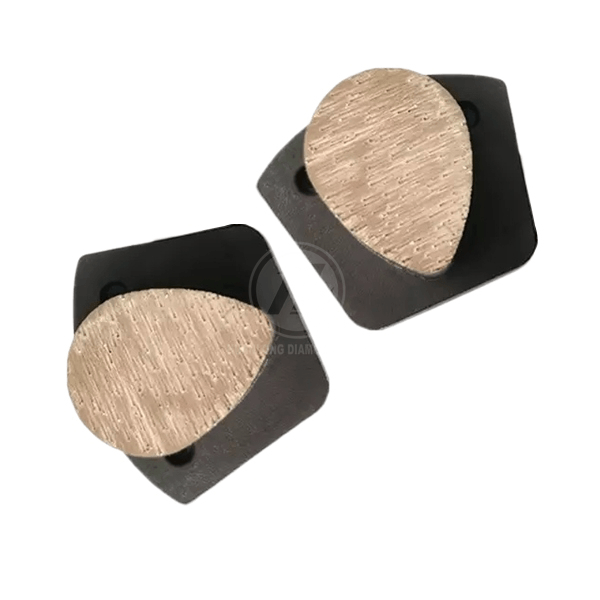

The fan-shaped double pin diamond grinding block is a universal type of floor grinding shoes. They are suitable for werkmaster grinding machine. This grinding block can be directly magnetic fitting through an adapter conversion disc and is used for fine grinding in high-end flooring projects.
1. Applications
These shoes are primarily used for:
• Coarse Grinding: Removing the top layer of concrete to expose aggregate.
• Coating Removal: Efficiently stripping thin layers of epoxy, paint, glue, or mastic.
• Surface Leveling: Flattening uneven concrete slabs or preparing floors for polishing.
2.Specification
Segmen Size: 30*20MM
Segment Qty. :1
Color: customised
3.Segment shape: Arrow, Rhomboid, Rectangle, Curved Rectangle, Coffin, Oval, Button, PCD, etc. Special shape or specification can be customised as request (Minimum Order quantity may applied)
4.Metal bond Hardness: Super soft/Extra Soft/Soft/Medium/Hard/Extra Hard
Grit: 6#, 16#, 25/30#, 50/60#, 70/80#, 100#/120#
Segment height: 8/10/12mm or upon request
5.Working type: Dry grinding / Wet grinding
Note：Please leave your email, our professional person will contact you asap!
Keywords: CW505、CW507、Class B water mill、7-inch turbine 30
