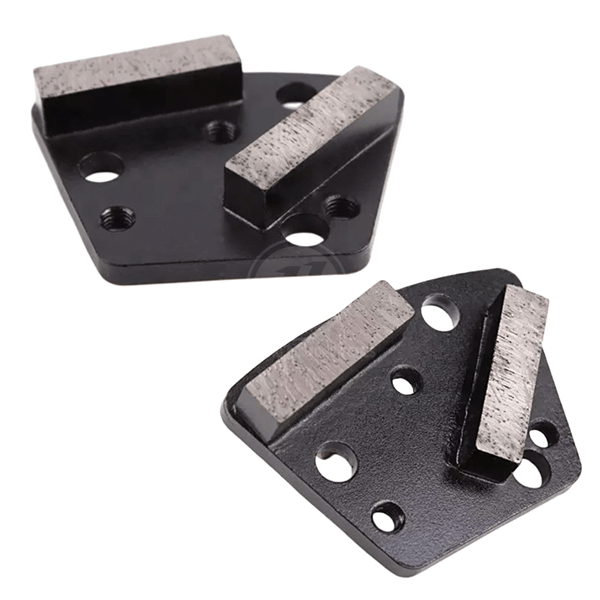

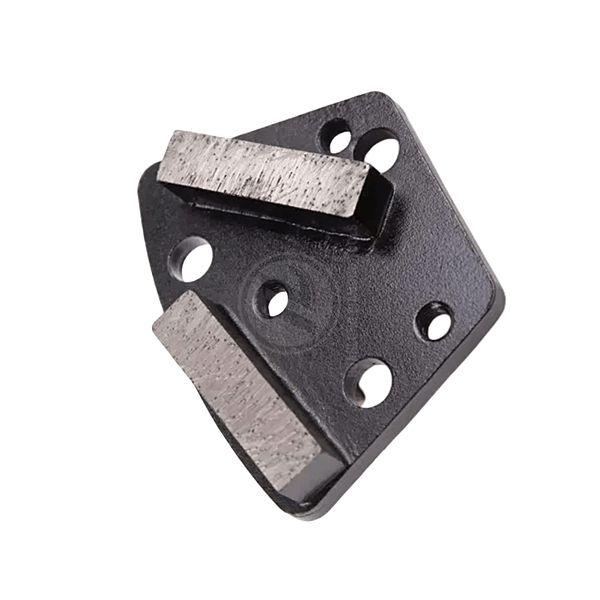

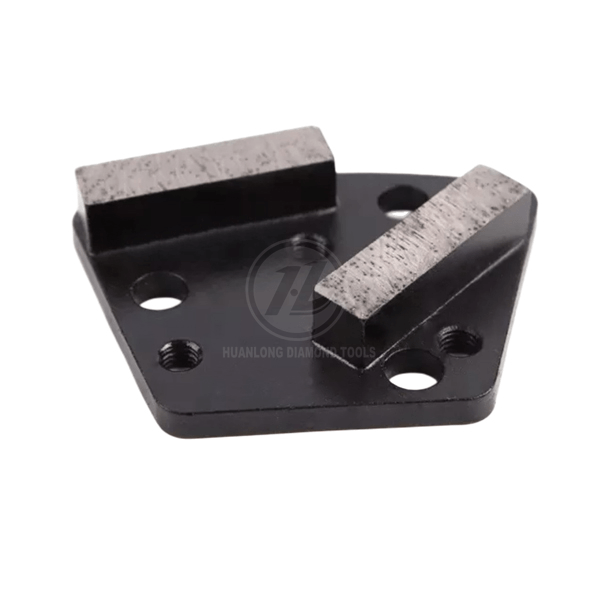

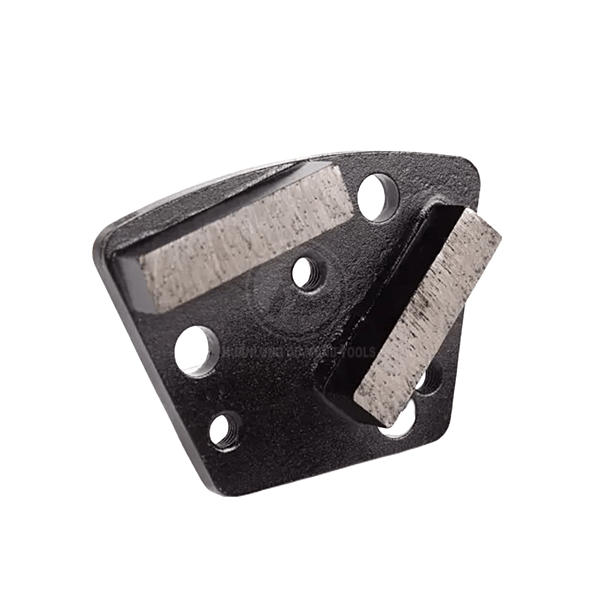

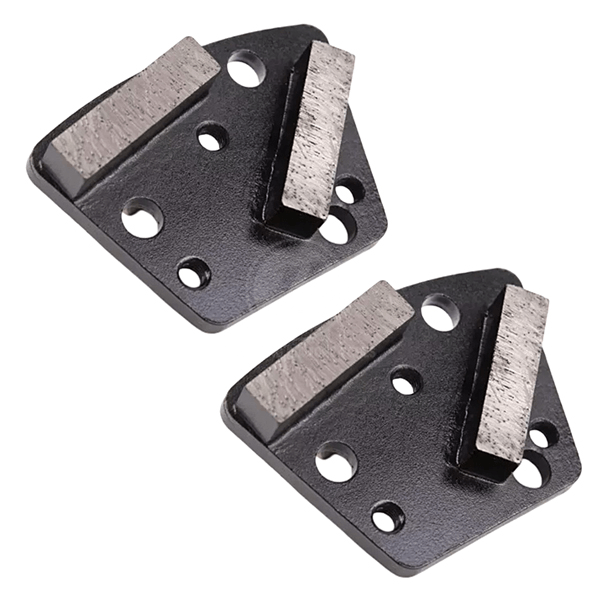

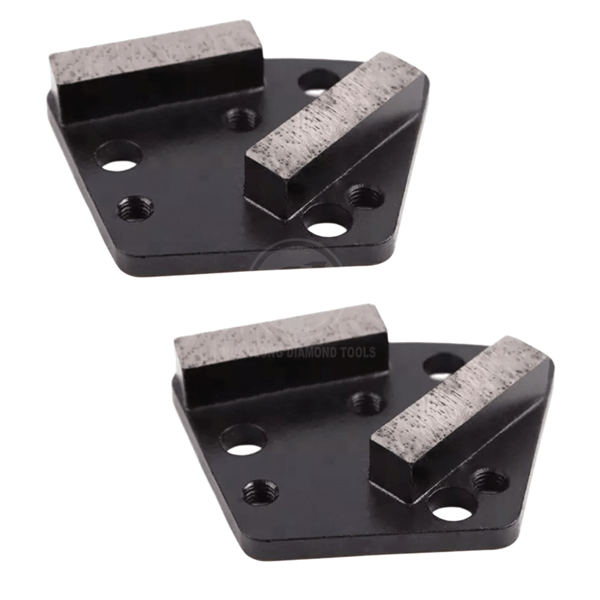

Blastrac Diamond Segments Trapezoid Six holes Grinding Disc 2 x Rectangular Segments metal bond Used for grinding, leveling concrete, terrazzo, and stone floor surfaces.

Trapezoid Diamond Grinding Shoe is mainly used for grinding and refurbishing concrete and terrazzo floors. and can also be used to remove paint, glue, epoxy resin and floor coatings.

SKU METAL BOND 29 Category

Email:

contact@hldiamondtools.com

Diamatic grinding tools with Double Rectangular Segments are high-performance diamond tools designed for Blastrac floor grinders, specializing in fast, aggressive grinding of concrete, leveling, and removing coatings like epoxy or glue.

Features:
Design: A trapezoidal base with two long rectangular diamond-shaped cutting heads (grinding blocks) are welded on the top. This design helps to balance the pressure during grinding and improve work efficiency.
• Connection: These grinding discs are usually fixed by bolts (Bolt-on) or quick-change systems. The base has multiple installation holes, which can be compatible with various brands of floor grinders, such as ASL, Blastrac, Sase, Husqvarna, etc.
Segment shape: Triangle, Arrow, Rhomboid, Rectangle, Curved Rectangle, Coffin, Oval, Button, PCD, etc.  Special shape or specification can be customised as request (Minimum Order quantity may applied)

Metal bond Hardness: Super soft/Extra Soft/Soft/Medium/Hard/Extra Hard

Grit: 6#, 16#, 25/30#, 50/60#, 70/80#, 100#/120#

Working type: Dry grinding / Wet grinding

Segment height: 8/10/12mm or upon request

Note:Please leave your email, our professional person will contact you asap!
