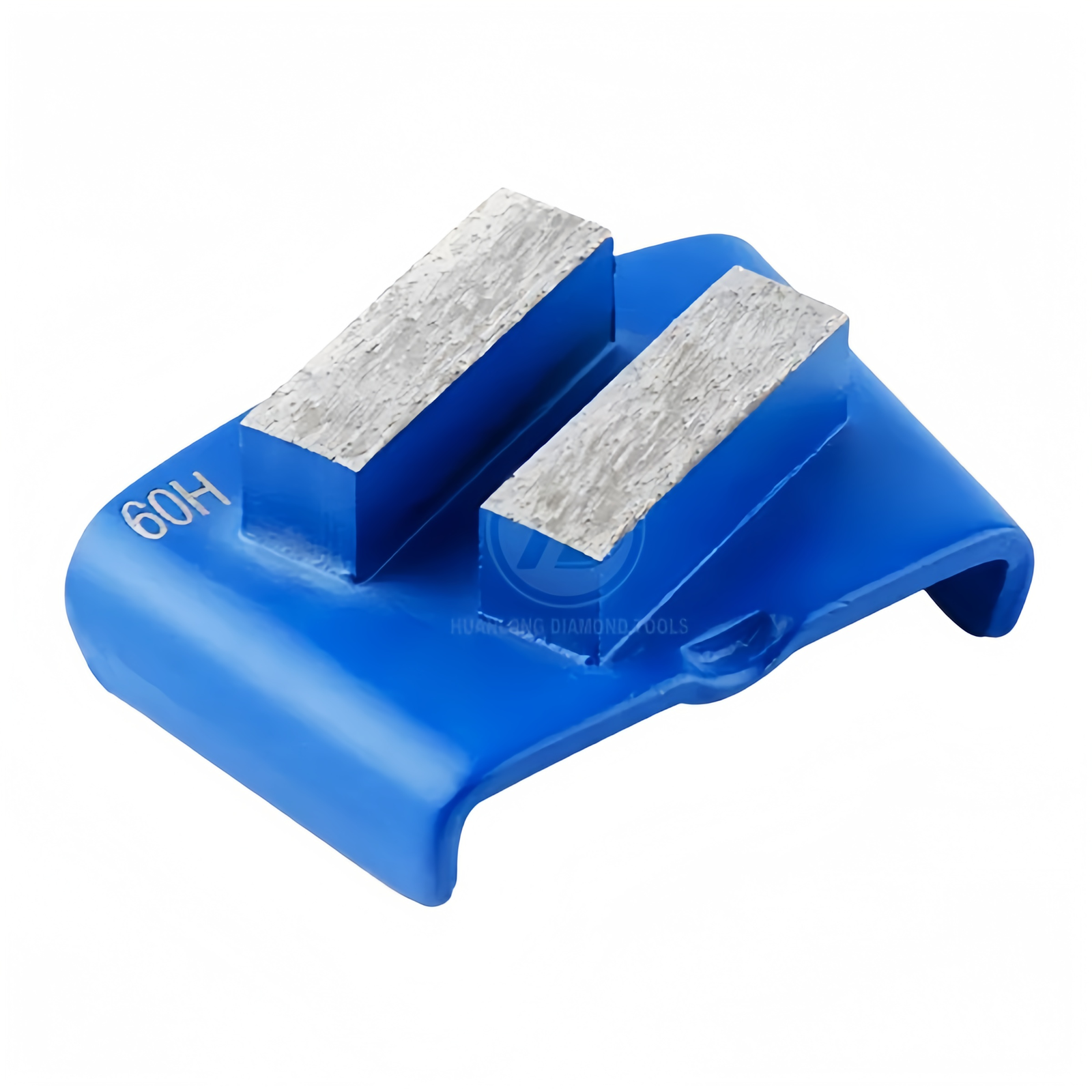

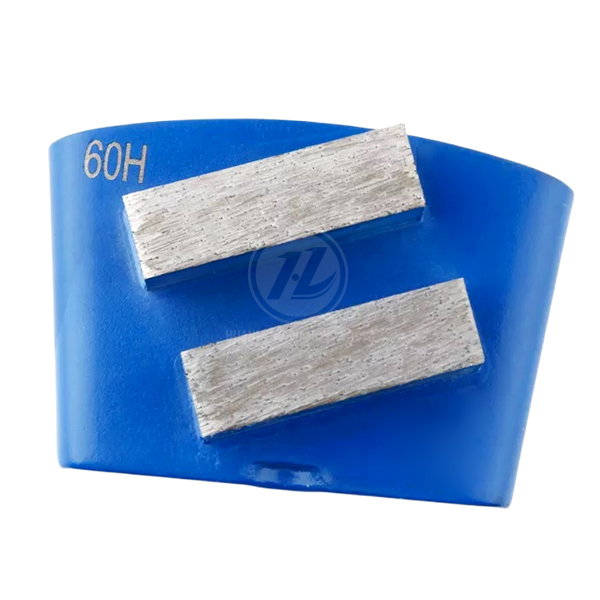

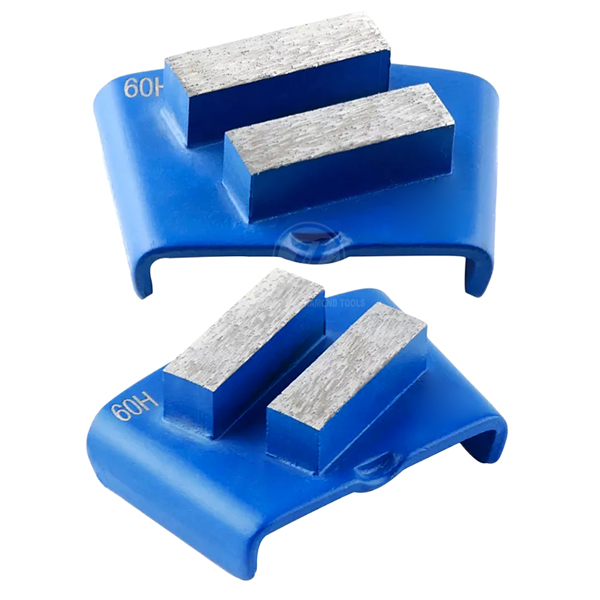

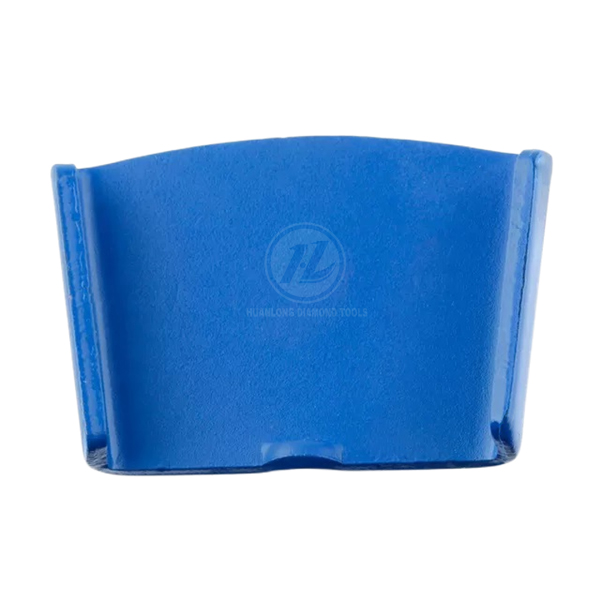

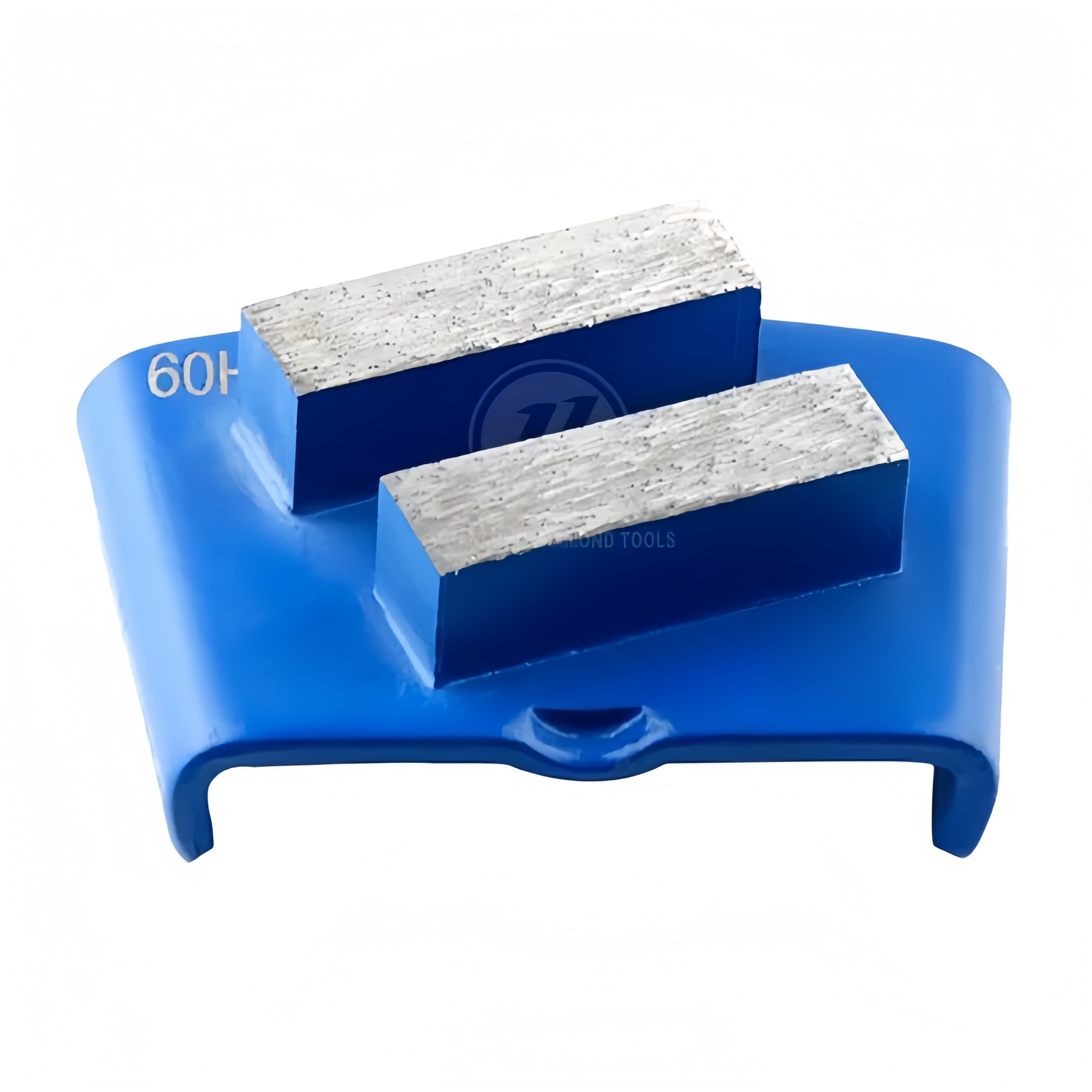

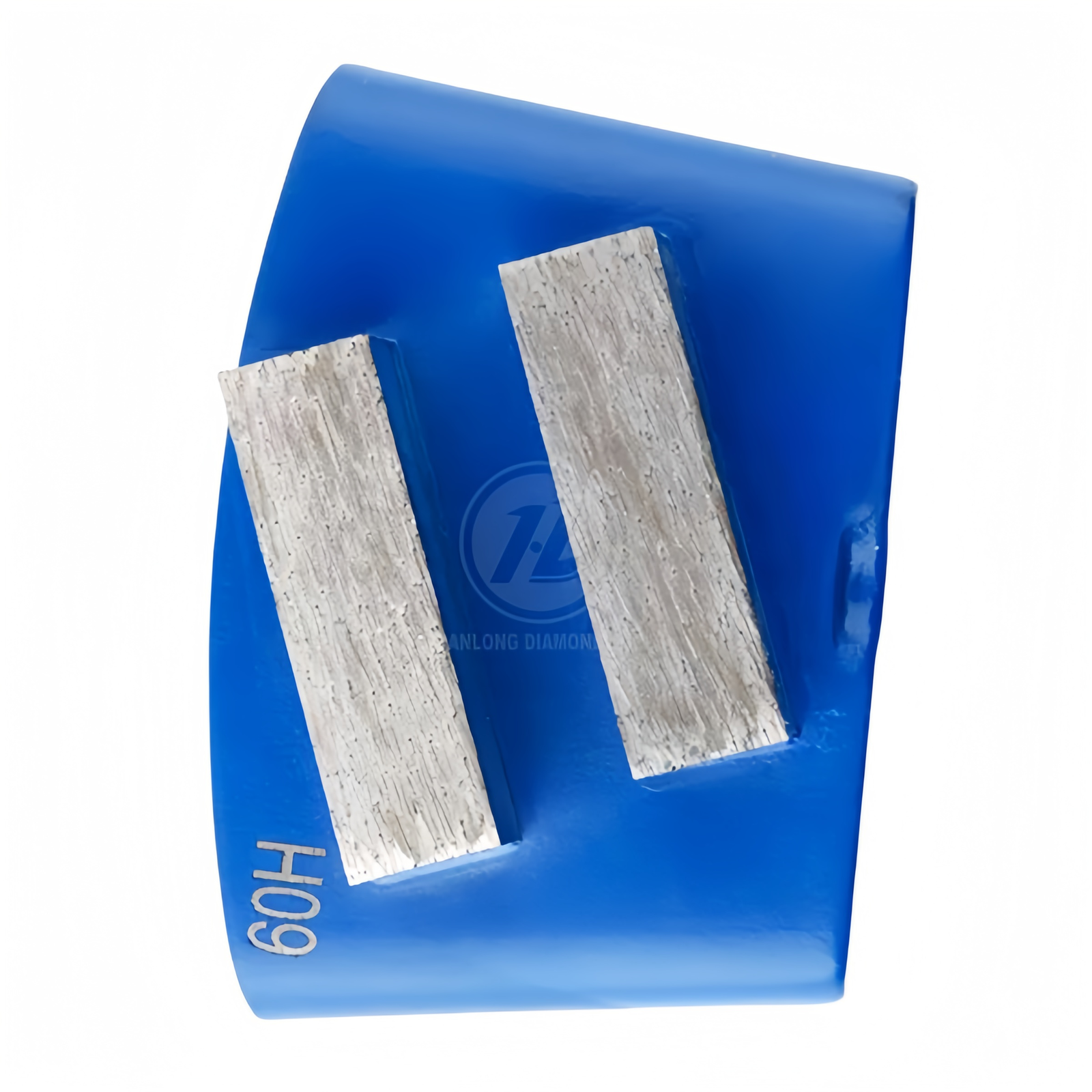

HTC Double Bar segments Grinding Shoes
New QuickChange Tooling with Rectangular Segments for Soft, Medium, Hard and Extra Hard Concrete are recommended for aggressive grinding and light coating removal.
Specifications
System: Compatible with HTC’s patented EZ Change (knock-on/knock-off) system, allowing for tool changes in seconds without screws.
Segment Size:
40 x 10 x 10mm / 40 x 10 x 12mm / 40 x 12 x 12mm / 40 x 12 x 15mm
Grit Range:
Available from very coarse (6/16 grit) for heavy removal to fine (120/150 grit) for smoothing.
Available bond:
extra soft bond for extra hard concrete
soft bond for hard concrete
medium bond for medium concrete
hard bond for soft concrete
extra hard bond for extra sofe concrete
Usage: Can be used for both wet and dry grinding applications.
