Sase Plate Trapezoidal Diamond Grinding Shoe Shark-shaped, 2 Segment+ 2 PCD tools function as scrapers, peeling and slicing through materials. It is a heavy-duty professional tool engineered for the aggressive removal of tough floor coatings. Unlike standard diamond shoes, which grind the surface.
The sharp edged PCD segments diamond grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, pool deck coating, waterproofing membrane, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
It is designed for removing materials such as concrete, epoxy resin, adhesives, and waterproof coatings.
Trapezoid more small segment grinding disc are designed specifically for the quick Change system. The five V-shaped diamond segments providing a balance between aggressive cutting and a stable, smooth finish.
Huanlong 2 Arrow segments Lavina grinding shoesare specifically designed for high-efficiency floor prep and aggressive coating removal.
Email：
contact@hldiamondtools.com

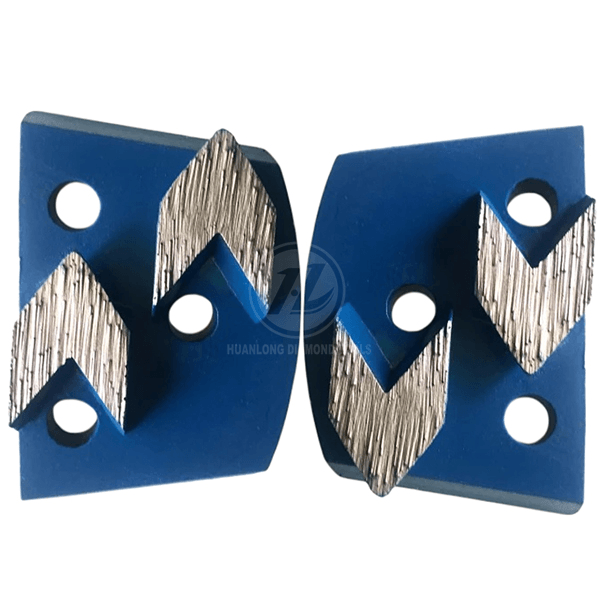

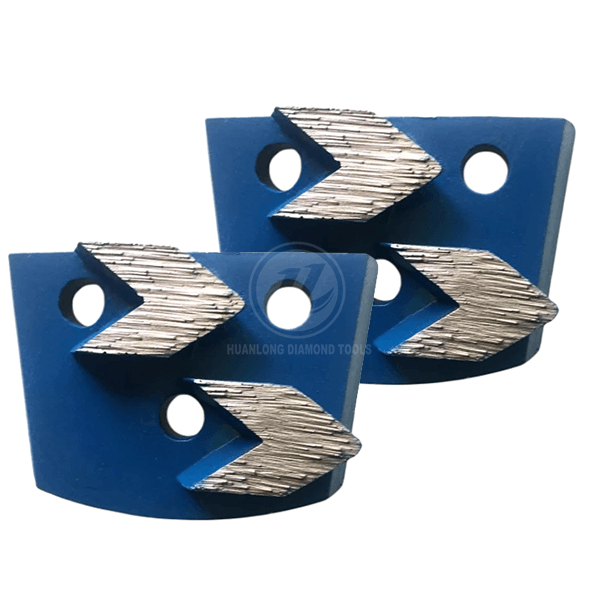

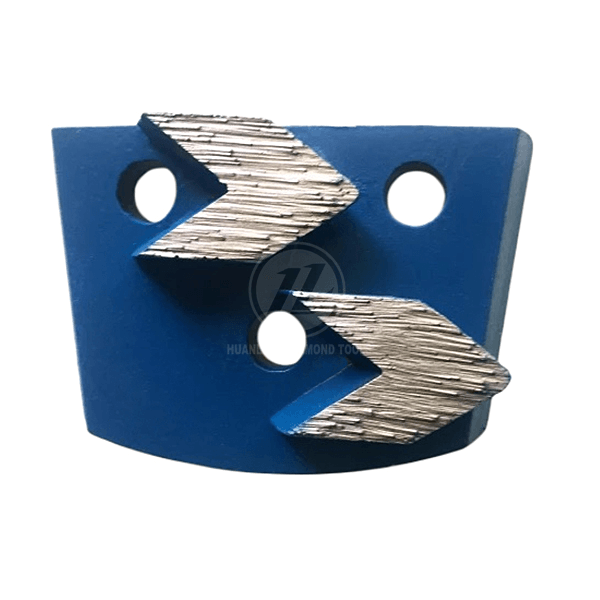

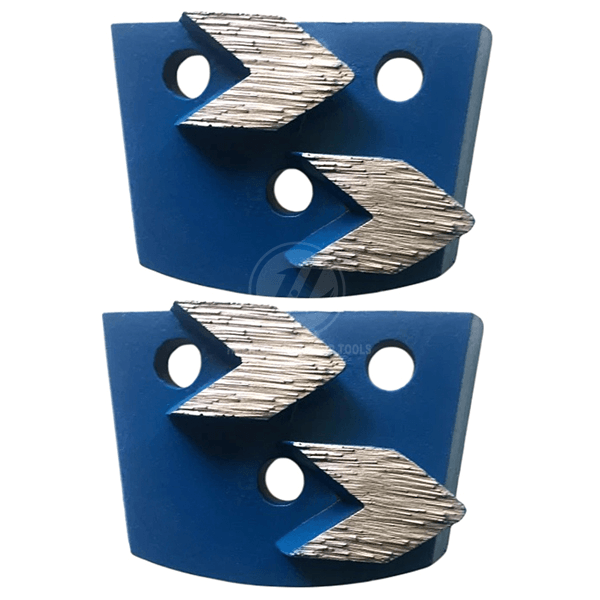

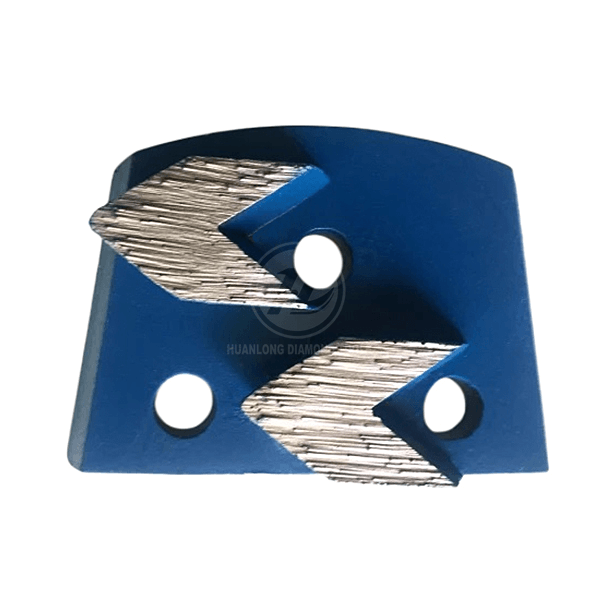

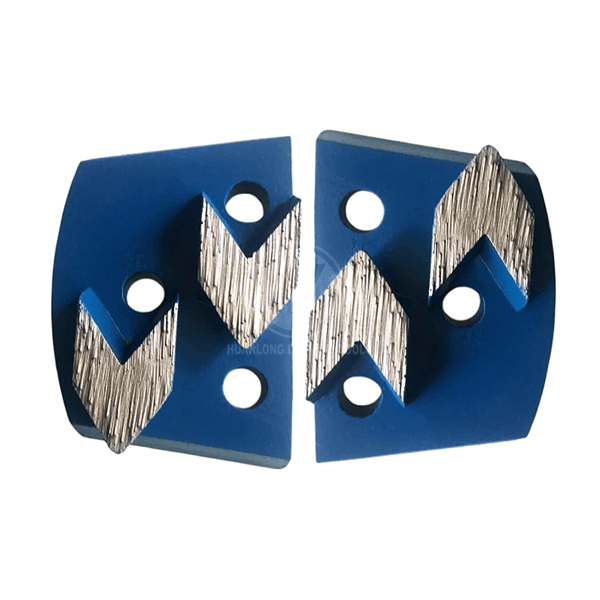

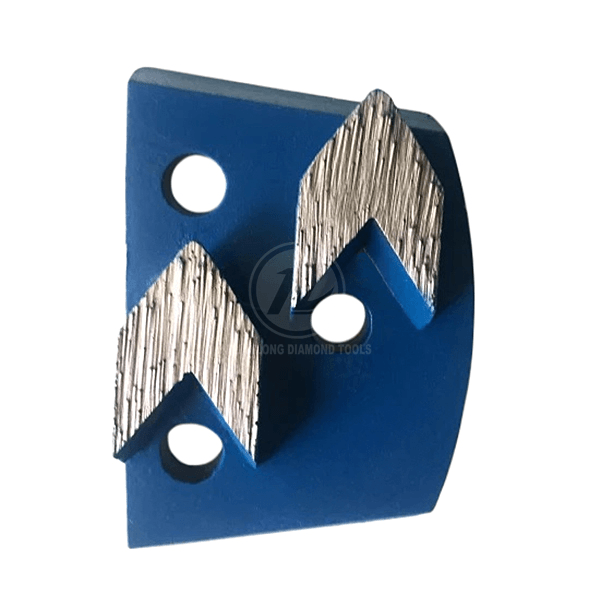

Huanlong Quick Change diamond grinding shoe for Lavina grinder, 2 Arrow segments
Application: Huanlong Quick change grinding shoe with 2 arrow shape diamond segments is wildly use for coatings removal, concrete floor grinding, floor preparation, and concrete polishing. Suitable for Lavina, Onfloor, EDCO etc Floor Grinding System. Arrow segments are very aggresive for the primary cut to oping up floor surface or coating removal.
Using the top quality diamonds and metal material with high segment diamond concentration, Huanlong Diamond Grinding shoes perform excellent effciency compare to tradional abrasive diamond tooling.
Segment number: 1, 2 Arrow segments or upon request
Segment height: 10mm/12mm or upon request
Grit: 16#,25#,30#,40#,60#, 80#,100#,120# or upon request
Segment bond: Super Soft Extra Soft, Soft, Medium, Hard, Extra Hard or upon request.
Working type: Dry grinding / Wet grinding
Note：Please leave your email, our professional person will contact you asap!
