HTC PCD is designed to efficiently remove various hard or thick coatings, such as epoxy resin, glue, paint, varnish, and resin. The unique feature of this accessory lies in its detachable design, which allows users to quickly replace different types of grinding blocks according to various grinding requirements (such as removing coatings or fine polishing).
Bolt-on Style 3×1/2 PCD refers to a type of concrete floor grinding tool, specifically a diamond segment with 3 pieces of half-round Polycrystalline Diamond (PCD) on a plate metal blank, used for aggressively removing thick coatings like epoxy, glue, and mastic from concrete floors
“PCD Plug WITH 3 PCDs are designed to remove coating over a surface equal to a troweled surface and will not damage the concrete. One of the 3 PCDs act as a stabilizer and depth guide, and reduce the gauging of the floor caused by the aggressive pcd segments. Diamond plug for Floorex grinder, with different shapes segments. But what is more important, especially in the initial grinding steps, is the bond or hardness of the tools. “
HTC grinding shoes with double Triangle segments are a heavy-duty choice for professional floor preparation and concrete grinding. Designed specifically for the HTC “EZ-change” system, these shoes balance aggressive cutting with a refined finish.
The 180mm PCD crossover diamond grinding cup wheel is designed for super fast removing hard and tacky surface coating including urethane epoxy, paint, glue, pool deck coating, waterproofing membrane, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
Email：
contact@hldiamondtools.com

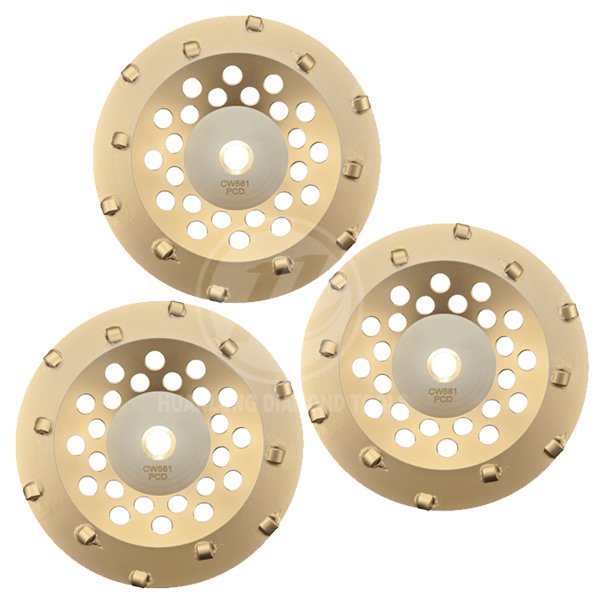

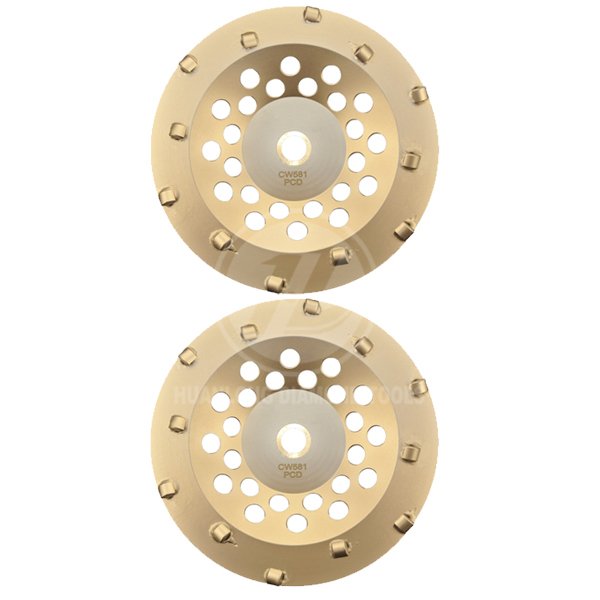

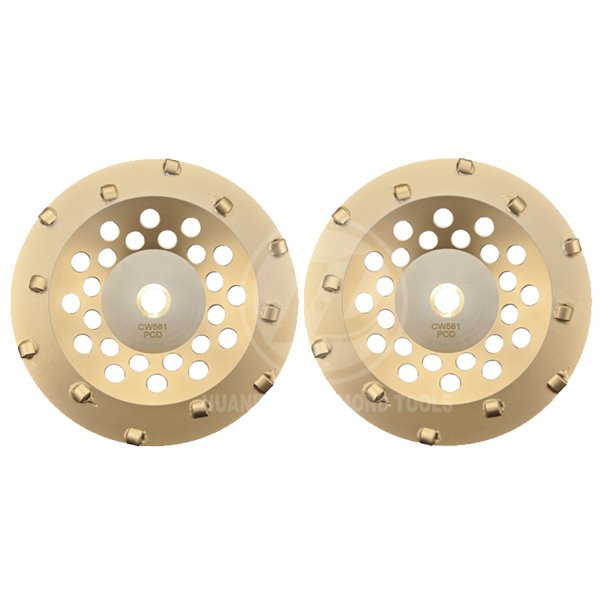

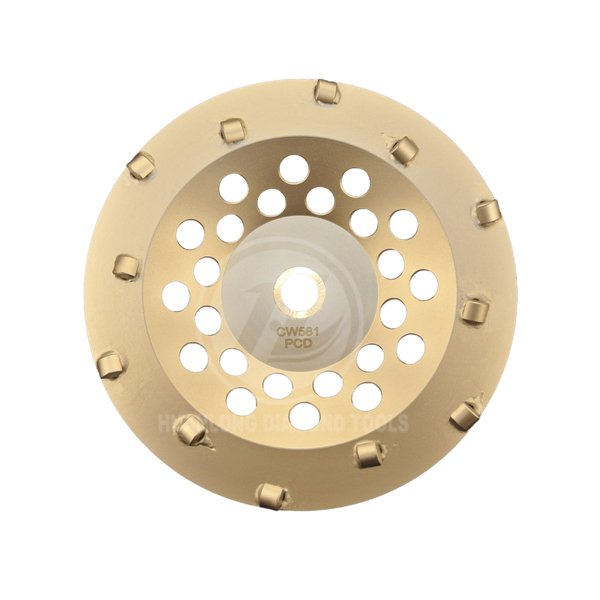

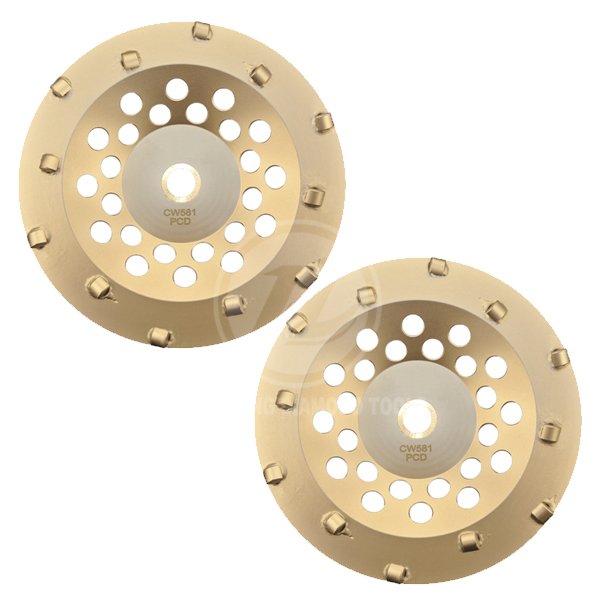

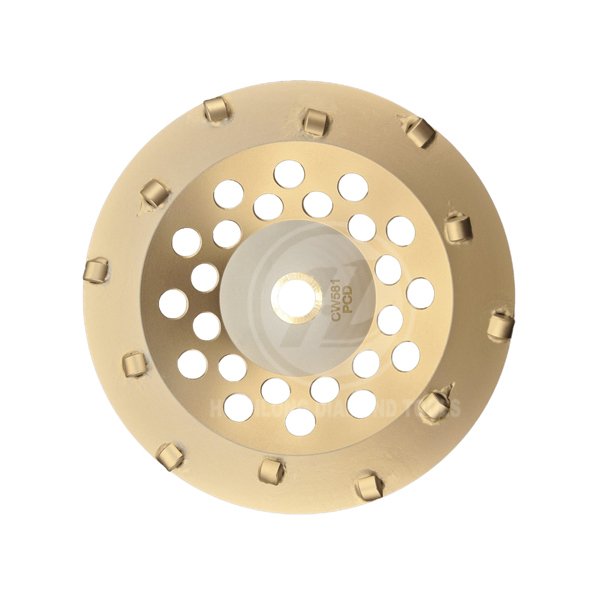

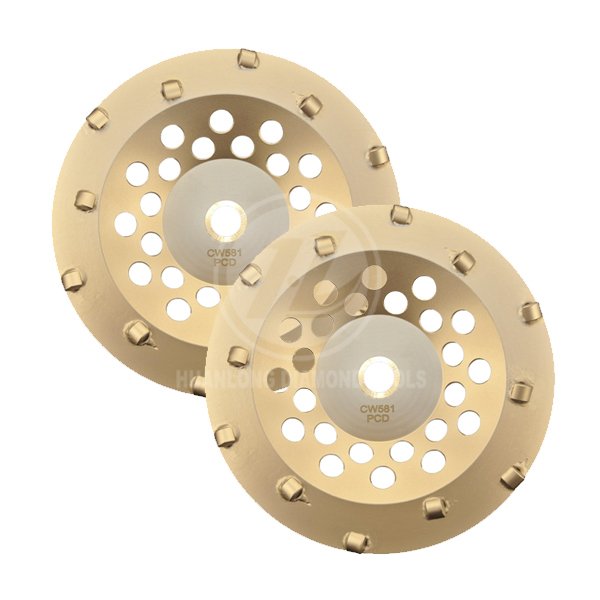

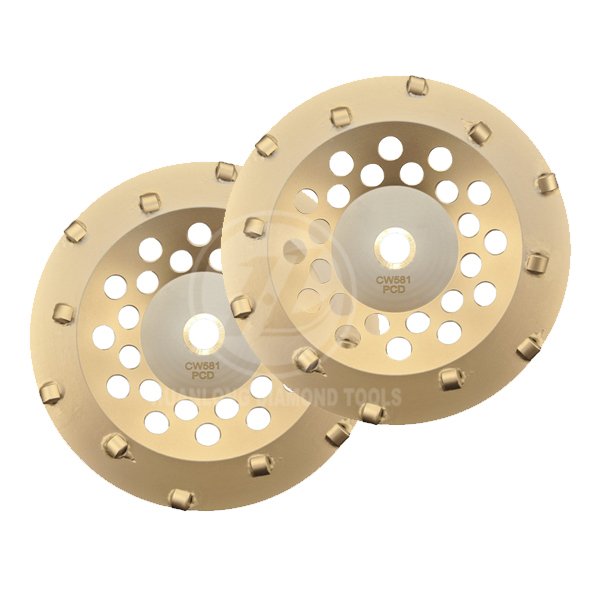

HuanLong 180mm 12 PCD crossover grinding cup wheel, 12 *1/4 PCD segments for Epoxy Glue Coating Removal
PCD Grinding CUP WHEEL
Application: Huanlong 180mm PCD crossover Diamond Grinding cup wheel is a professional grade coating removal tool, The crossover sharp edged PCD placement makes this PCD cup wheel super aggrisive. Using the highest quality polycrystalline diamonds to rapidly lift material, performing outstanding effciency compare to tradional diamond tooling, rapid action on common coatings such as epoxy, mastic, glue, bitumen and resin. Standard 22.23mm bore is easy to install on angle grinders for coating removal jobs.
Various types of base cup wheel optionsavailable for different angle grinders, please contact us for availability and detail.
Size: 100mm/4″,125mm/5″, 180mm/7″, or upon request.
Bore size: 22.23mm, M14 ,5/8″- 11 or upon request
Extremely aggressive for rapid coating removal process
Working type: Dry grinding / Wet grinding
Note：Please leave your email, our professional person will contact you asap!
