“For easy installation of velcro back resin floor polishing pad onto floor grinding machine. Eg: REDILOCK, LAVINA, HTC, SKINMAKIN, SWITCH, STI, etc. 1) Diameter: Trapzoid 2) Back: redi lock 3) Connection: Magnetic or M6 thread 4) Color: Black”
PRODUCTS
HOT PRODUCTS
PCD grinding shoes are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor. Trapezoid PCD is easy and quick set up of diamond tools, no need for multiple sets of diamond holder discs and no time consuming. Available for a variety of machine manufacturers.
PCD Trapezoidal Diamond Grinding Shoe (Shark-shaped, 2 Segment, 2 PCD) is a heavy-duty professional tool engineered for the aggressive removal of tough floor coatings. Unlike standard diamond shoes, which grind the surface, PCD (Polycrystalline Diamond) tools function as scrapers, peeling and slicing through materials.
LAVINA PCD Polishing Shoes are designed for removing concrete surface coatings and performing surface treatments. They are available in various customizable sizes: 1/4 PCD, 1/3 PCD, 1/2 PCD, PCD cells, and full PCD. They are an ideal choice for removing paint, glue, putty, and epoxy resin coatings.
180mm 9 PCD low profile grinding cup wheel, Professional coating removal Grinding Disc, 9 *1/4 PCD segments, For Fast Aggresive Epoxy, Paint, Glue Removal.
The 180mm 9 PCD Low profile grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, ,waterproofing membrane,pool deck coating, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
Email：
contact@hldiamondtools.com

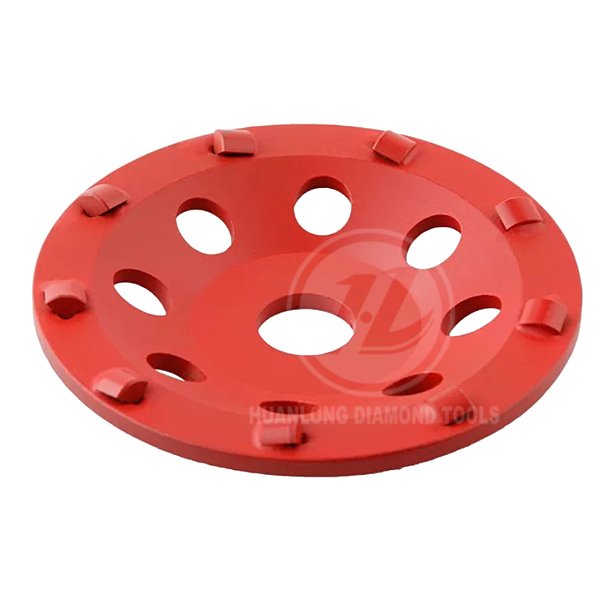

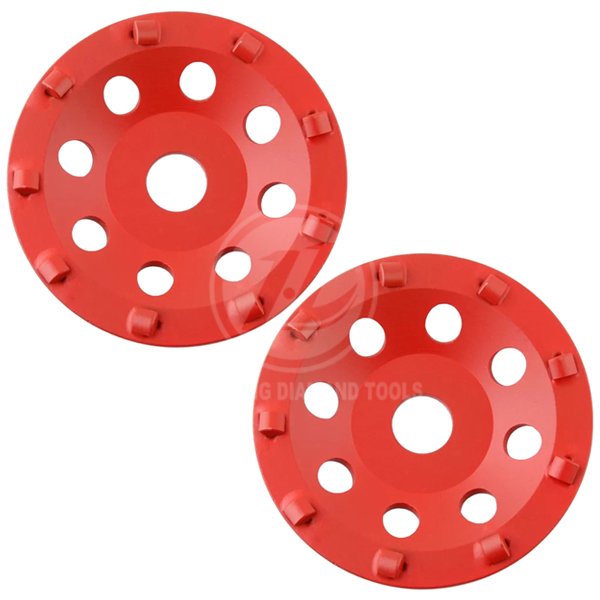

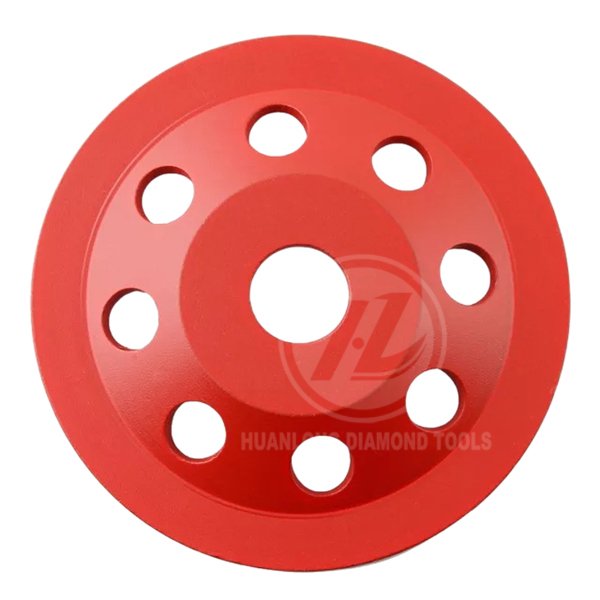

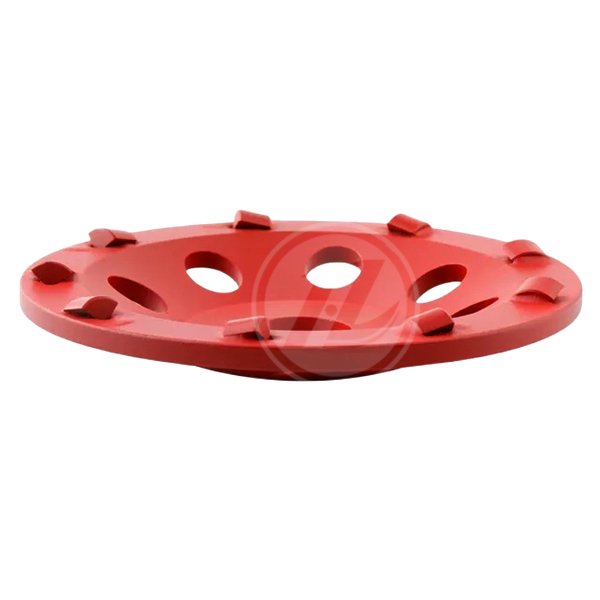

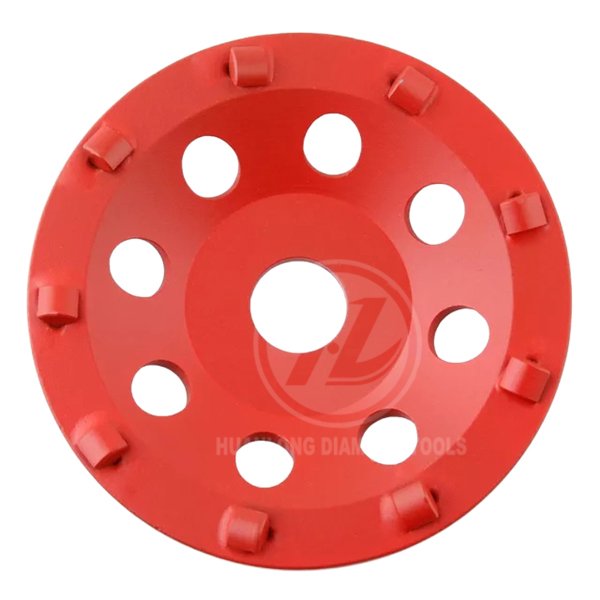

HuanLong 180mm 9 PCD low profile Diamond Grinding Disc with 9 *1/4 PCD segments for Epoxy Glue Coating Removal
PCD Grinding CUP WHEEL
Application: Huanlong 180mm 9 PCD low profile Diamond Grinding wheel is a professional grade coating removal tool, using the highest quality polycrystalline diamonds to rapidly lift material. Low profile style disc for easier handling on angle grinder. The super aggrisive PCD segment performsexcellent effciency compare to tradional abrasive diamond grinding shoes, super fast action on common coatings such as epoxy, glue, mastic, bitumen and resin. Standard 22.23mm bore is perfect for fitting hand holded angle grinders for coating removal jobs.
Various types of base cup wheel optionsavailable for different types of angle grinders, please contact us for availability and detail.
Size: 100mm/4″, 115mm/4.5″,125mm/5″, 180mm/7″, or upon request.
Bore size: 22.23mm, M14 ,5/8″- 11 or upon request
Extremely aggressive for rapid coating removal process
Working type: Dry grinding / Wet grinding
