Diamond segments have many different kinds of shape: Arrow, Rhomboid, Rectangle, Curved Rectangle, Coffin, Oval, Button, etc. Rounded shape is ideal for achieving a smooth finish and minimizing deep scratching, particularly on uneven floors.
PRODUCTS
HOT PRODUCTS
HTC double round grinding shoes are the go-to choice when you need a balance between aggressive material removal and a smooth, scratch-minimized finish. Because they have a rounded edge, they lack the sharp “leading edge” of a rectangular or arrow-shaped segment, which helps prevent deep gouging on uneven concrete.
HTC double bar grinding shoes are designed specifically for the HTC EZ Change system. The two rectangular diamond segments providing a balance between aggressive cutting and a stable, smooth finish.
Fast removal of thick coating such as old glue, epoxy, paint, in particular thick resins.
Creates slip-resistant finish on granite and marble, breaks down coatings prepares surface for application of new coating overlay, enhances the combination of floor and new layer material.

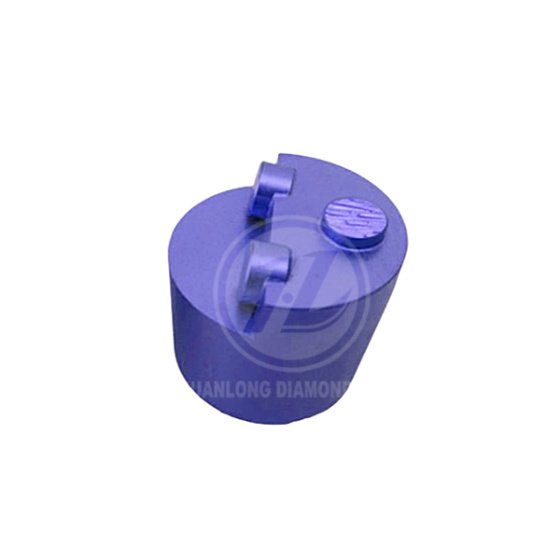

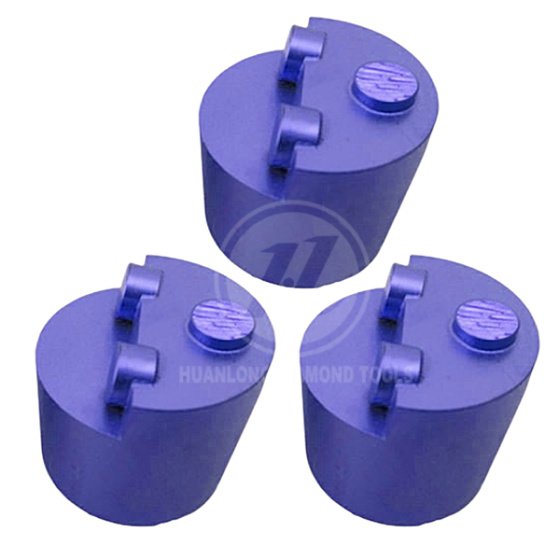

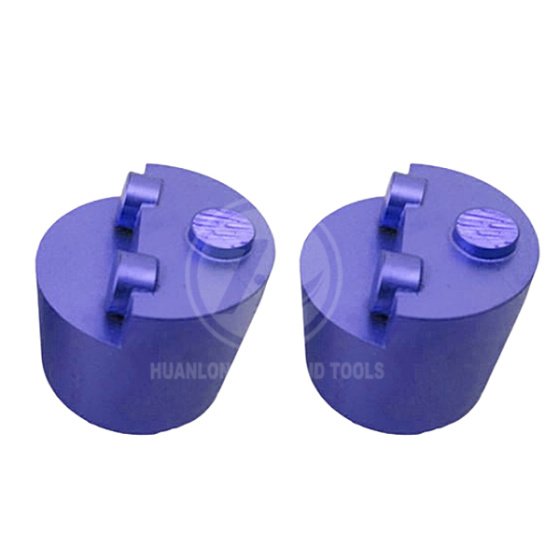

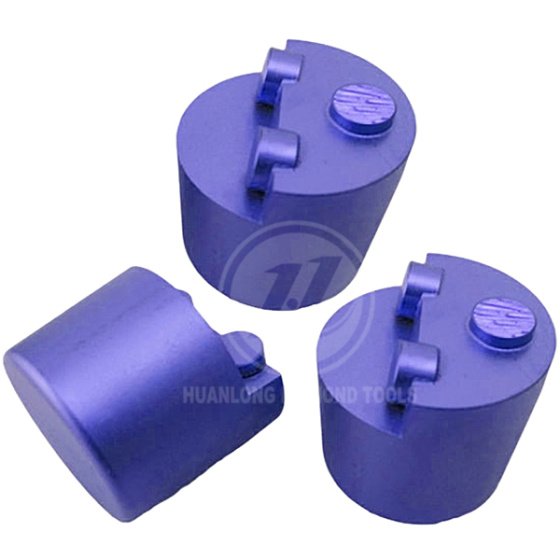

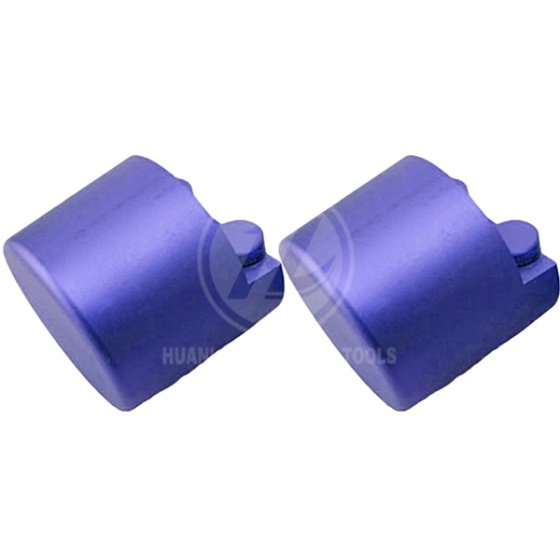

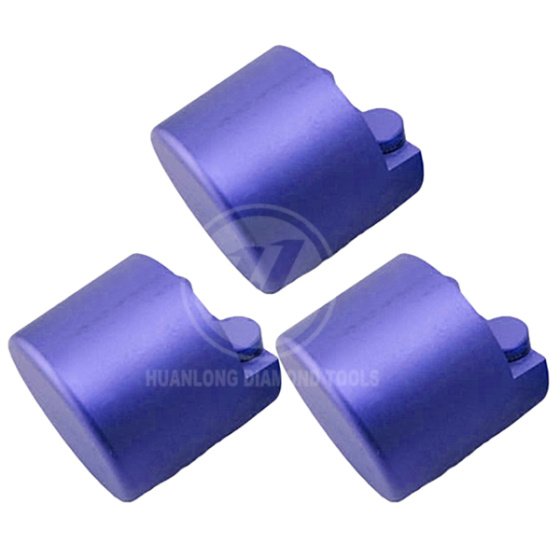

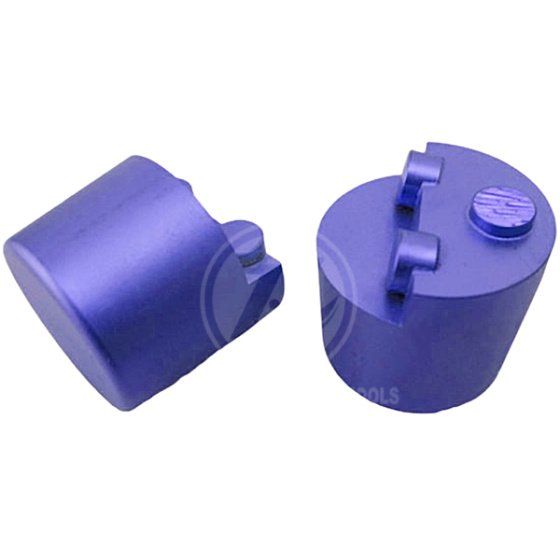

Diamond Concrete Grinding PCD Plug for Epoxy Removing/ Concrete Floor Preparation
“PCD Plug WITH 3 PCDs are designed to remove coating over a surface equal to a troweled surface and will not damage the concrete. One of the 3 PCDs act as a stabilizer and depth guide, and reduce the gauging of the floor caused by the aggressive pcd segments. Diamond plug for Floorex grinder, with different shapes segments. But what is more important, especially in the initial grinding steps, is the bond or hardness of the tools. “
Email：
contact@hldiamondtools.com
Diamond Concrete Grinding PCD Plug for Epoxy Removing/ Concrete Floor Preparation
HuanLong PCD grinding shoes are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor. Redi Lock is easy and quick set up of diamond tools, no need for multiple sets of diamond holder discs and no time consuming. Available for a variety of machine manufacturers.
PCD diamond grinding disc for concrete floor coating removal
Application: PCD grinding disc is designed for concrete floor coating removals, thick old coatings removal such as epoxies, glues, mastic, urethane etc. Most of the PCD grinding disc with aggressive metal bond segments, which could clean up any thin coating left behind. This helps to preserve the life of the PCD segments. PCD available as either clockwise or counter clockwise versions.
The Standard Size : 76mm, 83mm, and 100mm
Segment Shape: PCD or PCD with metal bond (arrow, rectangle, button, etc.)
Grit: 6#, 18/20#, 30/40#, 60/80#, 100/120# or made as your demand
Bond Type: soft, medium and hard bond.
Connections: redi lock, pin, scanmaskin, STI, M14, etc.
Working type: Wet grinding / Dry grinding
Long lifetime
Note：Please leave your email, our professional person will contact you asap!
