This is a highly specialized, heavy-duty floor preparation tool designed for concrete grinders, particularly those compatible with SASE brand mounting systems. The tooling configuration, which includes 2 PCD segments plus 1 carbide segment, is engineered to balance extreme aggressiveness (for stripping) with stability (to protect the floor).
Trapezoid PCD is easy and quick set up of diamond tools, no need for multiple sets of diamond holder discs and no time consuming. Available for a variety of machine manufacturers. PCD grinding shoes are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor.
HTC-compatible Triple Hexagon shoes are designed for maximum surface area and longevity. They are a “heavy-duty” alternative, often favored for large-scale industrial projects.
STI diamond grinding pucks are specialized metal bond grinding tools used with Substrate Technology (STI) Prep/Master grinders for concrete surface prep, featuring diamond segments (often 10) in various bonds (hard, medium, soft) and grits (like 16/20, 60/80, 120/150) to aggressively grind, level, or remove coatings from concrete floors, utilizing quick-change systems for easy tool swaps.
PCD Trapezoidal Diamond Grinding Shoe (Shark-shaped, 2 Segment, 2 PCD) is a heavy-duty professional tool engineered for the aggressive removal of tough floor coatings. Unlike standard diamond shoes, which grind the surface, PCD (Polycrystalline Diamond) tools function as scrapers, peeling and slicing through materials.
Email：
contact@hldiamondtools.com

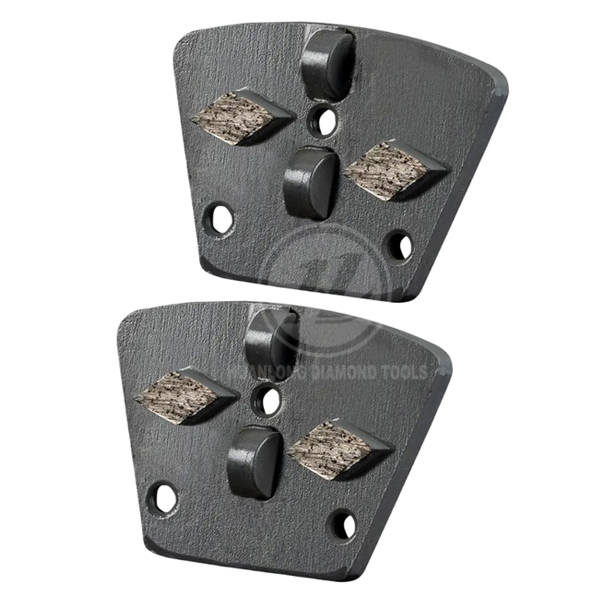

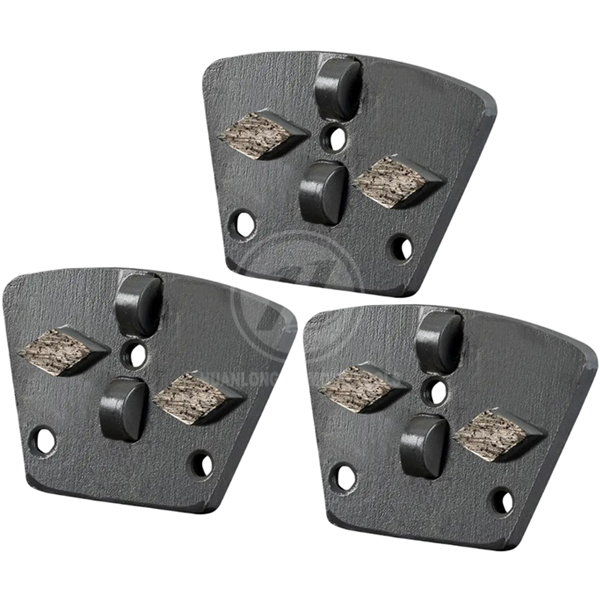

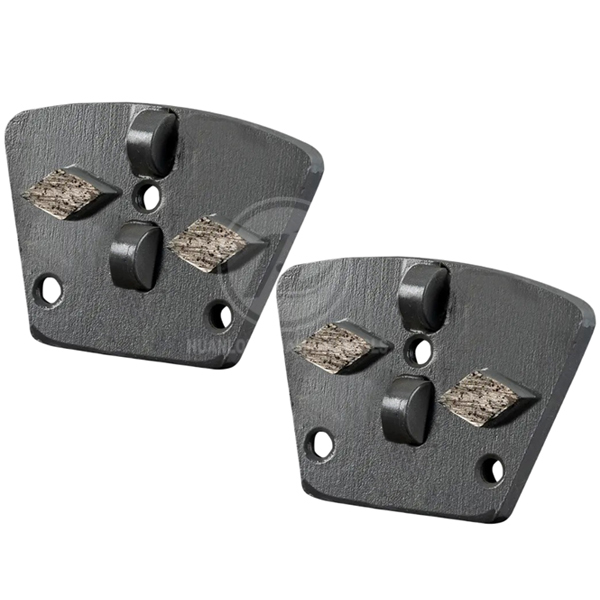

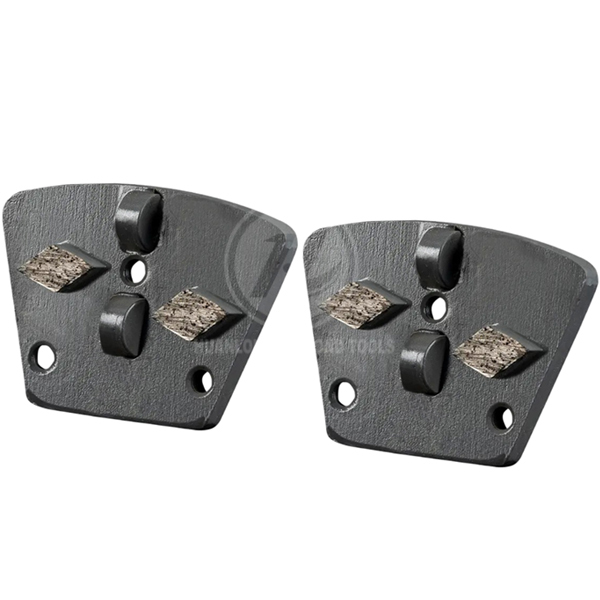

The Sase M6 plate with 2×1/2 PCD & 2 Shark Segments for removing medium-thick coatings where you want to balance speed with a controlled finish.
Segment Type: 2 PCD + 2 Shark-shaped segments. The PCD bits do the heavy lifting of scraping, while the “shark” or bar segments (often made of metal-bond diamonds or tungsten carbide) stabilize the tool and prevent it from digging too deep into the concrete.
Base Shape: Trapezoid (Universal). This fits most standard floor grinding machines like Husqvarna, Lavina, and HTC using magnetic plates or quick-change systems.
Action: Aggressive scraping. Ideal for materials that would otherwise melt or “gum up” standard diamond segments.
This specific configuration is the industry standard for:
• Epoxy & Urethane Removal: Quickly strips thick coatings (over 1mm) without heat buildup.
• Adhesives & Mastics: Effective on stubborn carpet glue, black bitumen, and tile adhesives.
• Waterproofing Membranes: Peels back rubberized coatings that are too soft for traditional grinding.
• Paint & Varnish: Cleans old paint off concrete floors in a single pass.
Advantages of the “Shark” Shape
The shark-shaped segments serve two critical purposes:
1. Depth Control: They act as a “buffer,” preventing the sharp PCD tips from gouging the concrete slab too deeply.
2. Support: They help the machine run smoother, reducing the “chatter” (vibration) often associated with pure PCD tools.
Note：Please leave your email, our professional person will contact you asap!
