The 180mm 9 PCD Low profile grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, ,waterproofing membrane,pool deck coating, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
HTC grinding shoes with double Coffin segments are a heavy-duty choice for professional floor preparation and concrete grinding. Designed specifically for the HTC “EZ-change” system, these shoes are the “workhorses” of the industry, balancing aggressive cutting with a refined finish.
The sharp edged PCD segments diamond grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, pool deck coating, waterproofing membrane, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
Redi Lock adapter plates are primarily used in concrete floor grinding to enable the use of Husqvarna Redi-Lock diamond tools on grinding machines from other brands like HTC, Scanmaskin, or Lavina. They save costs by eliminating the need to purchase brand-specific tooling for every machine.
PCD grinding shoes are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor. Trapezoid PCD is easy and quick set up of diamond tools, no need for multiple sets of diamond holder discs and no time consuming. Available for a variety of machine manufacturers.
Email：
contact@hldiamondtools.com

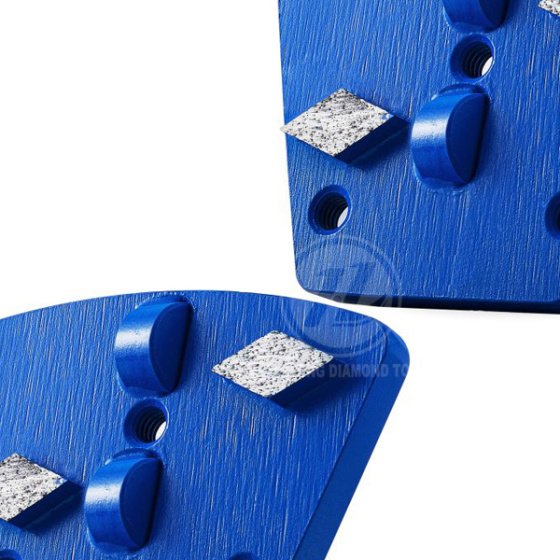

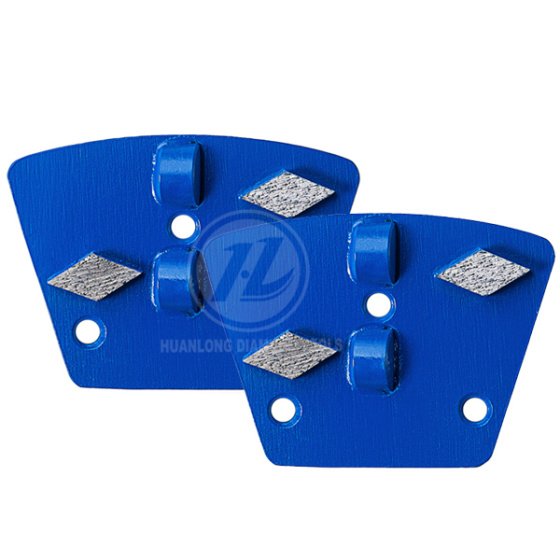

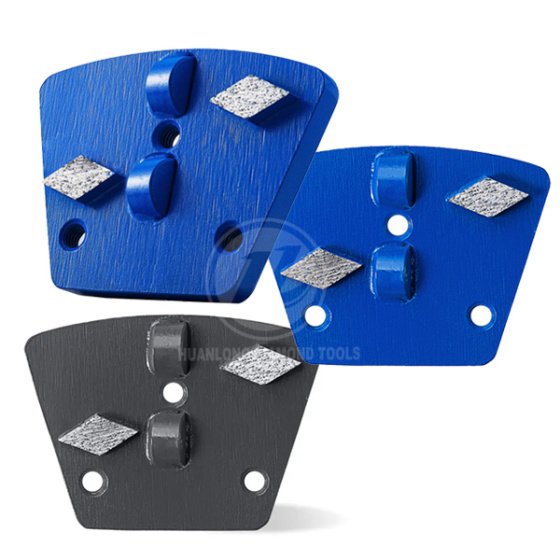

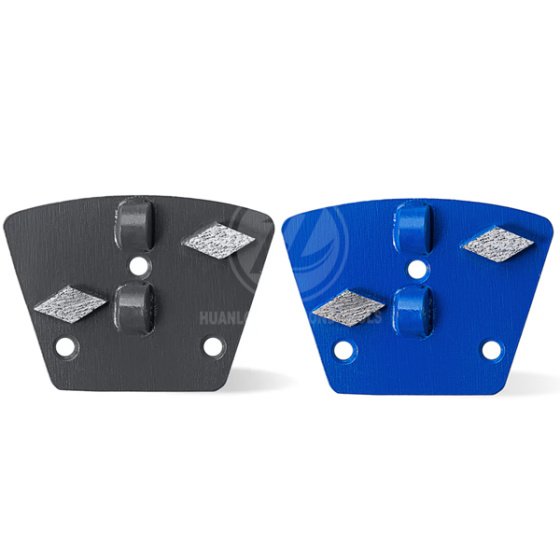

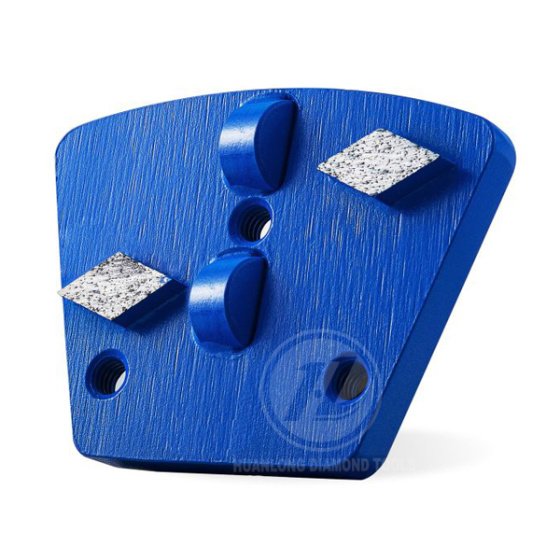

Trapezoid PCD Diamond Grinding shoes shark tooth shaped
HuanLong shark trapezoid PCD grinding shoes are embedded with polycrystalline diamonds, which are deal for fast coating removal. The trapezoid tool can be applied to many grinding projects, like the removal of paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor. It is easy to change and replace the tools.
About Segments:
a.PCD without double arrow or shark tooth are very aggressive, and will leave a very coarse profile on the concrete. They are suitable for fast and aggressive grinding, removal coating thicker than 3mm.
b.PCD with double arrow or shark tooth are less aggressive, so they do not damage the concrete.The sacrificial bars or metal bond button act as a depth guide, and reduce the gauging of the floor cause by the aggressive PCD segments. Moreover, the metal bond will extend the life of PCD.
Working type: Dry grinding / Wet grinding
Various types of base plate available for suiting most of common brand grinding machine, such as REDILOCK, TRAPZOID, POLAR, HTC, LAVINA, SCANMAKSIN, etc. (Please contact us for options and details.)
Note: It is available to customize both clockwise and counterclockwise PCD diamond segments.
Note：Please leave your email, our professional person will contact you asap!
Keywords: CW505、CW507、Class B water mill、7-inch turbine 30
