Triangle grinding shoe is mainly used for grinding concrete floors and stone, and can also be used to remove paint, glue, epoxy resin and floor coatings.
PRODUCTS
HOT PRODUCTS
“For easy installation of velcro back resin floor polishing pad onto floor grinding machine. Eg: REDILOCK, LAVINA, HTC, SKINMAKIN, SWITCH, STI, etc. 1) Diameter: Trapzoid 2) Back: redi lock 3) Connection: Magnetic or M6 thread 4) Color: Black”
Abrasive diamond frankfurt is an efficient diamond tool for grinding or polishing stone slabs. There are 3 different kinds of diamond frankfurts – metal bond, resin bond, and magnesia type. Metal bond diamond frankfurt is usually used for coarse/medium grinding or calibrating. Resin bond and magnesite type are usually used for polishing.
KLINDEX Diamond Tools Quick Lock Butterfly for Aggregate exposure, Preparation of floors for tiles, Floor preparation for epoxy coatings and sealers, Flattening of concrete.
The Redi-Lock with 1/2 PCD and 2 Arrow Segments For Thick, sticky coatings and hard concrete. Aggressive; deep mechanical bond profile.
The Redi-Lock with 1/2 PCD and 2 Arrow Segments is an elite heavy-duty removal tool. It combines the raw scraping power of a half-round PCD with the precision “slicing” of arrow-shaped diamond segments. This is a specialized configuration typically used when you need to strip a thick, stubborn coating and prep the concrete for a new high-build system in a single pass.
Email：
contact@hldiamondtools.com

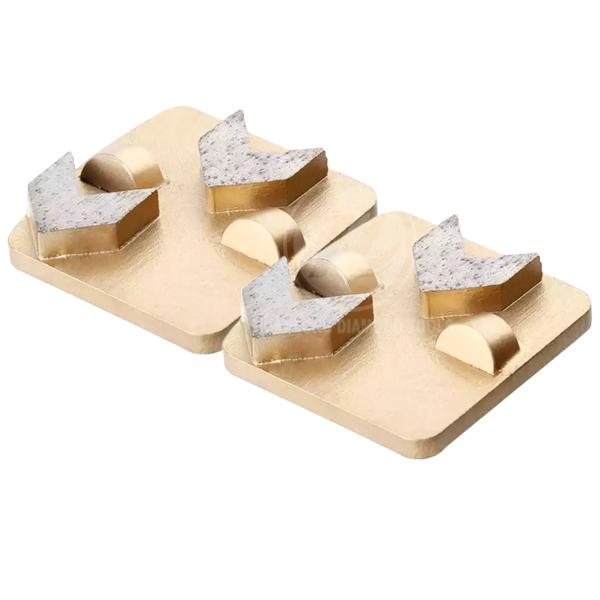

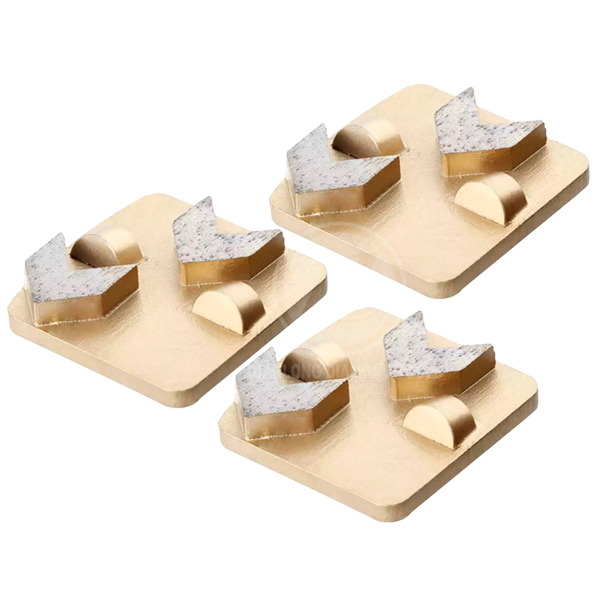

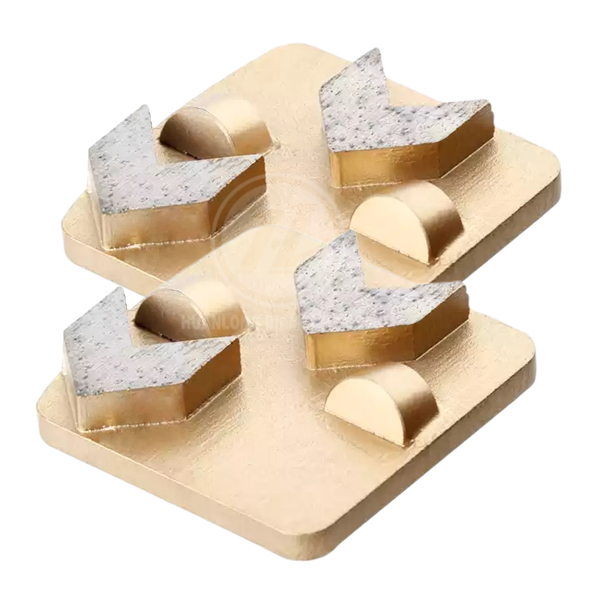

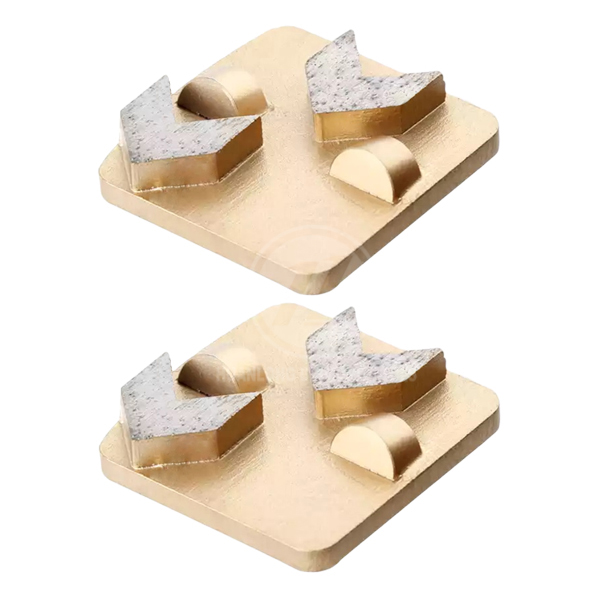

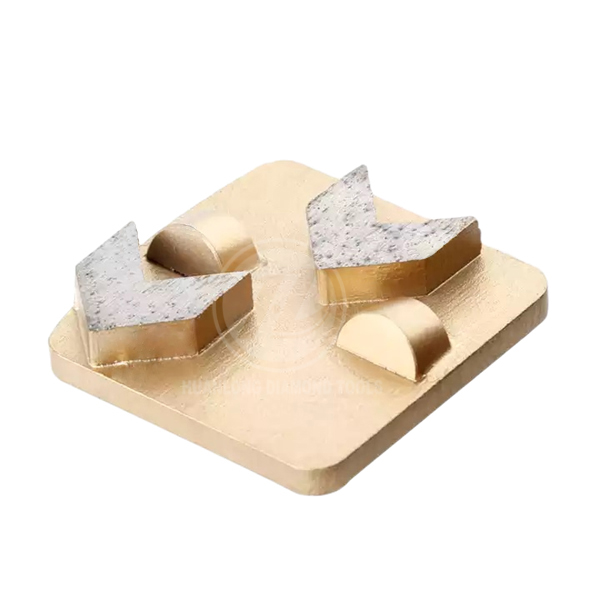

Trapezoid Half PCD w/ Double Arrow Coating Removal PCD Diamond Grinding Segment Concrete Tools
1. The Power of the “Arrow” Design
Unlike standard rectangular bars, Arrow Segments have sharp, pointed leading edges.
Slicing Action: While a standard bar grinds, the arrow “slices” into the coating residue. This is particularly effective for sticky adhesives (mastic, glue) that might otherwise smear under a flat bar.
Reduced Friction: The tapered shape allows the segment to penetrate the surface more easily, providing a more aggressive bite into the concrete substrate.
2. Why the “1/2 PCD + 2 Arrow” Combo?
This setup is designed for heavy-duty production:
Maximum Shredding: The 1/2 PCD chip acts as the primary “shredder,” tearing through thick epoxy, urethane, or waterproof membranes.
Double Stability: Two arrow segments provide a wider footprint than a single bar. This keeps the grinding head perfectly level, preventing the machine from “walking” or vibrating excessively when hitting uneven patches.
Integrated Surface Prep: The two arrow segments are usually a very coarse grit (roughly 16–25 grit). As the PCD removes the coating, the arrows immediately begin grinding the concrete, leaving a high-profile surface that is ideal for bonding new materials.
Note：Please leave your email, our professional person will contact you asap!
