Polar PCD grinding disc The PCD block trapezoidal plate is designed for removing thin layers of iron chips and release agents. The embedded PCD slices are distributed across various segments, resulting in very rough scratches. This plate is highly effective when aggressive grinding is required.
HTC “2 rhombus segments” grinding shoes is preferred for its balance between aggressive cutting and a smooth finish, making it a versatile “all-rounder” for floor preparation.
Trapezoid Grinding Shoes features a “quick-change” base installed on the rotating discs of large grinding machines to process the surfaces of concrete, terrazzo or stone.
HTC double bar grinding shoes are designed specifically for the HTC EZ Change system. The two rectangular diamond segments providing a balance between aggressive cutting and a stable, smooth finish.
Diamond segments have many different kinds of shape: Arrow, Rhomboid, Rectangle, Curved Rectangle, Coffin, Oval, Button, etc. Rounded shape is ideal for achieving a smooth finish and minimizing deep scratching, particularly on uneven floors.
Email：
contact@hldiamondtools.com
Grinding segments are use for grinding concrete , stone floor . welded on metal plate , fixed on floor grinding machine and HTC grinding machine .
When grinding hard concrete ,diamond segment bond needs to match the concrete hardness .
Soft bond for hard floor , medium bond for medium floor , hard bond for soft floor .
Other shape can be customized : Rhombus , Oval , Round , Arrow etc
Applications and Benefits:

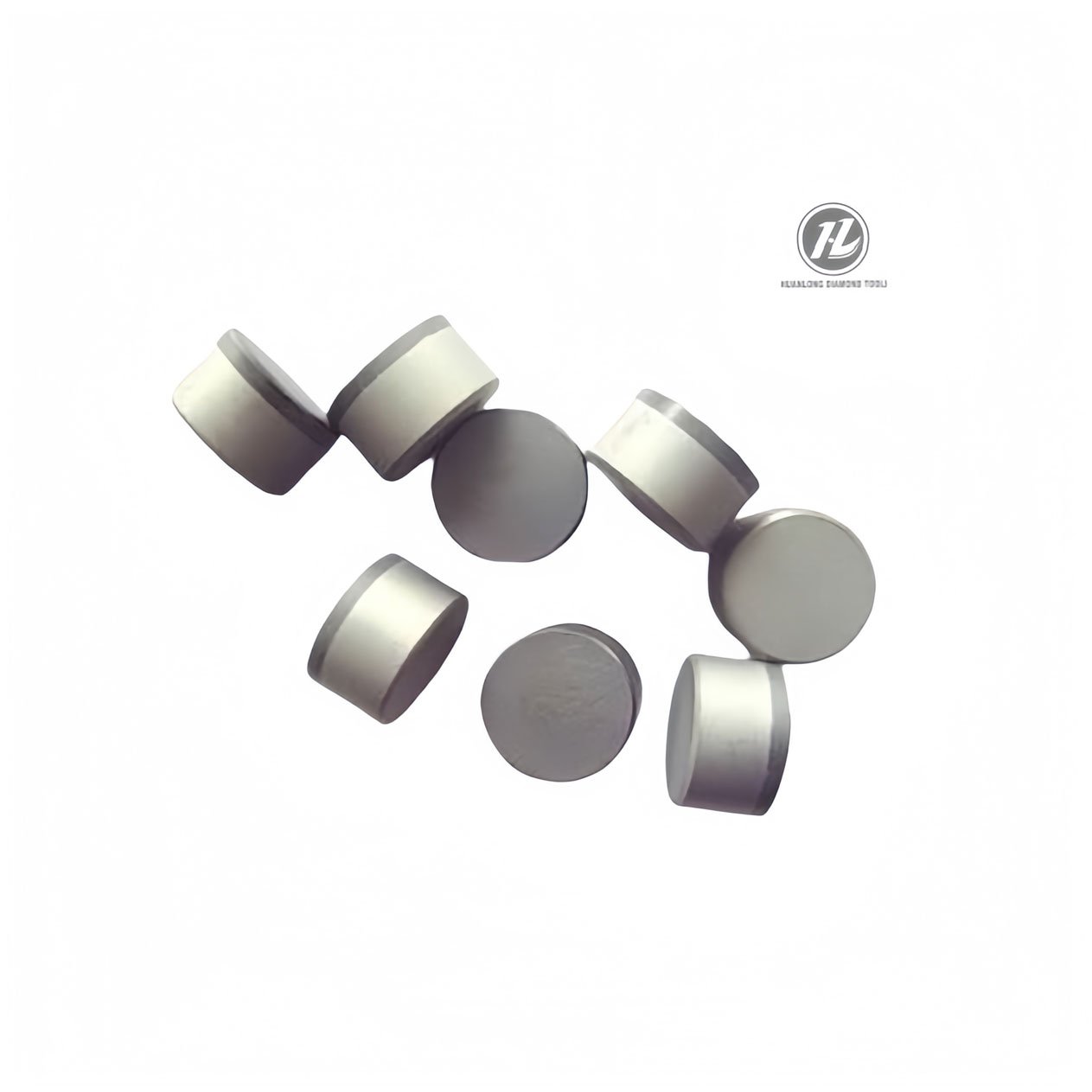

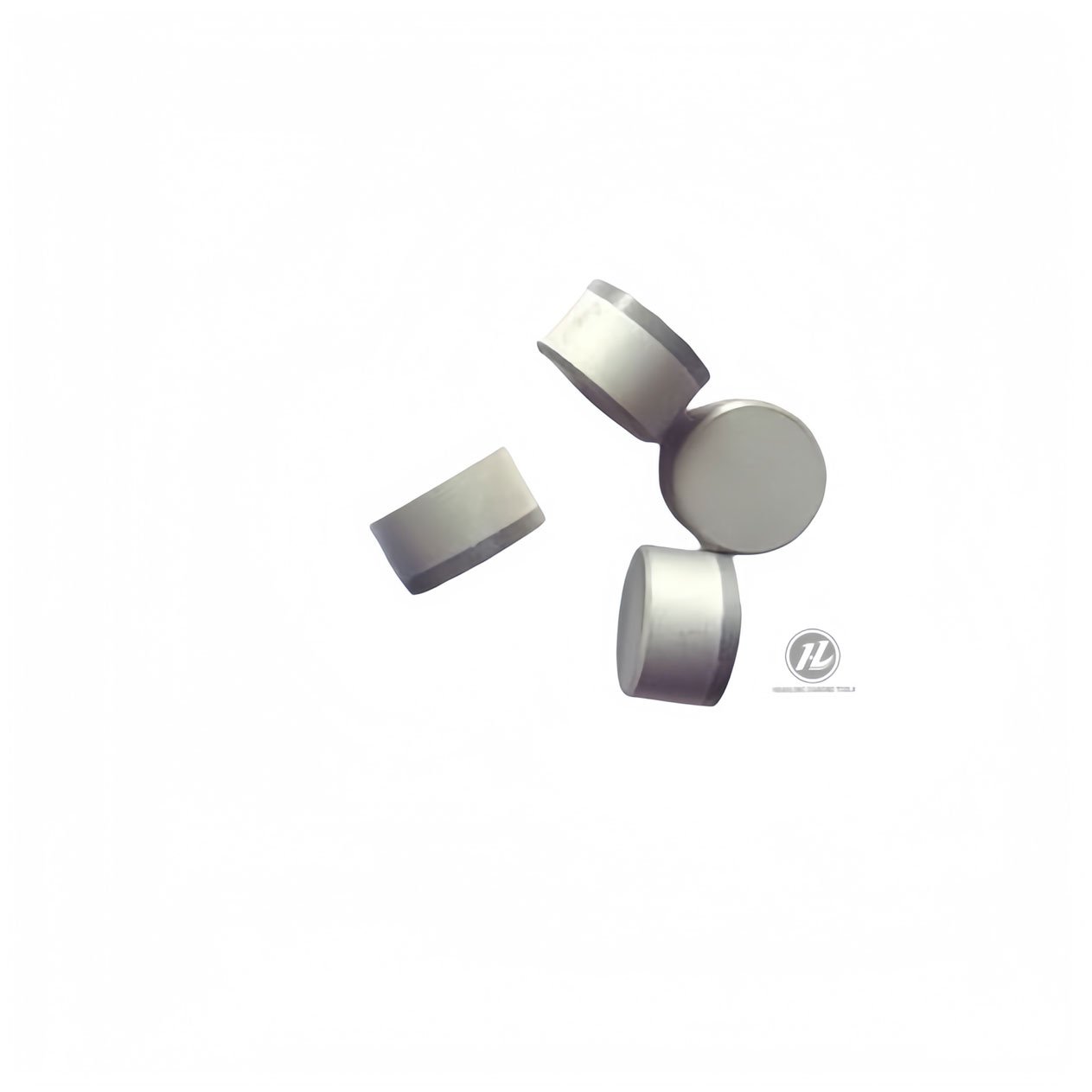

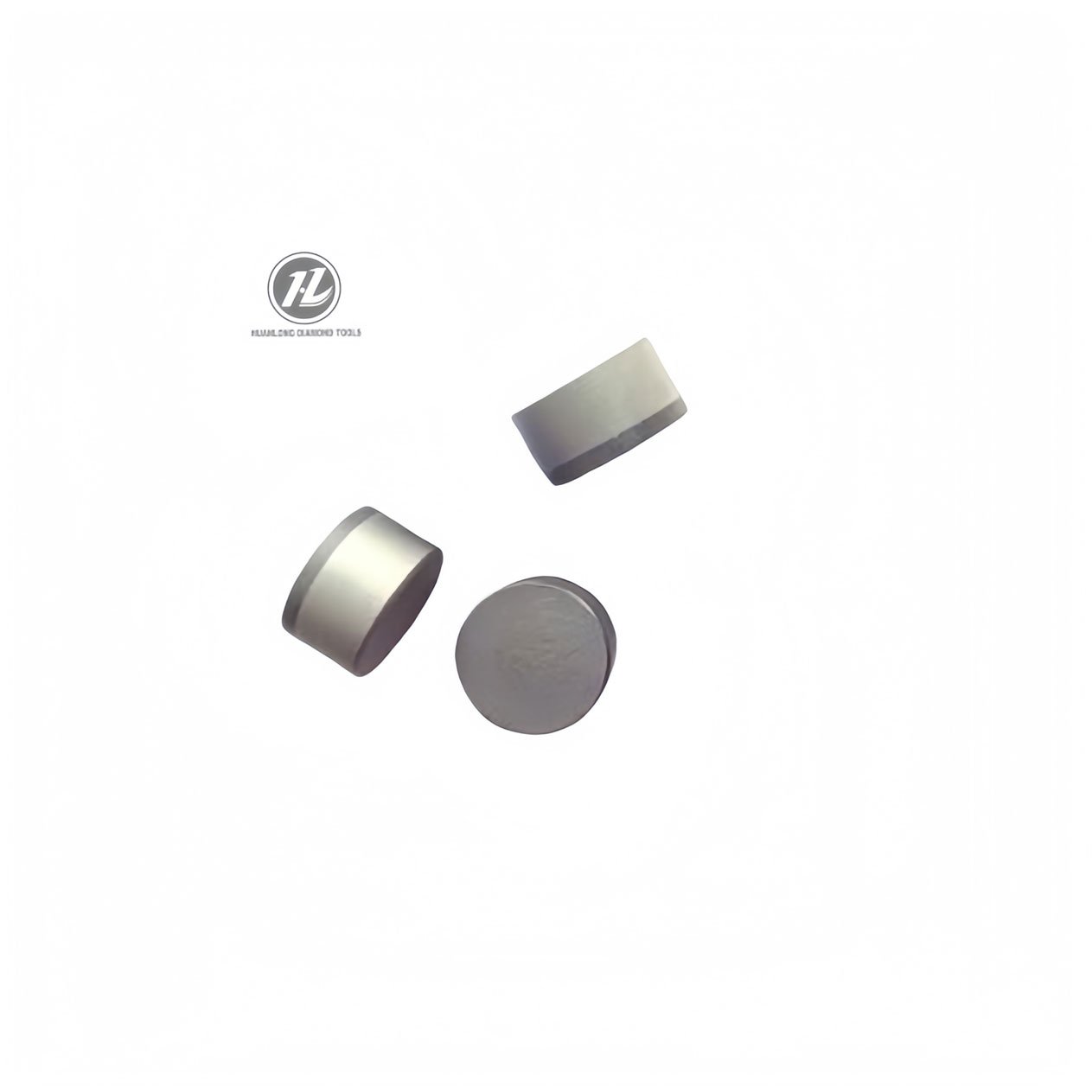

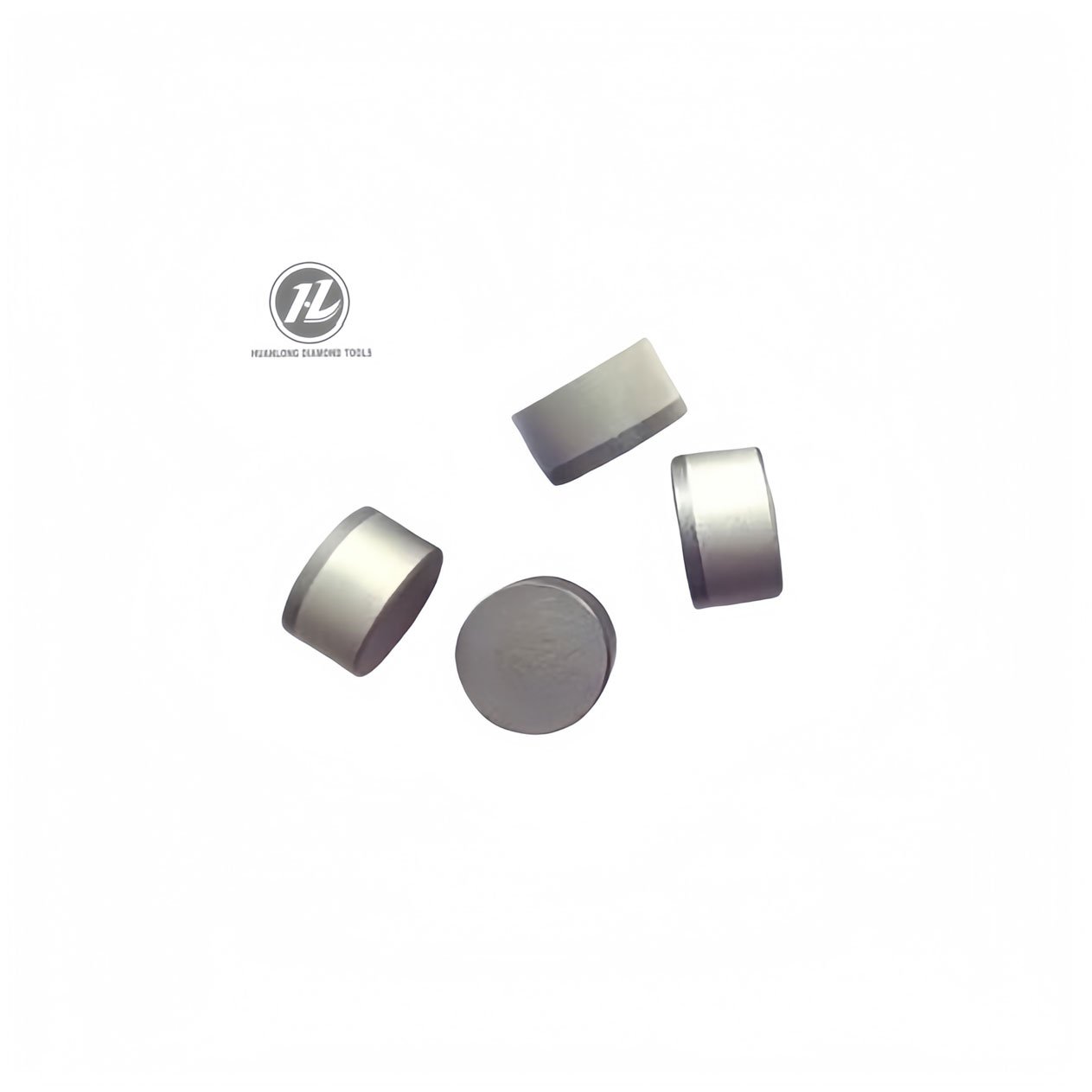

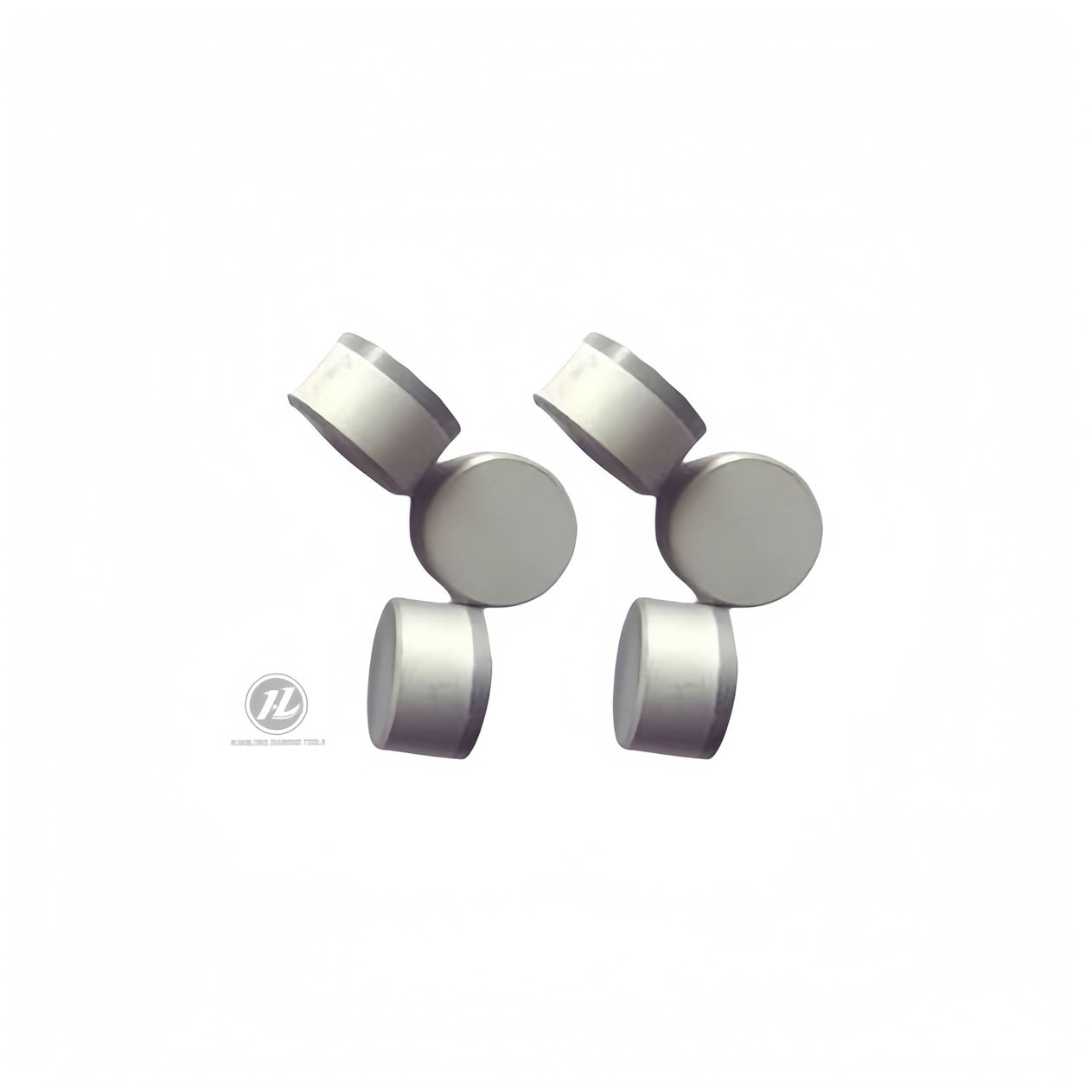

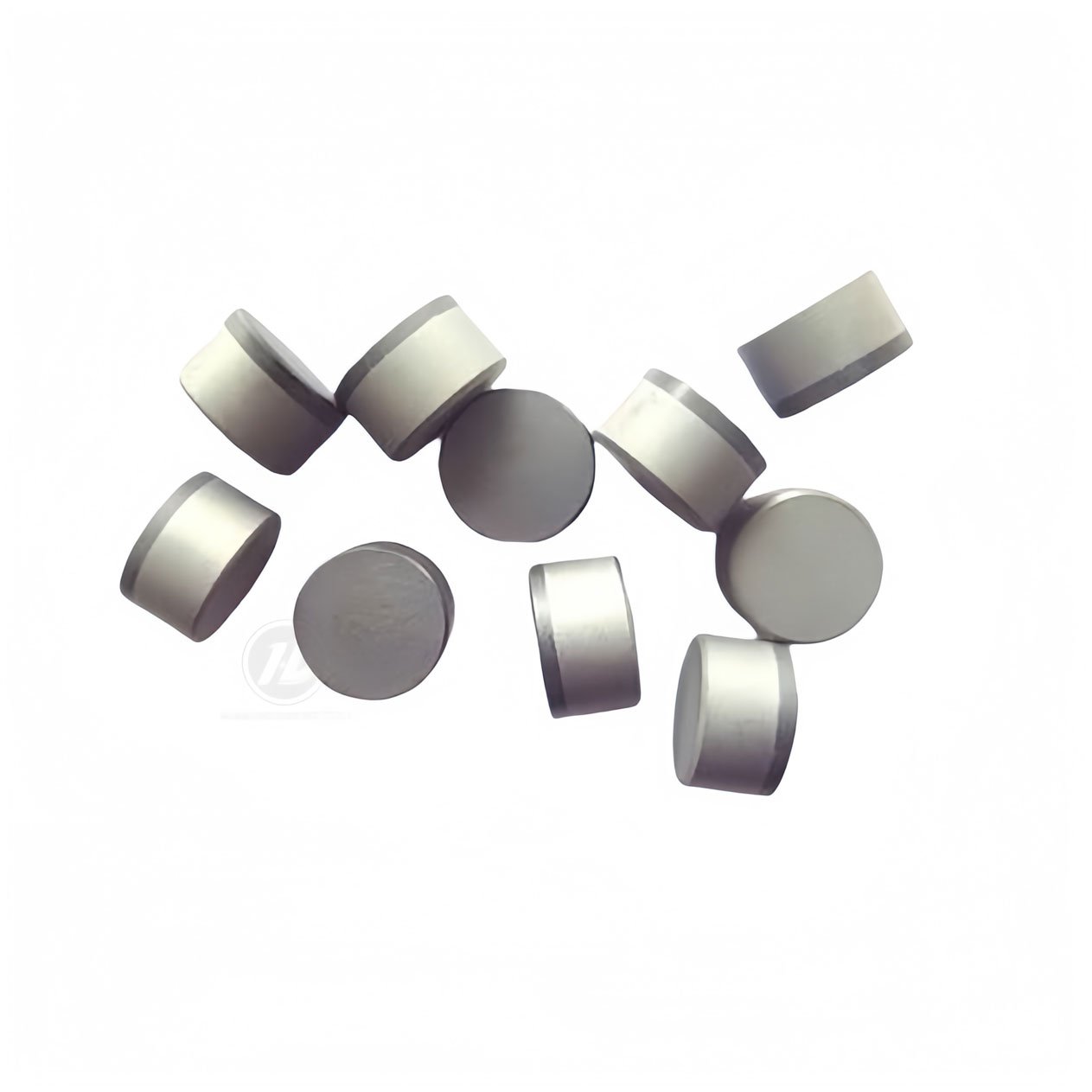

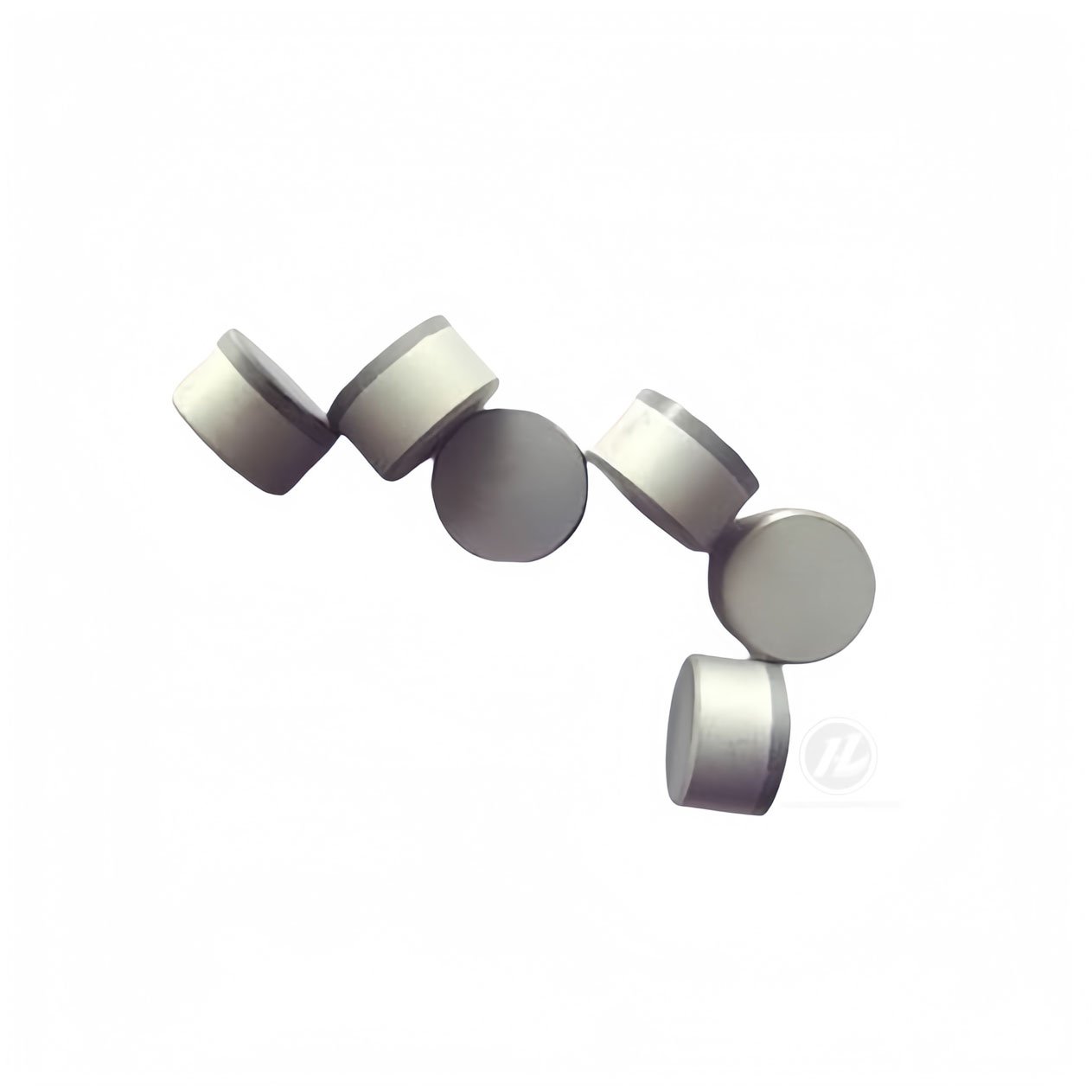

Round diamond segments are versatile and well-suited for a variety of tasks in floor preparation and restoration.
General concrete preparation: They are effective for removing light coatings, high spots, and for general surface preparation before applying new finishes.
Minimizing gouging: The lack of a specific corner or a leading straight edge in the round design helps to prevent aggressive gouging or scratching, especially on floors that are not perfectly level.
Finer grits: This segment shape is typically used with finer diamond grits (e.g., 80 grit and higher) to progress toward a smoother, more refined surface finish, leading into the concrete polishing stages.
Material compatibility: The metal bond materials (which can be customized as soft, medium, or hard) are designed to wear appropriately to expose new diamond crystals when grinding materials of different hardness.
When you order , kindly inform us the bond , dry or wet grinding , and diamond grit . tks .
