Split-PCD diamond grinding shoes are installed on those walk-behind concrete floor grinders for use. The versatile Split PCD scrapes and rips off coatings from the surface, like 1-3mm epoxy, urethane, mastic, glue etc. The PCD tips will never load up or smear the coatings like a metal bond diamond tool.
Split-PCD diamond grinding shoes are installed on those walk-behind concrete floor grinders for use. The versatile Split PCD scrapes and rips off coatings from the surface, like 1-3mm epoxy, urethane, mastic, glue etc. The PCD tips will never load up or smear the coatings like a metal bond diamond tool.
Velcro adaptor for floor polishing pad for easy installation of velcro back resin floor polishing pad onto floor grinding machine. Eg: REDILOCK, LAVINA, HTC, SKINMAKIN, SWITCH, STI, etc.
Trapezoid PCD is easy and quick set up of diamond tools, no need for multiple sets of diamond holder discs and no time consuming. Available for a variety of machine manufacturers. PCD grinding shoes are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor.
Magnetic Quick Change double bar grinding shoes are designed specifically for Iron Horse, ASL, Xingyi and Wolfpack. The two rectangular diamond segments providing a balance between aggressive cutting and a stable, smooth finish.
Email：
contact@hldiamondtools.com

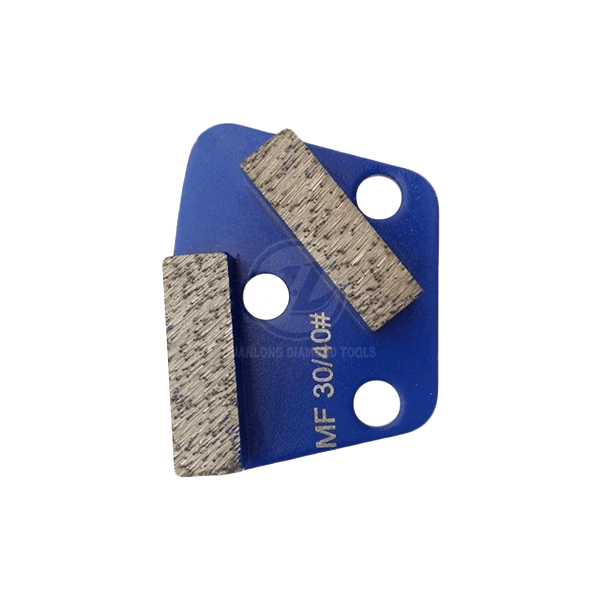

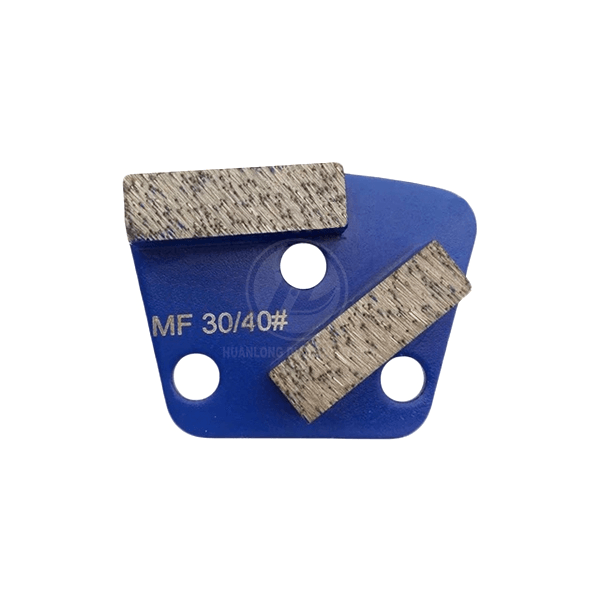

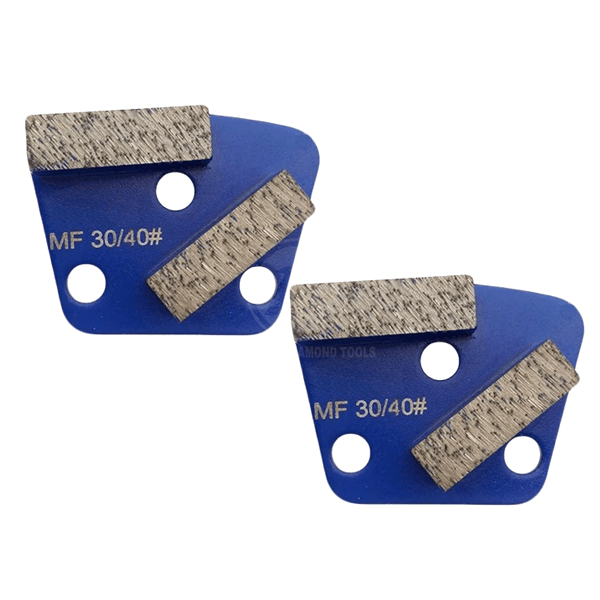

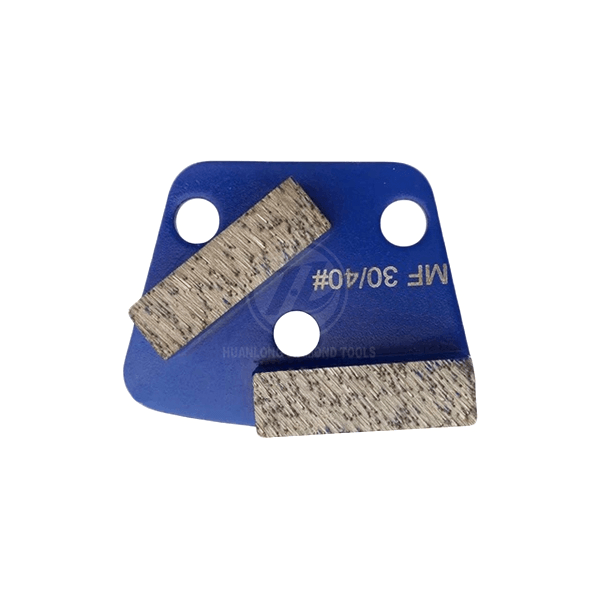

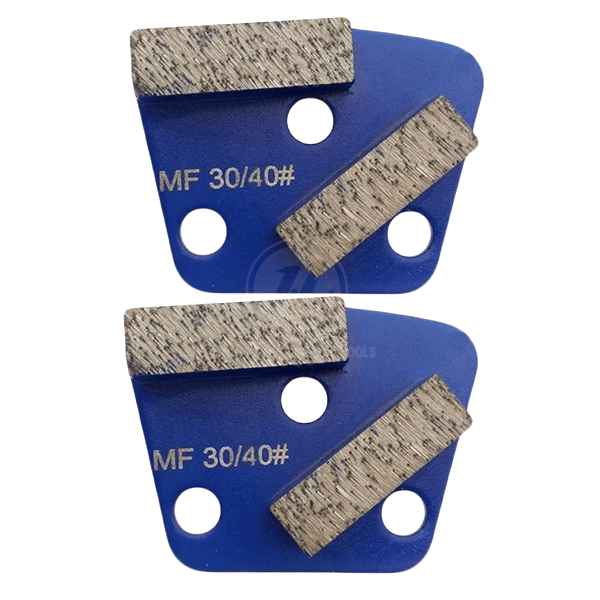

Trapezoid Double Bar segments Grinding Shoes
New QuickChange Tooling with Rectangular Segments for Soft, Medium, Hard and Extra Hard Concrete are recommended for aggressive grinding and light coating removal.
Specifications
System: Compatible with Iron Horse, ASL, Xingyi and Wolfpack.
Segment Size:
40 x 10 x 10mm / 40 x 10 x 12mm / 40 x 12 x 12mm / 40 x 12 x 15mm
Grit Range:
Available from very coarse (6/16 grit) for heavy removal to fine (120/150 grit) for smoothing.
Available bond:
extra soft bond for extra hard concrete
soft bond for hard concrete
medium bond for medium concrete
hard bond for soft concrete
extra hard bond for extra sofe concrete
Usage: Can be used for both wet and dry grinding applications.
Note：Please leave your email, our professional person will contact you asap!
