PCD Trapezoid Sase Diamond Grinding Shoes, 1* 1/2 PCD and 1 button segment with TCK inserts.
HuanLong offer various kinds of trapezoid PCD diamond to fit most of common grinding machines and other walk-behind floor machines with fast-release
holders/plates. The universal three holes fits most adapter plates.
8″ Premium quality professional grade diamond grinding head / disc / rings Available for Very Soft bond/ Soft bond/ Medium bond/ Hard bond, for Very Hard floor/ Hard floor/ Medium floor/ Soft floor.
Werkmaster single round grinding shoes are specialized diamond abrasive tools designed for aggressive concrete grinding, surface preparation, and initial polishing steps using the Plug N Go system. These metal-bond shoes are available in various bonds (soft, medium, hard) to suit different concrete hardness levels.
PCD Segment – 6 HolesTrapezoid PCD’s are great for thick coating removal, very aggressive. For best results remove bulk of coating without continued contact with concrete. Come back with an aggressive metal bond diamond segment and clean up any thin coating left behind. This will help preserve the life of the PCD segments.
Magnetic Quick Change double bar grinding shoes are designed specifically for Iron Horse, ASL, Xingyi and Wolfpack. The two rectangular diamond segments providing a balance between aggressive cutting and a stable, smooth finish.
Email：
contact@hldiamondtools.com

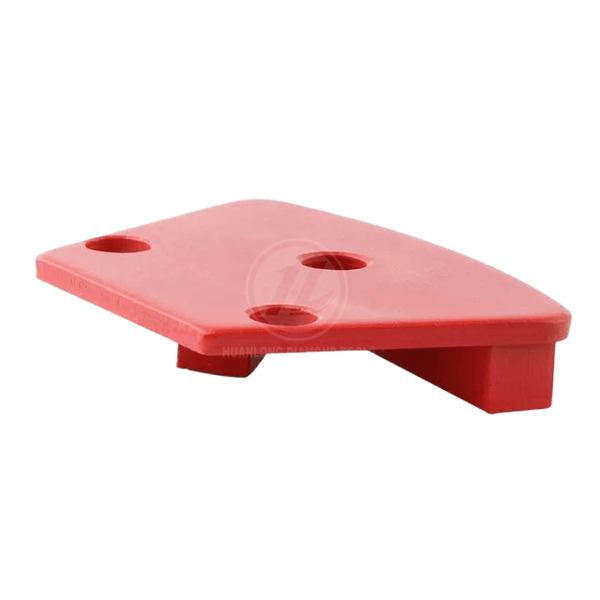

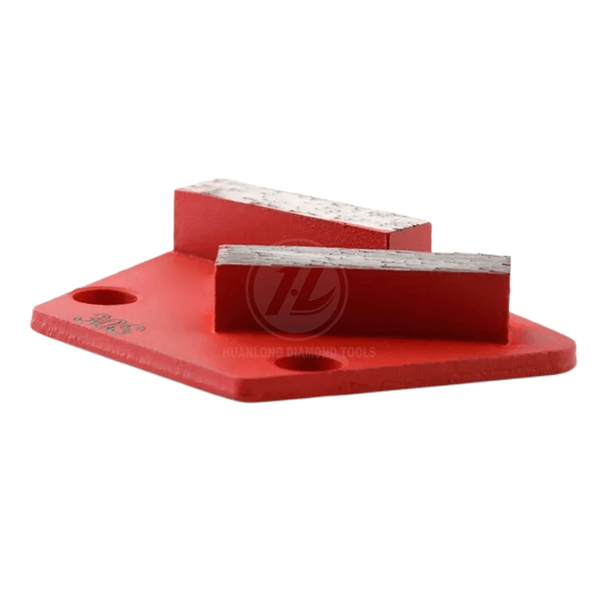

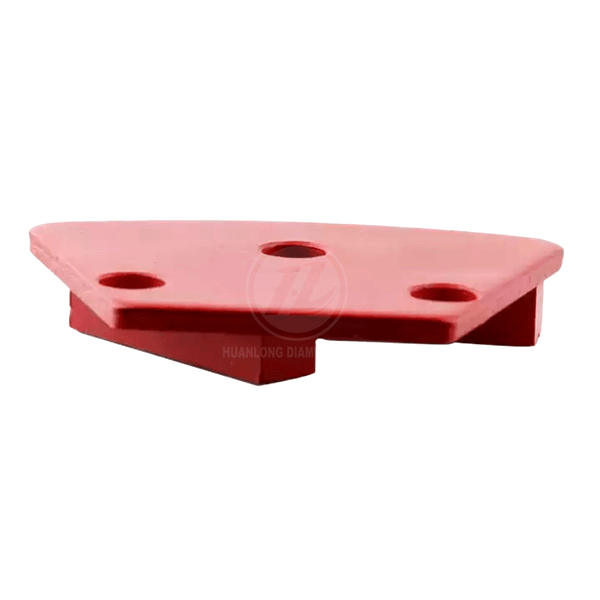

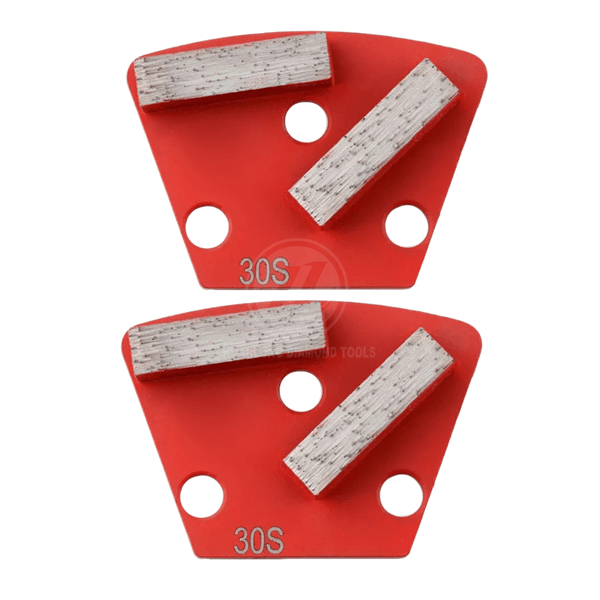

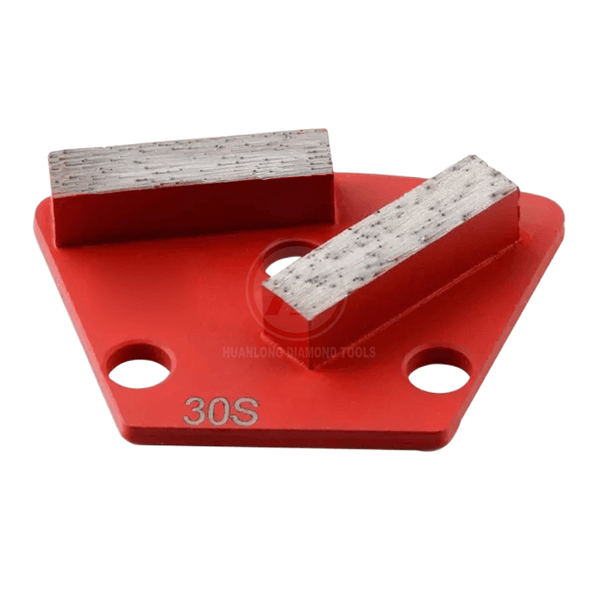

Trapezoid Double Bar segments Grinding Shoes
New QuickChange Tooling with Rectangular Segments for Soft, Medium, Hard and Extra Hard Concrete are recommended for aggressive grinding and light coating removal.
Specifications
System: Compatible with Iron Horse, ASL, Xingyi and Wolfpack.
Segment Size:
40 x 10 x 10mm / 40 x 10 x 12mm / 40 x 12 x 12mm / 40 x 12 x 15mm
Grit Range:
Available from very coarse (6/16 grit) for heavy removal to fine (120/150 grit) for smoothing.
Available bond:
extra soft bond for extra hard concrete
soft bond for hard concrete
medium bond for medium concrete
hard bond for soft concrete
extra hard bond for extra sofe concrete
Usage: Can be used for both wet and dry grinding applications.
Note：Please leave your email, our professional person will contact you asap!
Keywords: CW505、CW507、Class B water mill、7-inch turbine 30
