The 180mm PCD crossover diamond grinding cup wheel is designed for super fast removing hard and tacky surface coating including urethane epoxy, paint, glue, pool deck coating, waterproofing membrane, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
Split-PCD diamond grinding shoes are installed on those walk-behind concrete floor grinders for use. The versatile Split PCD scrapes and rips off coatings from the surface, like 1-3mm epoxy, urethane, mastic, glue etc. The PCD tips will never load up or smear the coatings like a metal bond diamond tool.
HTC double round grinding shoes are the go-to choice when you need a balance between aggressive material removal and a smooth, scratch-minimized finish. Because they have a rounded edge, they lack the sharp “leading edge” of a rectangular or arrow-shaped segment, which helps prevent deep gouging on uneven concrete.
The M14 thread 180mm Hybrid PCD diamond grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, ,waterproofing membrane,pool deck coating, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
Magnetic Quick Change double bar grinding shoes are designed specifically for Iron Horse, ASL, Xingyi and Wolfpack. The two rectangular diamond segments providing a balance between aggressive cutting and a stable, smooth finish.
Email：
contact@hldiamondtools.com

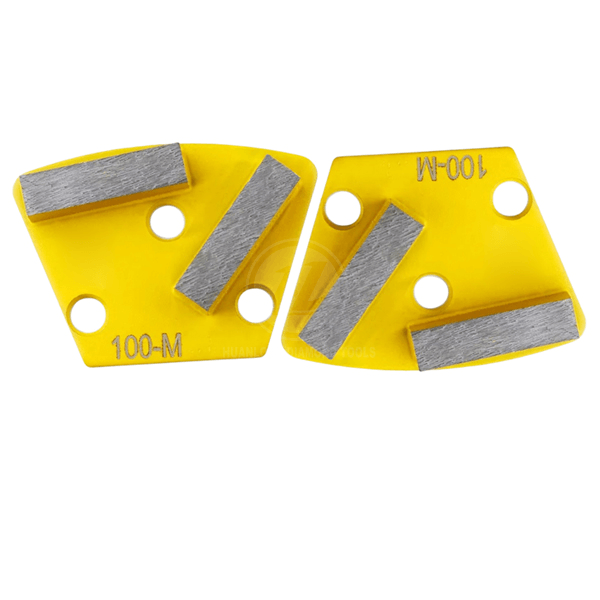

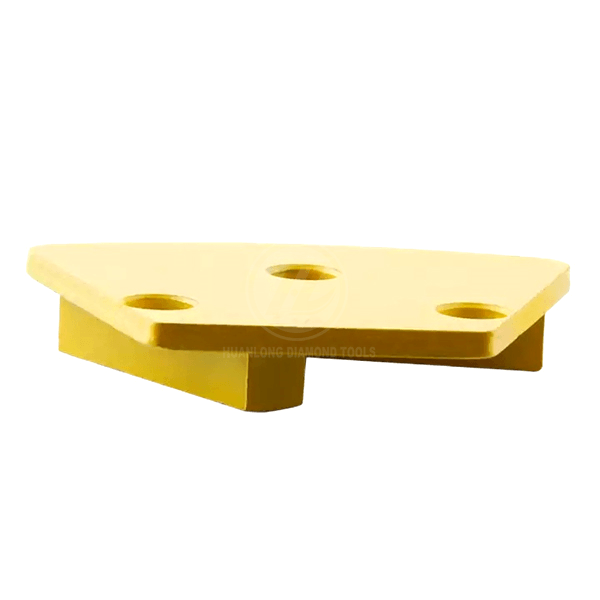

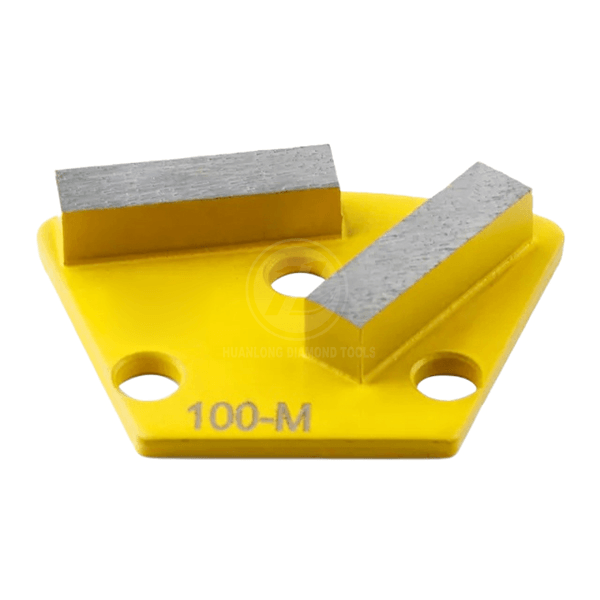

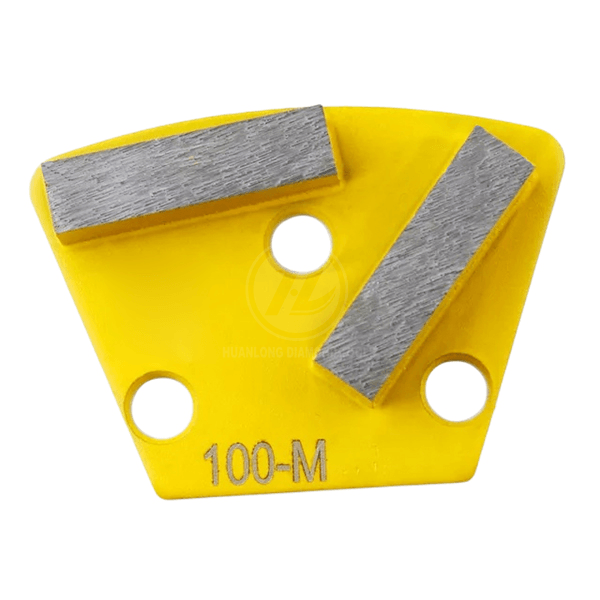

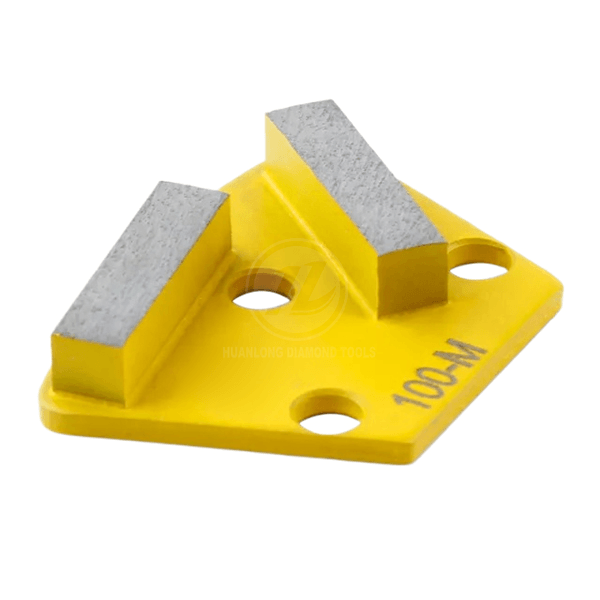

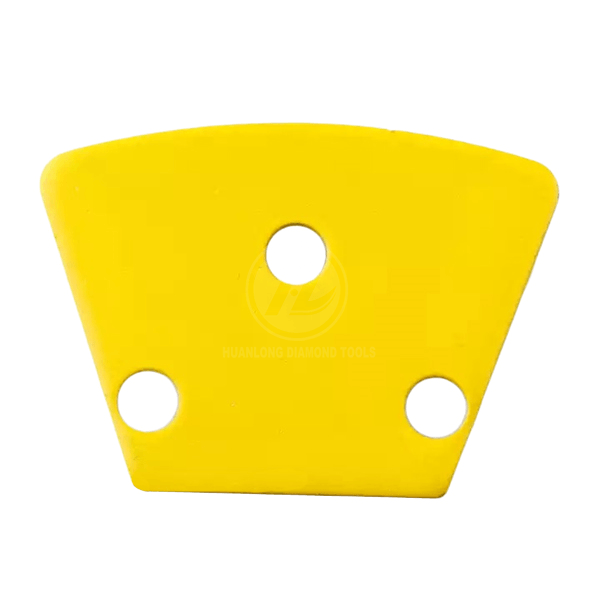

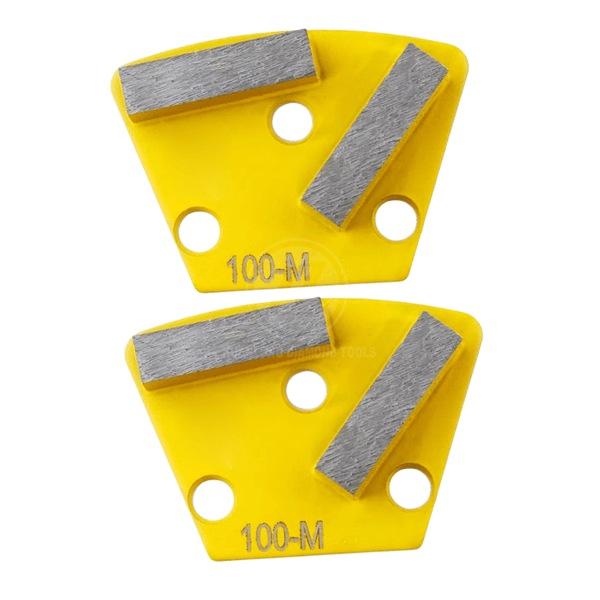

Trapezoid Double Bar segments Grinding Shoes
New QuickChange Tooling with Rectangular Segments for Soft, Medium, Hard and Extra Hard Concrete are recommended for aggressive grinding and light coating removal.
Specifications
System: Compatible with Iron Horse, ASL, Xingyi and Wolfpack.
Segment Size:
40 x 10 x 10mm / 40 x 10 x 12mm / 40 x 12 x 12mm / 40 x 12 x 15mm
Grit Range:
Available from very coarse (6/16 grit) for heavy removal to fine (120/150 grit) for smoothing.
Available bond:
extra soft bond for extra hard concrete
soft bond for hard concrete
medium bond for medium concrete
hard bond for soft concrete
extra hard bond for extra sofe concrete
Usage: Can be used for both wet and dry grinding applications.
Note：Please leave your email, our professional person will contact you asap!
