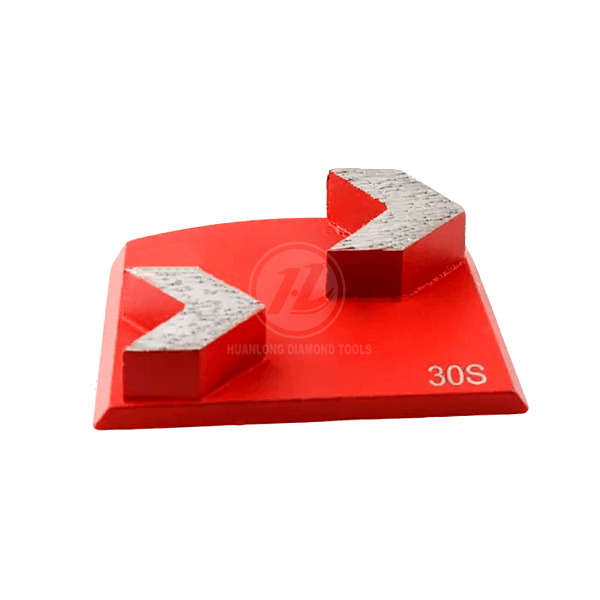

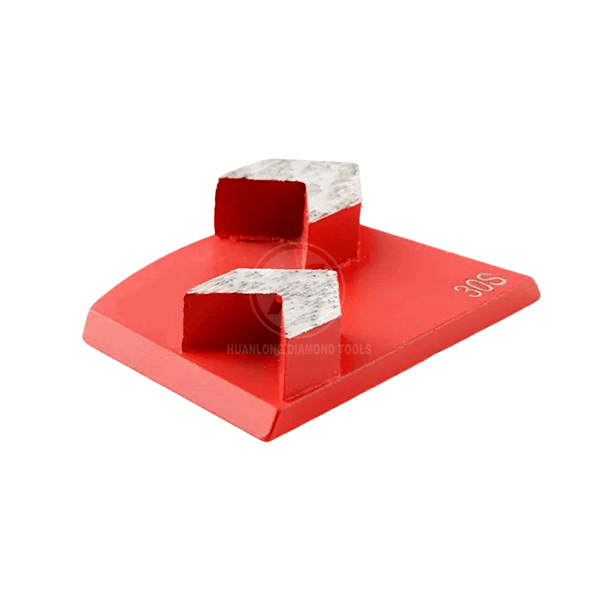

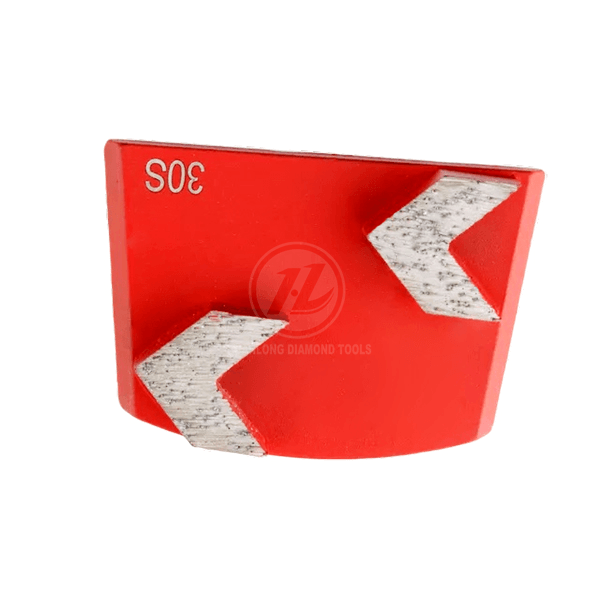

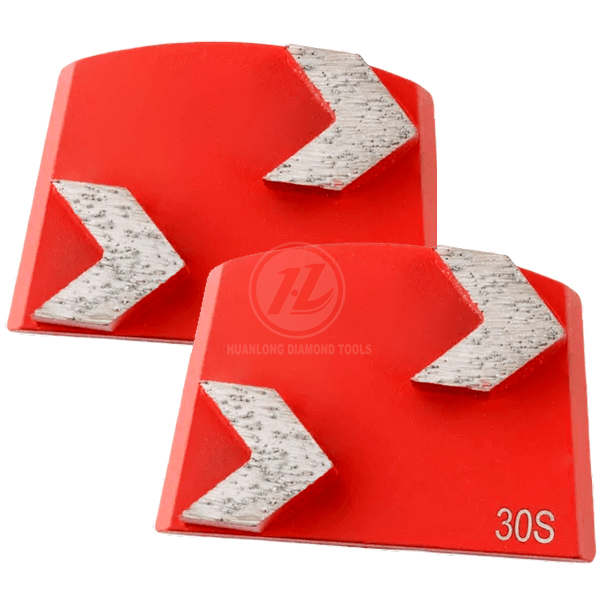

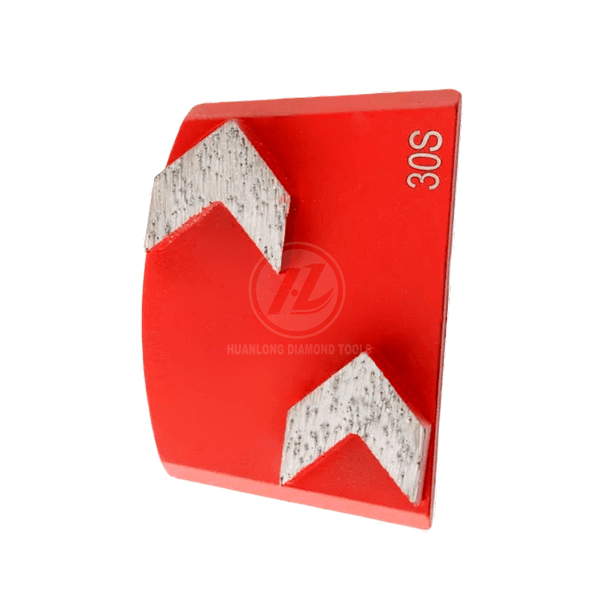

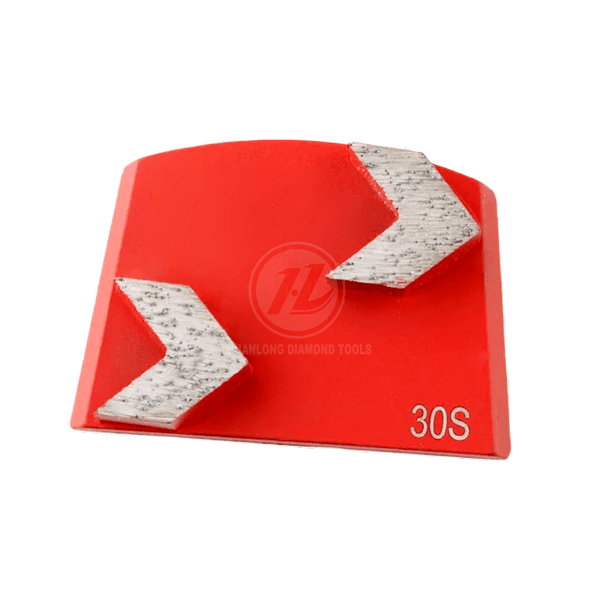

Huanlong Quick Change diamond grinding shoe Anti-clock wise rotation for Lavina grinder, 2 Arrowsegments
Application: Huanlong Quick change grinding shoe with 2 Arrow shape diamond segments is wildly use for concrete floor grinding, floor preparation, coatings removal and concrete polishing . Suitable for Lavina, Onfloor, EDCO etc Floor Grinding System.
Arrow segments for very aggresive grinding performance. Ideal choice for coating removal or opening up floor surface.
Using the top quality diamonds and metal material with high segment diamond concentration, Huanlong Diamond Grinding shoes perform excellent effciency compare to tradional abrasive diamond tooling.
Segment number: 1, 2 Arrow segments or upon request
Segment height: 10mm/12mm or upon request
Grit: 16#,25#,30#,40#,60#, 80#,100#,120# or upon request
Segment bond: Super Soft Extra Soft, Soft, Medium, Hard, Extra Hard or upon request.
Working type: Dry grinding / Wet grinding
