HTC PCD is designed to efficiently remove various hard or thick coatings, such as epoxy resin, glue, paint, varnish, and resin. The unique feature of this accessory lies in its detachable design, which allows users to quickly replace different types of grinding blocks according to various grinding requirements (such as removing coatings or fine polishing).
“PCD Plug WITH 3 PCDs are designed to remove coating over a surface equal to a troweled surface and will not damage the concrete. One of the 3 PCDs act as a stabilizer and depth guide, and reduce the gauging of the floor caused by the aggressive pcd segments. Diamond plug for Floorex grinder, with different shapes segments. But what is more important, especially in the initial grinding steps, is the bond or hardness of the tools. “
Redi Lock adapter is a tool holder and quick-change system, primarily used on Husqvarna concrete floor grinding machines, that allows for the fast and hassle-free attachment and removal of various diamond grinding tools. The system ensures a secure fit and protects the diamond tooling, enhancing efficiency and productivity in surface preparation projects.
Redi-Lock with 3×1/4 PCD & 1 Bar Segment is a precision removal tool that combines the aggressive “shredding” power of multiple PCD chips with the stability of a metal-bond diamond bar.It is arguably the most balanced tool in the Redi-Lock PCD family, designed specifically to avoid the “all-or-nothing” aggressiveness of larger PCDs.
National Flooring Grinder Toolings Metal Bond Diamond Toolings are designed for grinding and polishing concrete floors.Grinding Shoes are designed with different Segments for extended life and lower grinding cost per square yard compared to the competition.
Email：
contact@hldiamondtools.com

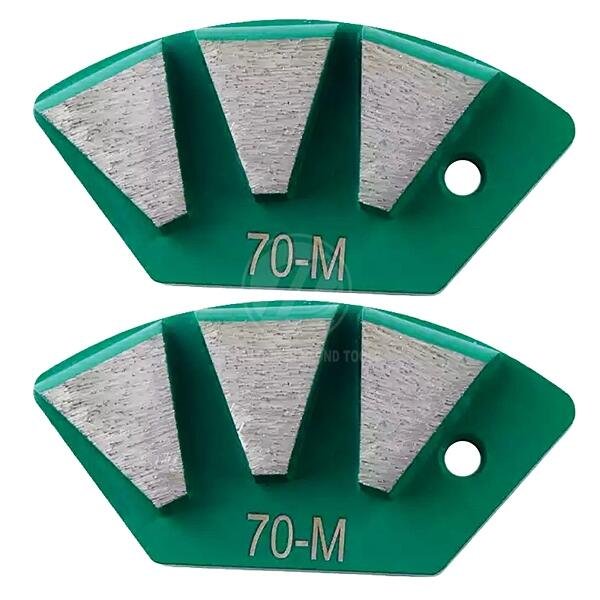

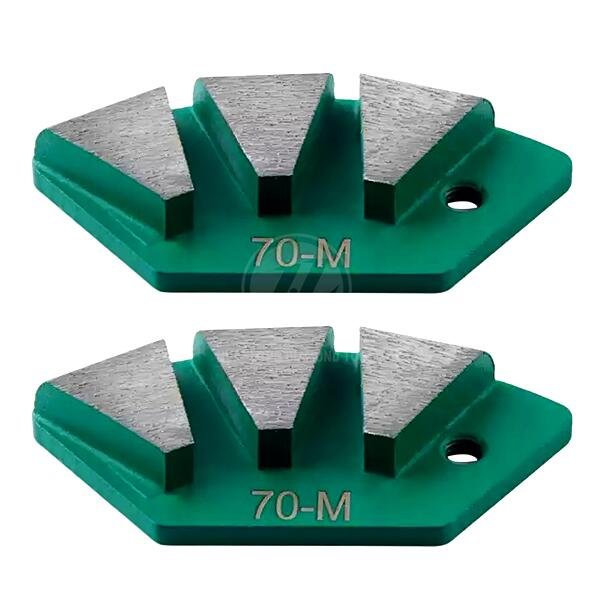

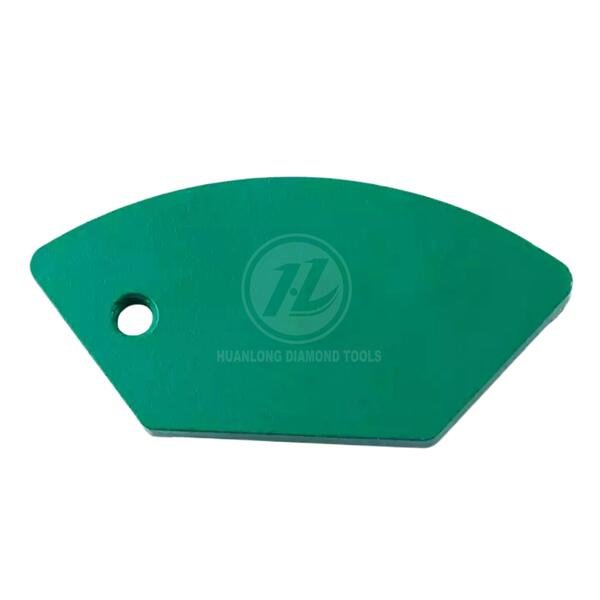

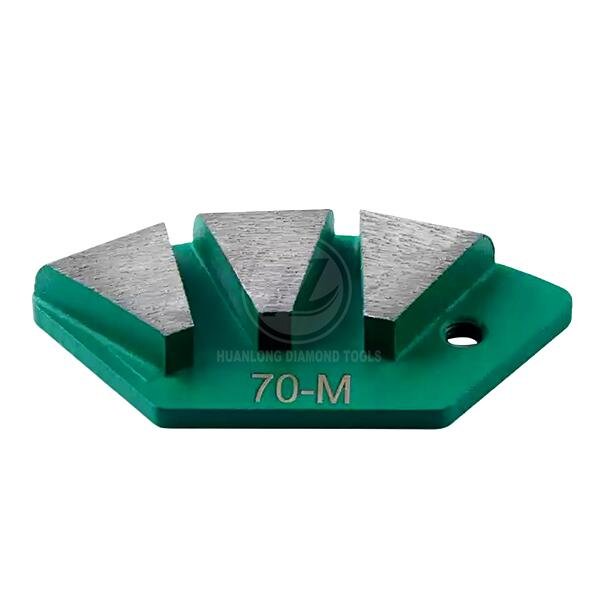

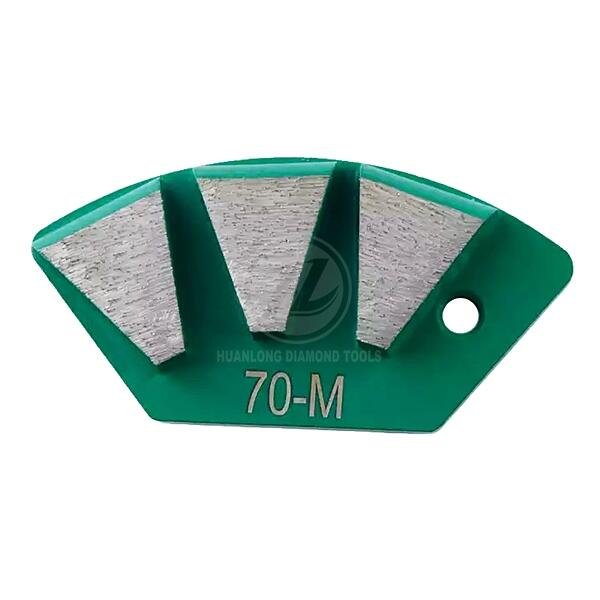

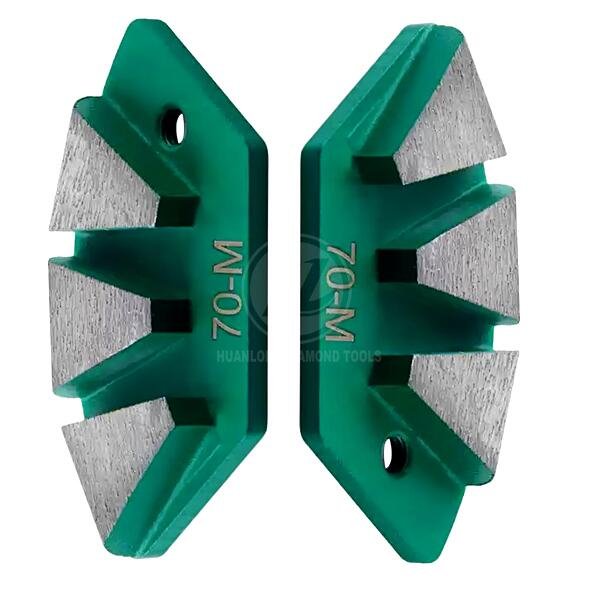

National Planetary Grinder Tooling- 3X Triangle Segments Metal Bond Diamonds
Diamond grinding tooling designed for National Flooring Equipment floor grinding machines. Current available bonding include:
PCD: ideal for epoxy, paint, glue, mastics, and coatings. Not to be used directly on concrete and any metal material
Soft bond: ideal for hard concrete
Medium bond: ideal for medium-soft to medium concrete
Hard bond: ideal for soft concrete for long lifetime
Medium bond suitable for grinding medium-soft to medium concrete. Number of grinding segments determines the pressure applied on each diamond segment, thus the aggressiveness of grinding. A lower number of segments corresponds to a more aggressive grind.
Grit: 6#, 16#, 24#, 30#, 50#, 80#, 100#, 120#, 150#, 200#
Color: Available in orange, yellow, red, black, purple and blue
Grinding Machines: National Flooring Equipment’s grinding shoes are designed to be compatible with their range of machines, including the Helix Grinder, 8274-4, GP500, GP700, and GP3000 models. The specific mounting style (e.g., trapezoid, screw-on) ensures a proper fit for their equipment.
Grinding Method: Wet or dry
Note：Please leave your email, our professional person will contact you asap!
