Redi Lock adapter plates are primarily used in concrete floor grinding to enable the use of Husqvarna Redi-Lock diamond tools on grinding machines from other brands like HTC, Scanmaskin, or Lavina. They save costs by eliminating the need to purchase brand-specific tooling for every machine.
Diamond grinding discs, also known as concrete grinding head discs or floor grinding segments. They are typically used on grinders to flatten, polish, or remove old coatings from concrete, stone, or terrazzo floor surfaces through high-speed rotation.
Metal Bond Rectangular diamond segments grinding segments are used in heavy-duty cutting and grinding tools for materials like marble, concrete, and limestone, prized for their cutting efficiency and durability. Their simple, flat shape maximizes the contact area with the material during a straight push-pull cutting motion, ensuring the full utilization of the diamond particles.
The Redi-Lock with 1/2 PCD and 2 Arrow Segments is an elite heavy-duty removal tool. It combines the raw scraping power of a half-round PCD with the precision “slicing” of arrow-shaped diamond segments. This is a specialized configuration typically used when you need to strip a thick, stubborn coating and prep the concrete for a new high-build system in a single pass.
The 9 PCD chip grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, ,waterproofing membrane,pool deck coating, thick mastic, old and new epoxy coating,VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor.
Email：
contact@hldiamondtools.com

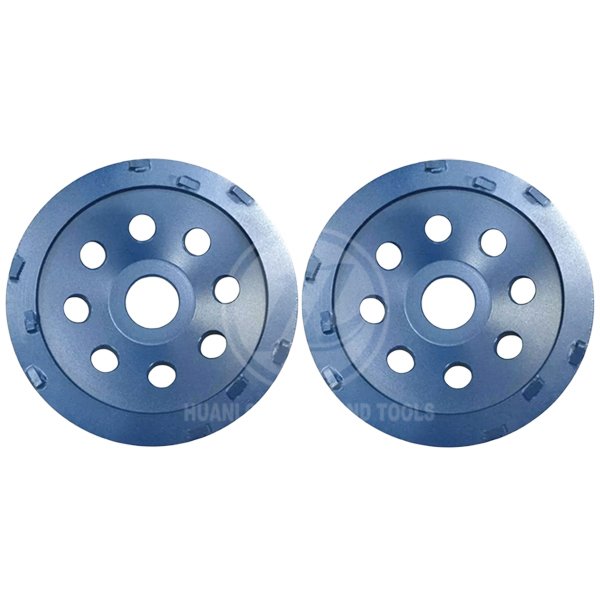

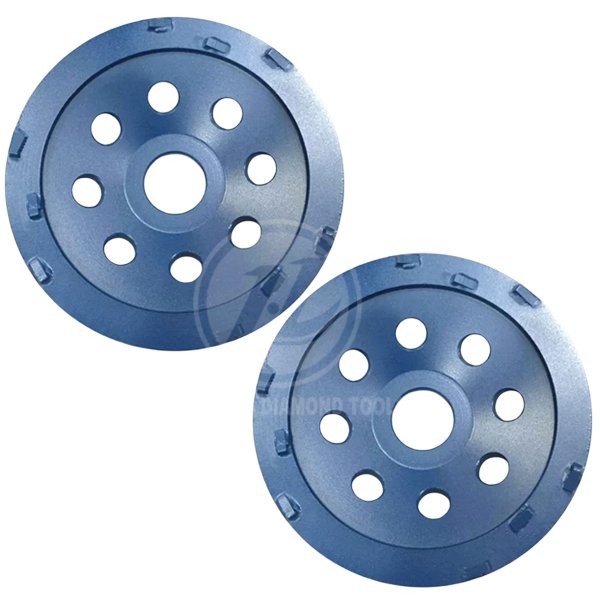

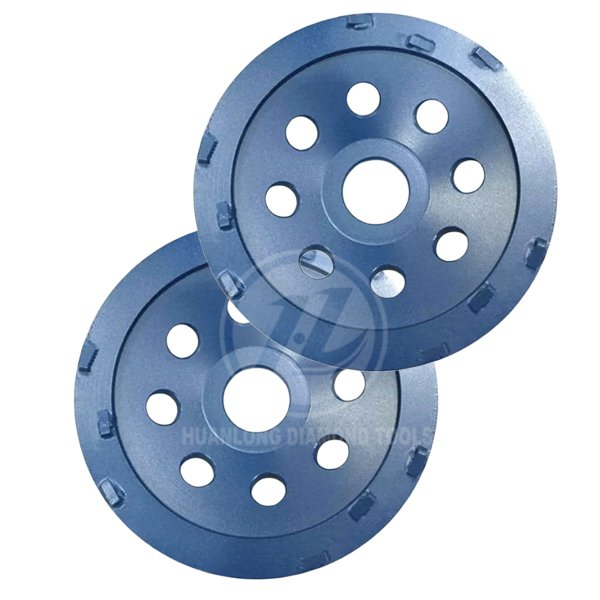

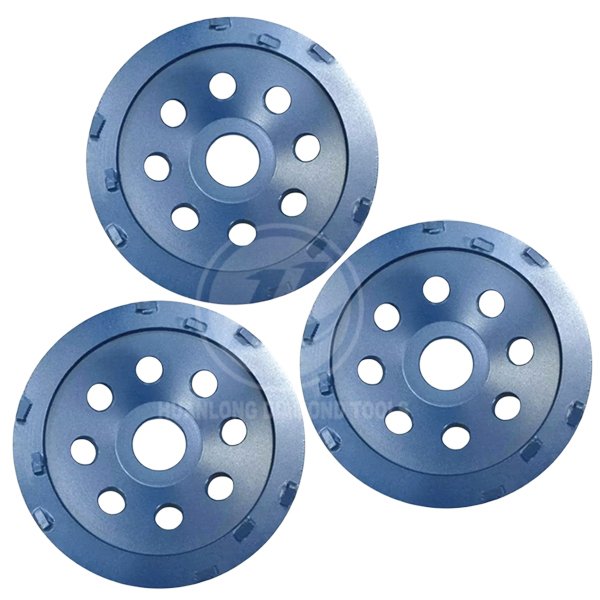

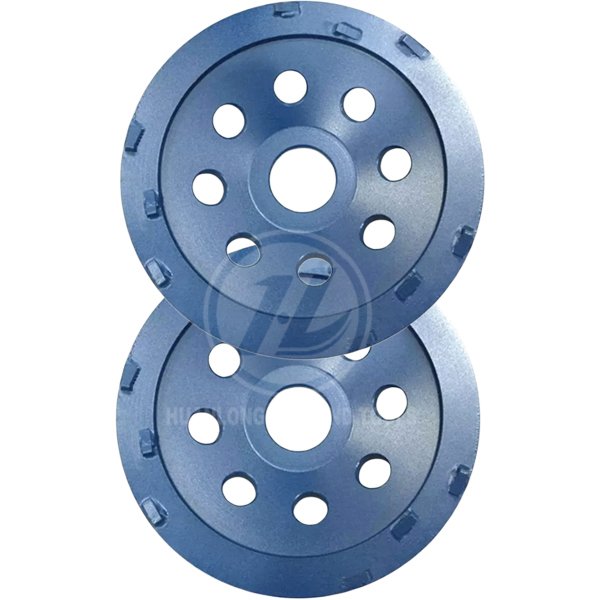

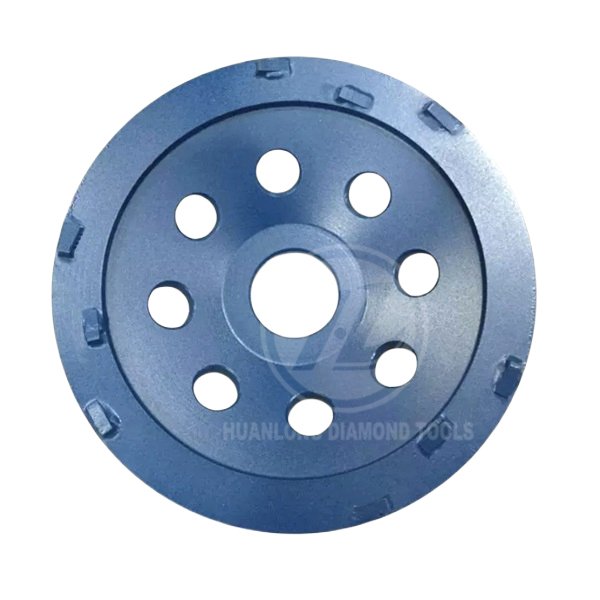

HuanLong 9 PCD chip Diamond Grinding Disc for Epoxy Glue Coating Removal
PCD Grinding CUP WHEEL
Application: Huanlong PCD9″ 1/8 PCD segment Grinding cup wheel is excellent choice for remove medium/heavy epoxy ,coatings mastic and glues. Using the highest quality polycrystalline diamonds to rapidly lift material. It’s scraping action eliminates gumming up of segments and maximizes production. Using small size 1/8 PCD Chip to minimize damage/gouging in the floor when removing glues and mastics.The super aggrisive PCD segment performsexcellent effciency compare to tradional abrasive diamond tooling, super fast action on common coatings such as epoxy, mastic, glue, bitumen and resin. Standard 22.23mm bore is perfect for using on hand holded angle grinders for coating removal jobs.
Various types of base cup wheel optionsavailable for different angle grinders, please contact us for availability and detail.
Segment number: available for 12, 15 or 24 segments or upon request.
Size: 100mm/4″, 115mm/4.5″,125mm/5″, 180mm/7″, or upon request.
Bore size: 22.23mm, M14 ,5/8″- 11 or upon request
Extremely aggressive for rapid coating removal process
Working type: Dry grinding / Wet grinding
