Using the metal bonding agent is to fix the diamond on the tool body, and it wears along with the diamond’s wear, exposing new sharp diamonds to maintain cutting performance.The cutting segments come in various shapes and sizes (such as Arrow-type, Rhombus-type, stepped type, segmented type, etc.), designed to optimize chip removal, cooling, and reduce friction, thereby improving cutting efficiency and extending tool life.
Blue Trapezoid PCD 1/4 shape Grinding Shoes HTC PCD Tools Concrete Floor Grinding Disc For Epoxy Coating Removal PCD grinding disc 9pcs per set
Huanlong M14 L shape Segment Turbo diamond grinding cup wheel, For fast and aggresive grinding hard material such as concrete, Terrazzo, Engineered Stone, granit, marble and etc.
“PCD Plug WITH 3 PCDs are designed to remove coating over a surface equal to a troweled surface and will not damage the concrete. One of the 3 PCDs act as a stabilizer and depth guide, and reduce the gauging of the floor caused by the aggressive pcd segments. Diamond plug for Floorex grinder, with different shapes segments. But what is more important, especially in the initial grinding steps, is the bond or hardness of the tools. “
The 7″ sharp edged PCD segments diamond grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, pool deck coating, waterproofing membrane, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
Email：
contact@hldiamondtools.com

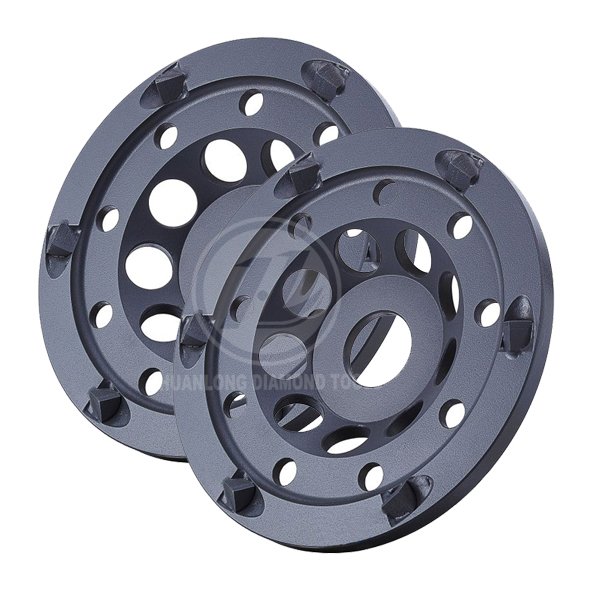

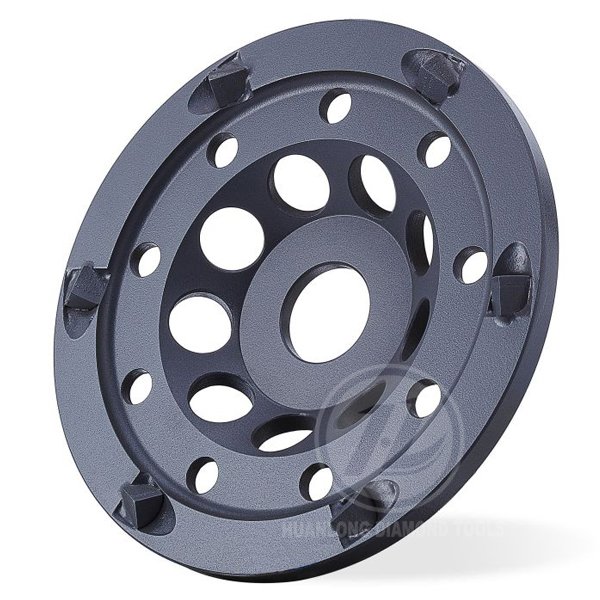

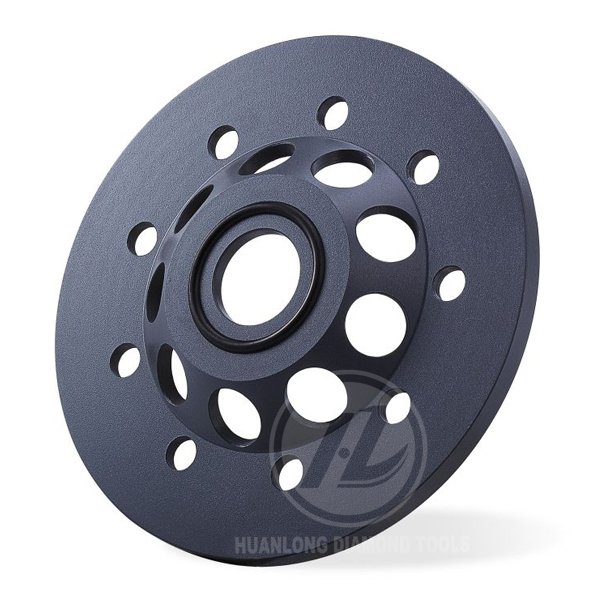

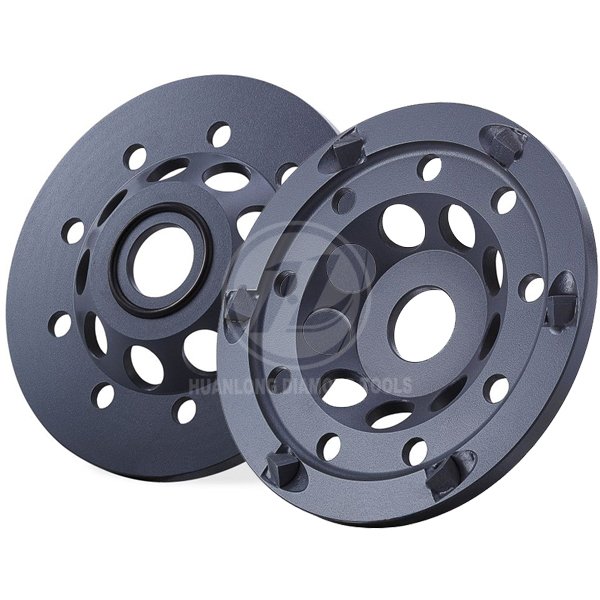

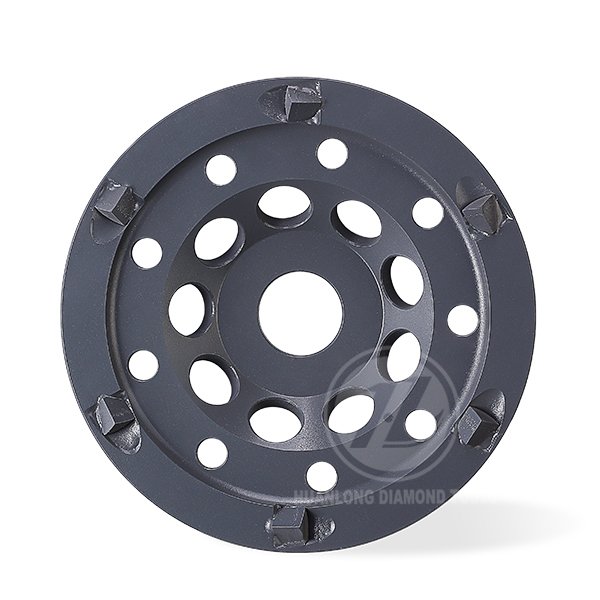

HuanLong 180mm sharp edged PCD Diamond Grinding Disc with extra cooling holes, 6 *1/4 sharp edged PCD segments for Epoxy Glue Coating Removal
PCD Grinding CUP WHEEL
Application: Huanlong sharp edged PCD segment Diamond Grinding cup wheel is a professional grade coating removal tool, The special designed sharp edged PCD segment makes this PCD cup wheel extra aggrisive than normal PCD segment. Extra cooling holessinificant increase air flow to helps cooling down and aviod gumming up of dust during grinding process. Using the highest quality polycrystalline diamonds to rapidly lift material, performing outstanding effciency compare to tradional abrasive diamond tooling, rapid action on common coatings such as epoxy, glue, mastic, bitumen and resin. Standard 22.23mm bore is perfect for fitting hand holded angle grinders for coating removal jobs.
Various types of base cup wheel optionsavailable for different angle grinders, please contact us for availability and detail.
Size: 100mm/4″,125mm/5″, 180mm/7″, or upon request.
Bore size: 22.23mm, M14 ,5/8″- 11 or upon request
Extremely aggressive for rapid coating removal process
Working type: Dry grinding / Wet grinding
