The ten-segment grinding tool is made of high-quality diamond grinding material, which is evenly embedded in each cutting segment. The rounded blade edge design minimizes scratches to the maximum extent, extends service life, and boasts excellent durability and grinding performance. The metal cutting segments are suitable for both wet and dry operations, while the ten-segment end face design provides the optimal chip or slurry discharge channel.
The sharp edged PCD segments diamond grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, pool deck coating, waterproofing membrane, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
Diamond Grinder Quick Change Adaptor Plate is designed to connect various diamond grinding blocks or grinding discs to bottom-uncompatible concrete grinding machines.
Magnetic Quick Change double bar grinding shoes are designed specifically for Iron Horse, ASL, Xingyi and Wolfpack. The two rectangular diamond segments providing a balance between aggressive cutting and a stable, smooth finish.
The 7″ sharp edged PCD segments diamond grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, pool deck coating, waterproofing membrane, thick mastic,VCT mastic, black tar adhesive, old and new epoxy coating, as well as thick rubber materials on the concrete floor.
Email：
contact@hldiamondtools.com

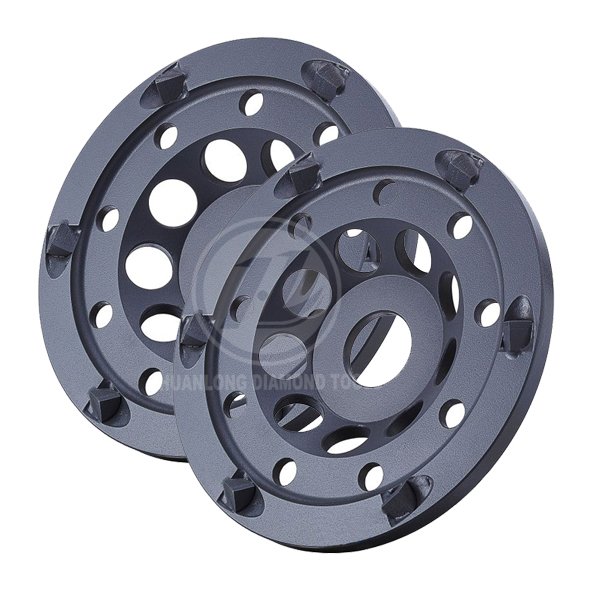

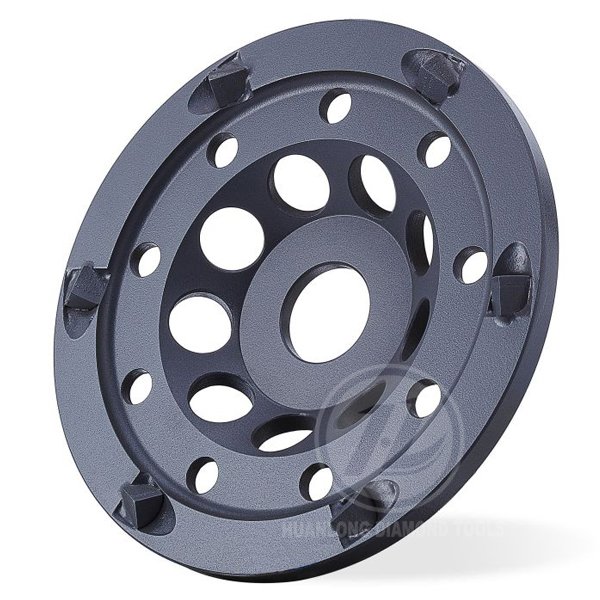

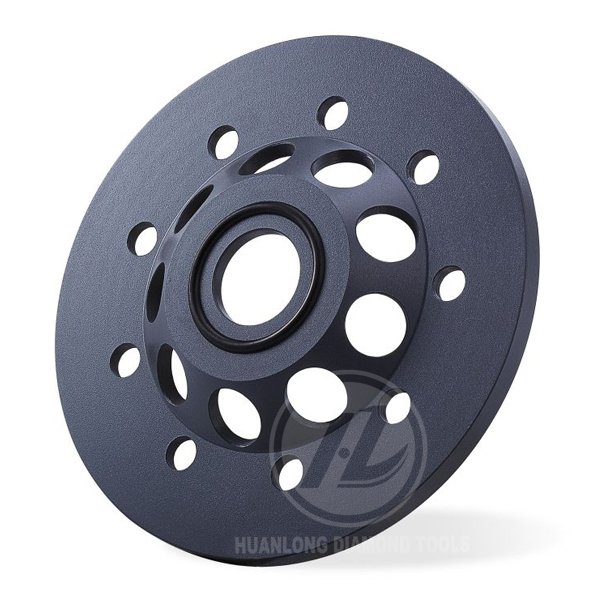

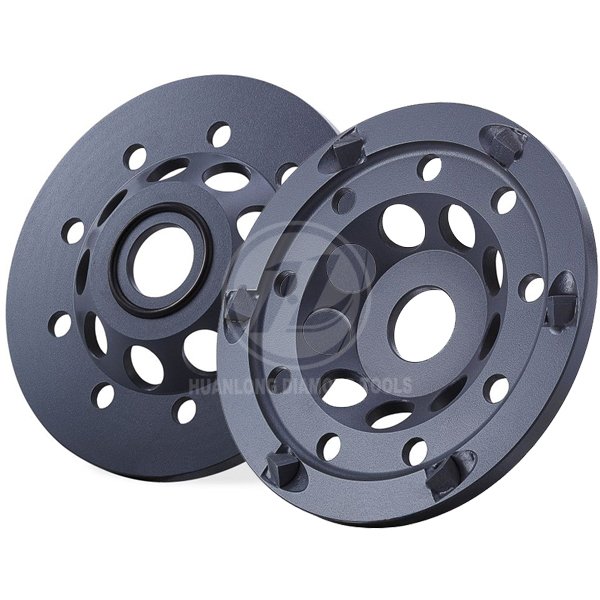

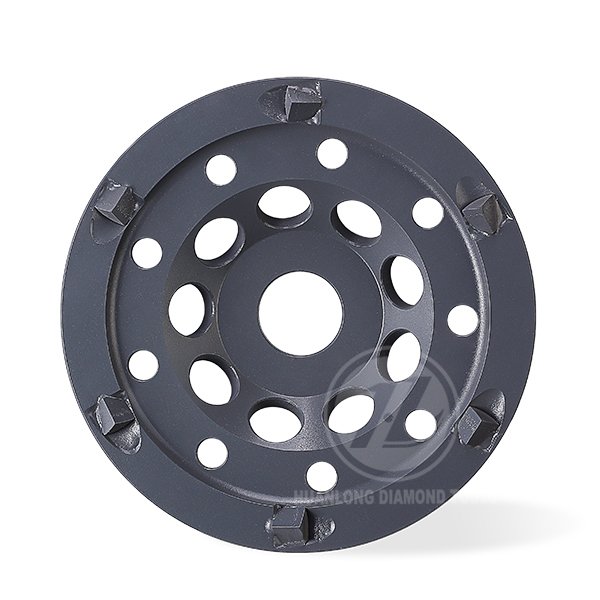

HuanLong 180mm sharp edged PCD Diamond Grinding Disc with extra cooling holes, 6 *1/4 sharp edged PCD segments for Epoxy Glue Coating Removal
PCD Grinding CUP WHEEL
Application: Huanlong sharp edged PCD segment Diamond Grinding cup wheel is a professional grade coating removal tool, The special designed sharp edged PCD segment makes this PCD cup wheel extra aggrisive than normal PCD segment. Extra cooling holessinificant increase air flow to helps cooling down and aviod gumming up of dust during grinding process. Using the highest quality polycrystalline diamonds to rapidly lift material, performing outstanding effciency compare to tradional abrasive diamond tooling, rapid action on common coatings such as epoxy, glue, mastic, bitumen and resin. Standard 22.23mm bore is perfect for fitting hand holded angle grinders for coating removal jobs.
Various types of base cup wheel optionsavailable for different angle grinders, please contact us for availability and detail.
Size: 100mm/4″,125mm/5″, 180mm/7″, or upon request.
Bore size: 22.23mm, M14 ,5/8″- 11 or upon request
Extremely aggressive for rapid coating removal process
Working type: Dry grinding / Wet grinding
Note：Please leave your email, our professional person will contact you asap!
Keywords: CW505、CW507、Class B water mill、7-inch turbine 30
