Resin Snail Lock Polishing Pads for In-line Flat Edge Wet Polishing
The Snail Lock Polishing Pads or Granite Polishing Discs have been engineered to eliminate workpiece end scratches and polish flat edges with a premium finish and quick, high-quality results.Available in Grit 50, 100, 200, 400, 800, 1500, and 3000
Polar Magnetic Fittiing Diamond Trapezoid Single Button Segment Grinding Disc are less aggressive and leave a more subtle scratch pattern, using round segments often makes for an easier transition into resin polishing pads.
Diamond segments have many different kinds of shape: Arrow, Rhomboid, Rectangle, Curved Rectangle, Coffin, Oval, Button, etc. Rounded shape is ideal for achieving a smooth finish and minimizing deep scratching, particularly on uneven floors.
Diamond grinding plugs, which are industrial tools used with floor grinding machines to grind, level, and polish hard, non-metallic surfaces like concrete, terrazzo, and marble. They are effective for removing coatings, adhesives, and achieving specific surface profiles
The PCD tool uses a scraping action, making it very suitable for removing pressure-sensitive coatings, adhesives, and waterproof materials with a thickness exceeding 3 millimeters. Traditional diamond cup wheels may become clogged or overheated by these materials.
Email：
contact@hldiamondtools.com
PCD (Polycrystalline Diamond) Grinding Blocks/Segments, PCD Scrapers or Grinding Shoes. They are designed to remove thick coatings, adhesives, epoxy resins, varnishes, and paints from concrete surfaces.
Main Uses and Features
• Removal of Thick Coatings: PCD tools use a scraping action, making them ideal for removing pressure-sensitive coatings, adhesives, and waterproofing materials thicker than 3mm. Traditional diamond cup wheels may become clogged or overheated by these materials.
• Material: PCD segments are made from synthetic diamond particles sintered together under high temperature and pressure, offering extremely high hardness and wear resistance.

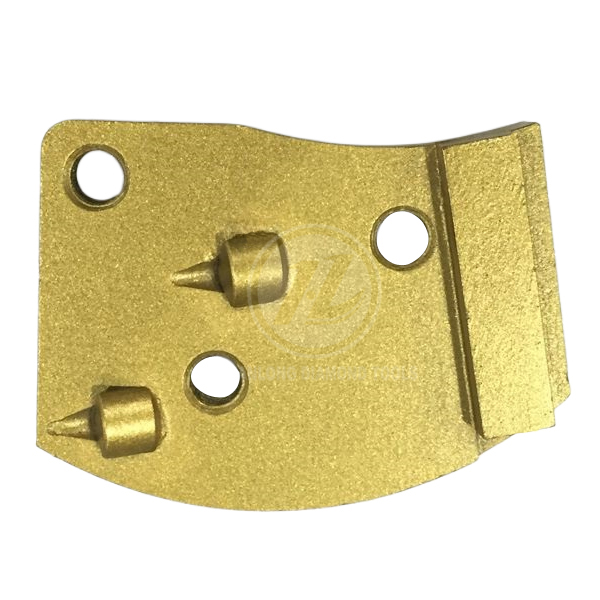

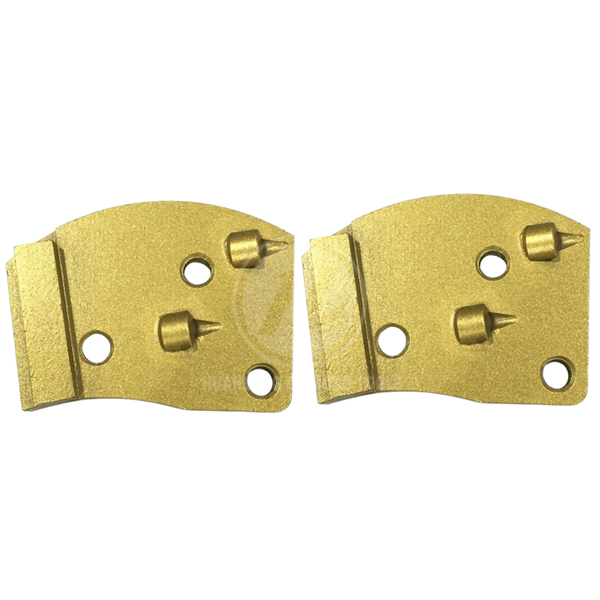

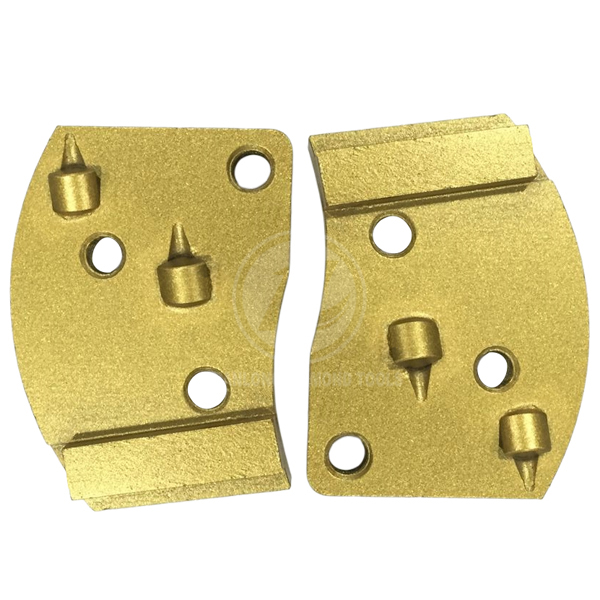

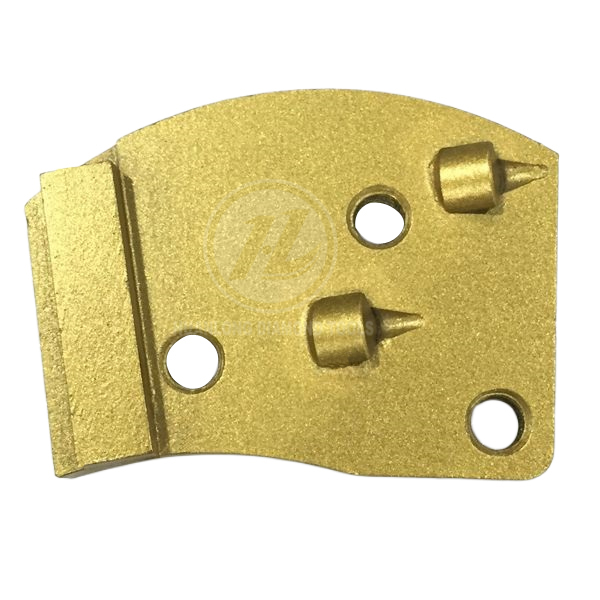

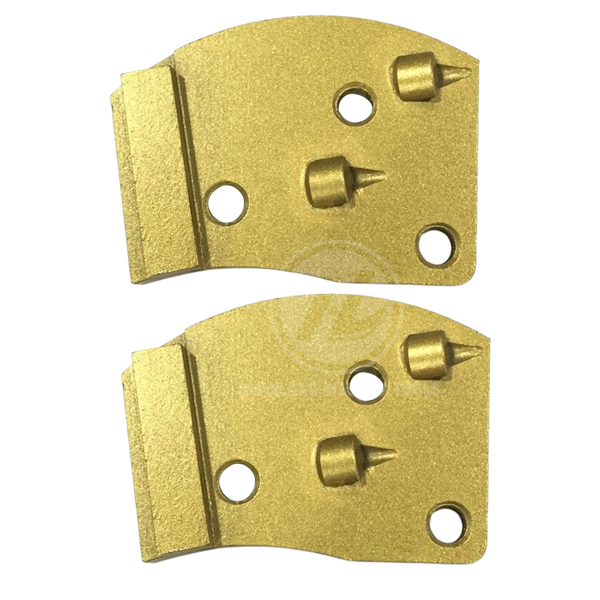

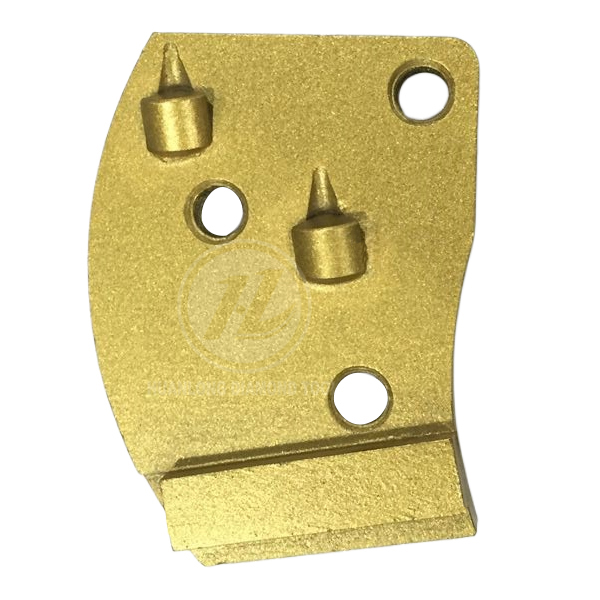

• Design: The tool shown in the image has a PCD segment and a metal stabilizing block (or sacrificial block). The stabilizing block acts as a depth guide, reducing the likelihood of the PCD segment digging too deeply into the concrete surface and causing damage (e.g., leaving scratches).
• Application Areas: Widely used in construction, renovation, and industrial fields for floor preparation, structural renovation, and road maintenance.
Usage Precautions
• Directionality: PCD tools typically have directionality (clockwise or counterclockwise rotation) and require selecting the correct tool based on the grinder’s rotation direction
