5/8″-11 7 inch Zigzag Segment Diamond grinding cup wheel with turbo cooling holes, Aggresive Grinding Disc for concrete Granite Marble etc

Huanlong 7″ Zigzag Segment Turbo diamond grinding cup wheel, For fast and aggresive grinding hard material such as concrete, Terrazzo, Engineered Stone, granit, marble and etc.

SKU diamond cup wheel30 Category

Email:

contact@hldiamondtools.com

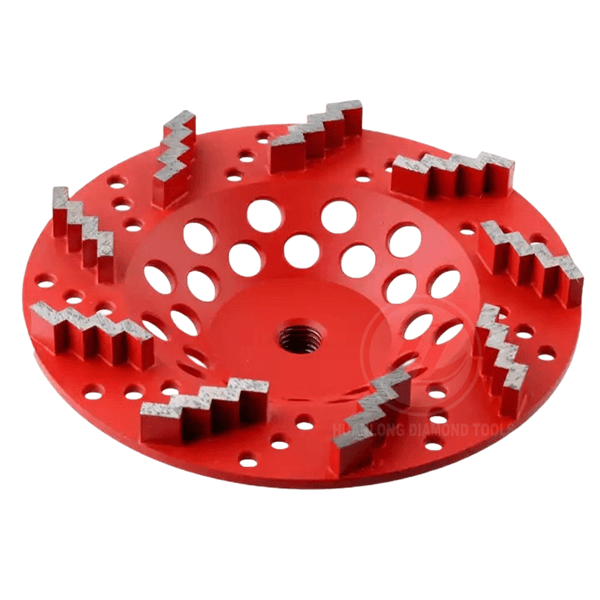

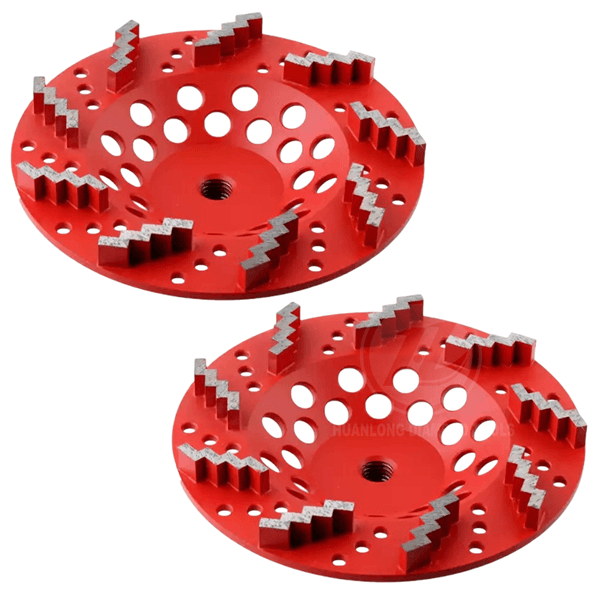

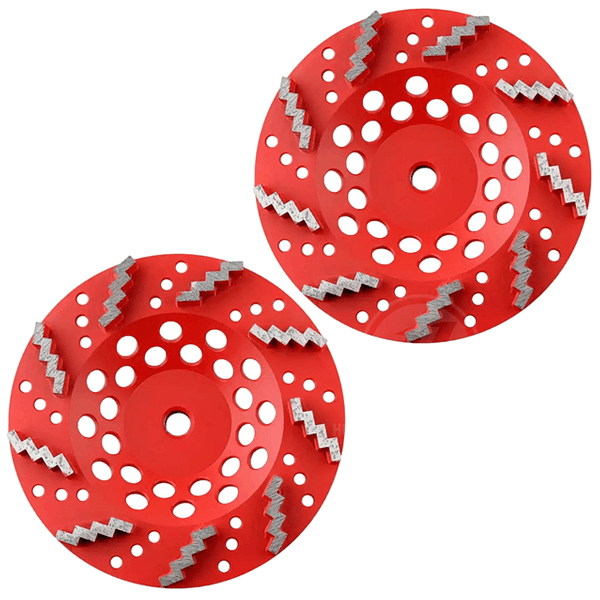

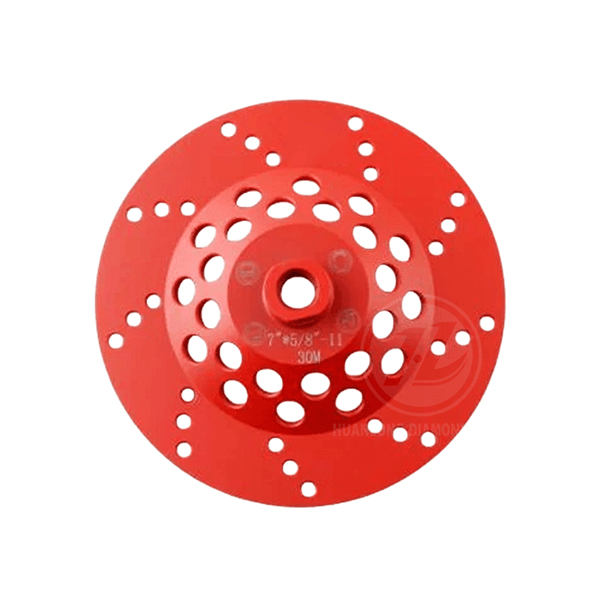

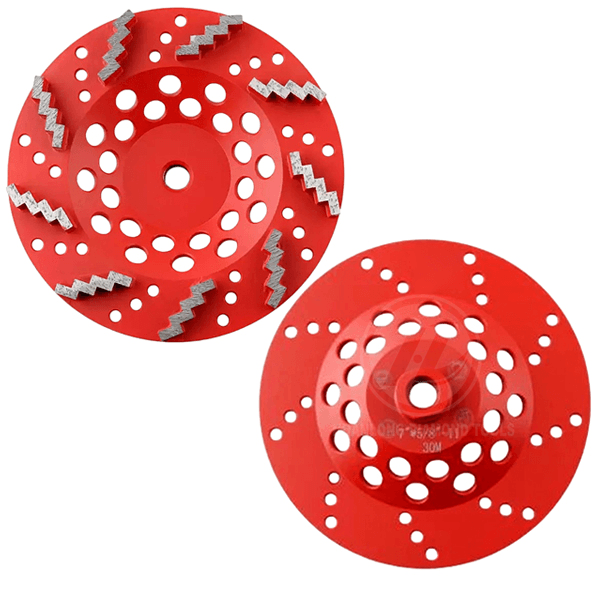

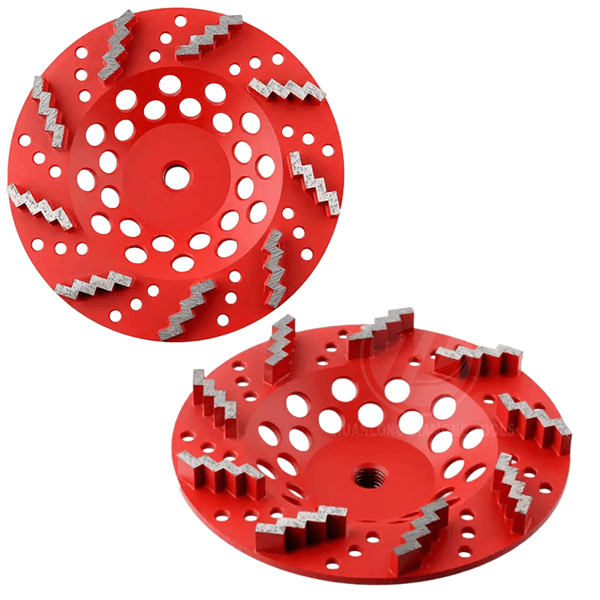

Huanlong 7″ Zigzag Segment Turbo Diamond cup wheel

Application: Huanlong Zigzag Segment Turbo cup wheel is a professional grade grinding disc for fast grinding hard materials such as concrete, Terrazzo, Engineered Stone, granit, marble and etc.
Zigzag shape segment make this cup wheel extremely aggrisive for rapid cutting hard material.
Using the highest quality diamonds and metal material with high segment diamond concentration, Huanlong diamond cup wheels performexcellent effciency compare to tradional abrasive diamond tooling.
Turbo style cooling holes on this cup wheel increase air flow during grinding for cooling and avoid gumming up of dust.
Available on standard 22.23mm bore, M14 Thread, 5/8″-11 Thread, perfect for fitting conmmon brand angle grinders for on site grinding jobs.

Various types of base cup wheel optionsavailable for different types of angle grinders, please contact us for availability and detail.

Size: 100mm/4″, 115mm/4.5″,125mm/5″, 150mm/6″, 180mm/7″, or upon request.

Segment number: 3/6/9/10/12 or upon request

Grit: 16#, 25#/,40#,60#,80#, 120# or upon request

Segment bond: Soft, Medium, Hard or upon request.

Bore size: 5/8″- 11, 22.23mm, M14 or upon request

Working type: Dry grinding / Wet grinding

Note:Please leave your email, our professional person will contact you asap!
