The PCD diamond grinding cup wheel is designed for fast removing hard and tacky surface coating including urethane epoxy, paint, glue, waterproofing membrane,pool deck coating, thick mastic, old and new epoxy coating,VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor.
Beveled edge segments are designed for use on concrete grinding machines to facilitate a smoother operation, especially on uneven floors. The beveled edge design helps reduce the risk of the tool catching on joints, minimizes chipping of the segments, and ensures smoother movement across varied surfaces
PCD grinding shoes are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor. Trapezoid PCD is easy and quick set up of diamond tools, no need for multiple sets of diamond holder discs and no time consuming. Available for a variety of machine manufacturers.
Trapezoid Grinding Shoes features a “quick-change” base installed on the rotating discs of large grinding machines to process the surfaces of concrete, terrazzo or stone.
HTC grinding shoes with three round segments are readily available for use on concrete and terrazzo floors. These tools are often used for medium to fine grinding, offering durability and a smooth finish.
Email：
contact@hldiamondtools.com

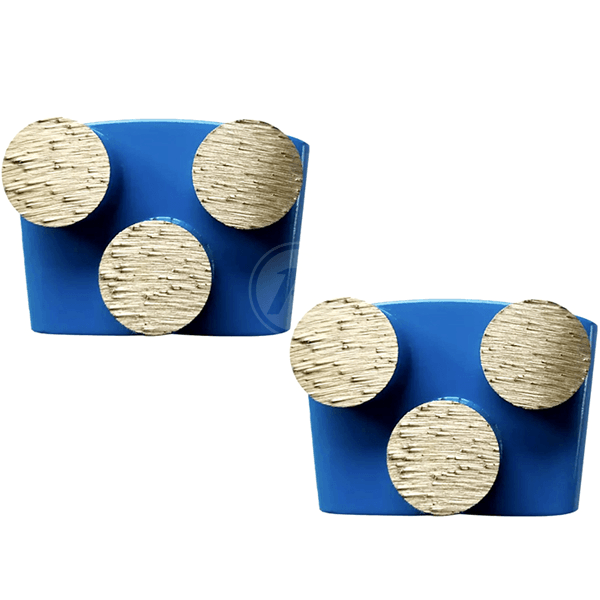

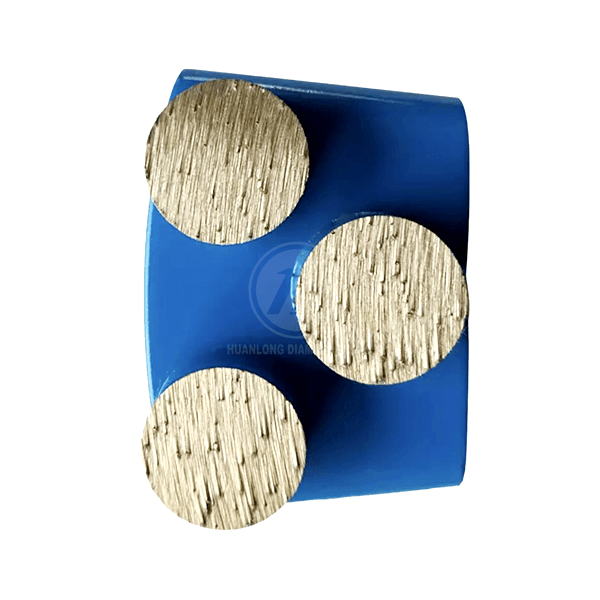

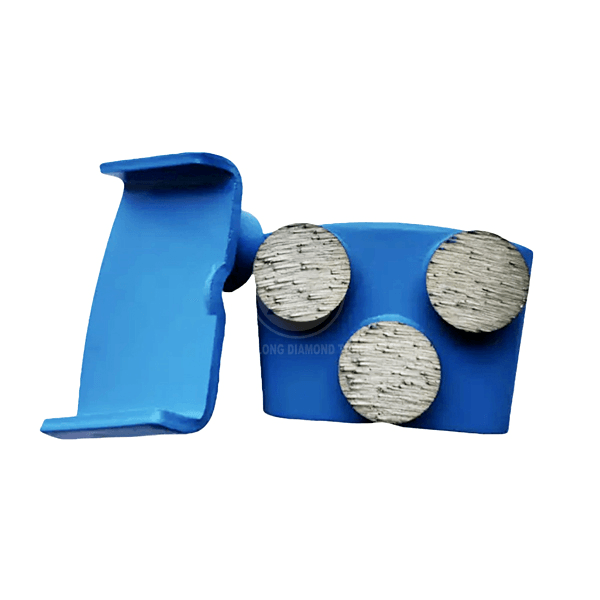

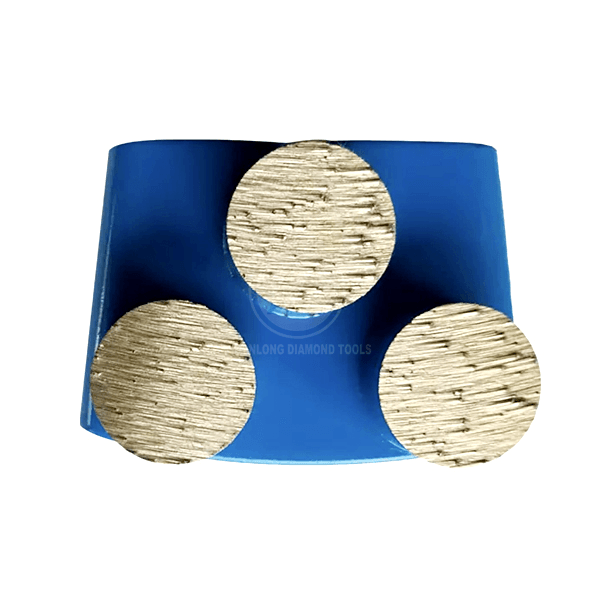

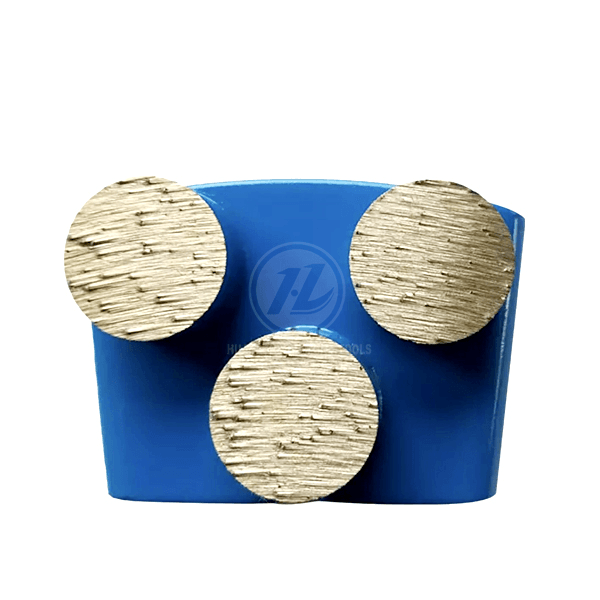

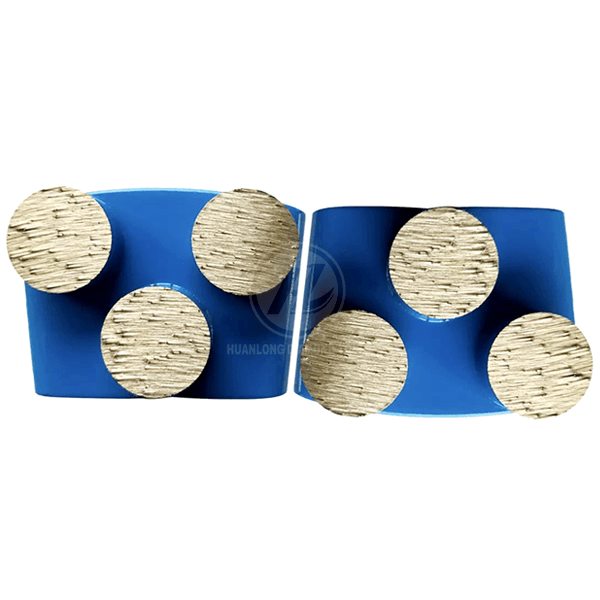

HTC 3-Button Grinding Disc is specifically designed with a “Triple Round” segment configuration (diameter 25x12mm) for concrete and terrazzo floors. It is compatible with the HTC Ez Change grinding system and comes in a wide range of grits and bond types, allowing customization for specific floor hardness.
Specifications
Connection: Designed for the HTC Easy Change system, allowing for quick, bolt-free attachment.
Application: Suitable for grinding concrete, terrazzo, and stone floors. Often used for fine grinding or floor preparation before polishing.
Segment Shape: Round (also known as “round button” or “circle”). This shape offers more durability than other shapes (like long/arrow segments) but is less aggressive.
Number of Segments: Three segments per shoe, which balances grinding efficiency and longevity.
Bond Hardness: Available in various metal bonds including extra soft, soft, medium, hard, and extra hard, to match the hardness of the concrete being ground.
Grit Range: from coarse (e.g., 6#, 16#, 25#) for aggressive material removal to very fine (e.g., 150#, 220#, 400#) for a smooth finish.
Usage: Can be used for both wet and dry grinding applications.
