Scanmaskin PCD shoes to provide high performance, long lifespan, and consistent results on any surface, our tools are available in various grit sizes and hardness levels to accommodate different concrete types and grinding tasks.
Home » Products » PCD Coating Removal Tools » Trapezoid PCD » Aggressive Two Square PCDs Redilock Scraper Diamond Tooling For Thick Coatings Trapezoid PCD shoes For Carpet Glue Removal

Scanmaskin PCD shoes to provide high performance, long lifespan, and consistent results on any surface, our tools are available in various grit sizes and hardness levels to accommodate different concrete types and grinding tasks.

Rhombus diamond grinding segments are durable, high-efficiency abrasive tools primarily used for concrete floor grinding, polishing, and surface preparation. Their unique shape provides a larger surface area and aggressive grinding action compared to other segment types

HuanLong offer all kinds of trapezoid PCD diamond to fit all types of machines. PCD Tools Removing Various Stubborn Coatings, Such as Paint, Varnish, Adhesives, Epoxy, Acrylics, Self-leveling Residue, VCT Mastix, Black Asphalt Adhesive, and Rubber-like Materials.

“For easy installation of velcro back resin floor polishing pad onto floor grinding machine. Eg: REDILOCK, LAVINA, HTC, SKINMAKIN, SWITCH, STI, etc. 1) Diameter: Trapzoid 2) Back: redi lock 3) Connection: Magnetic or M6 thread 4) Color: Black”

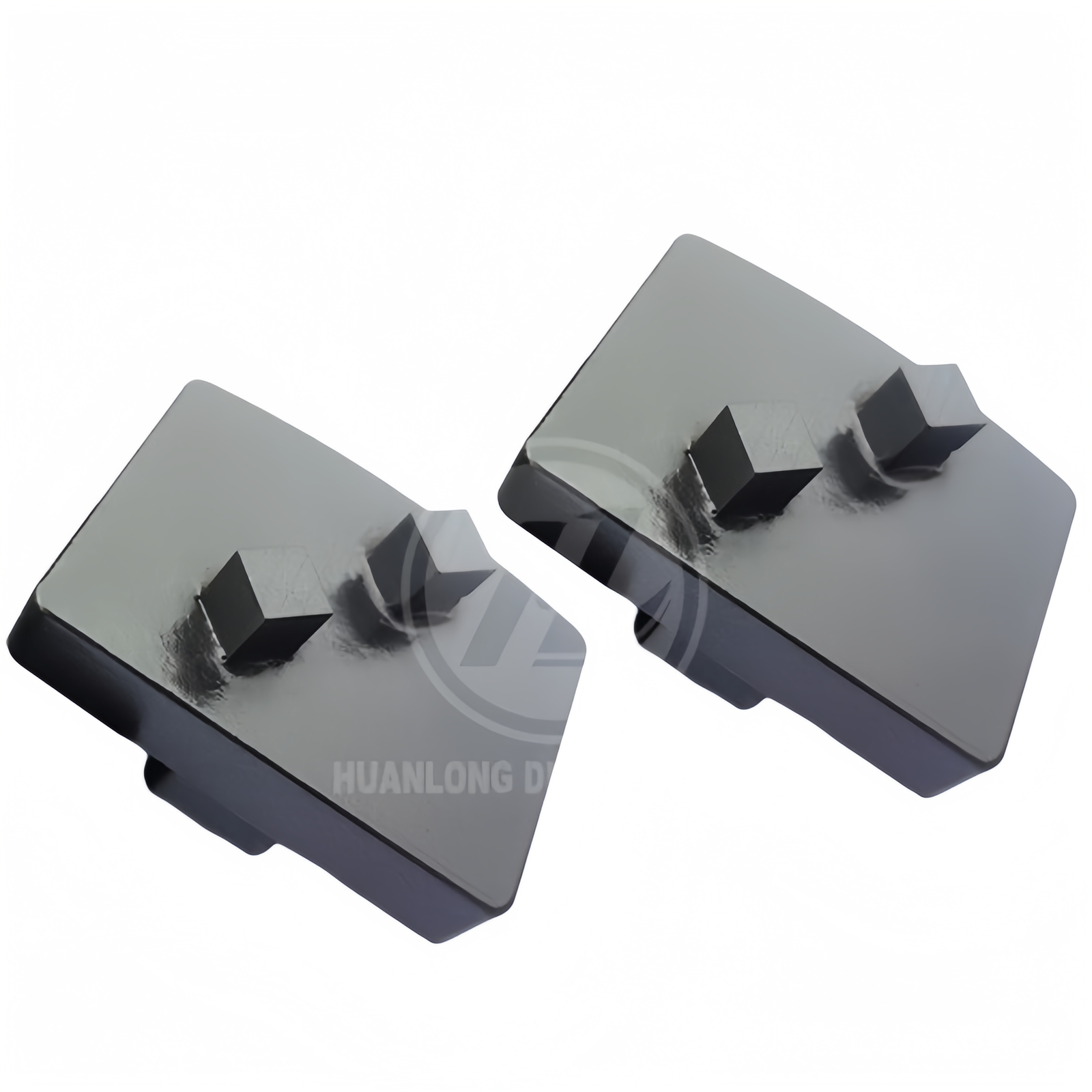

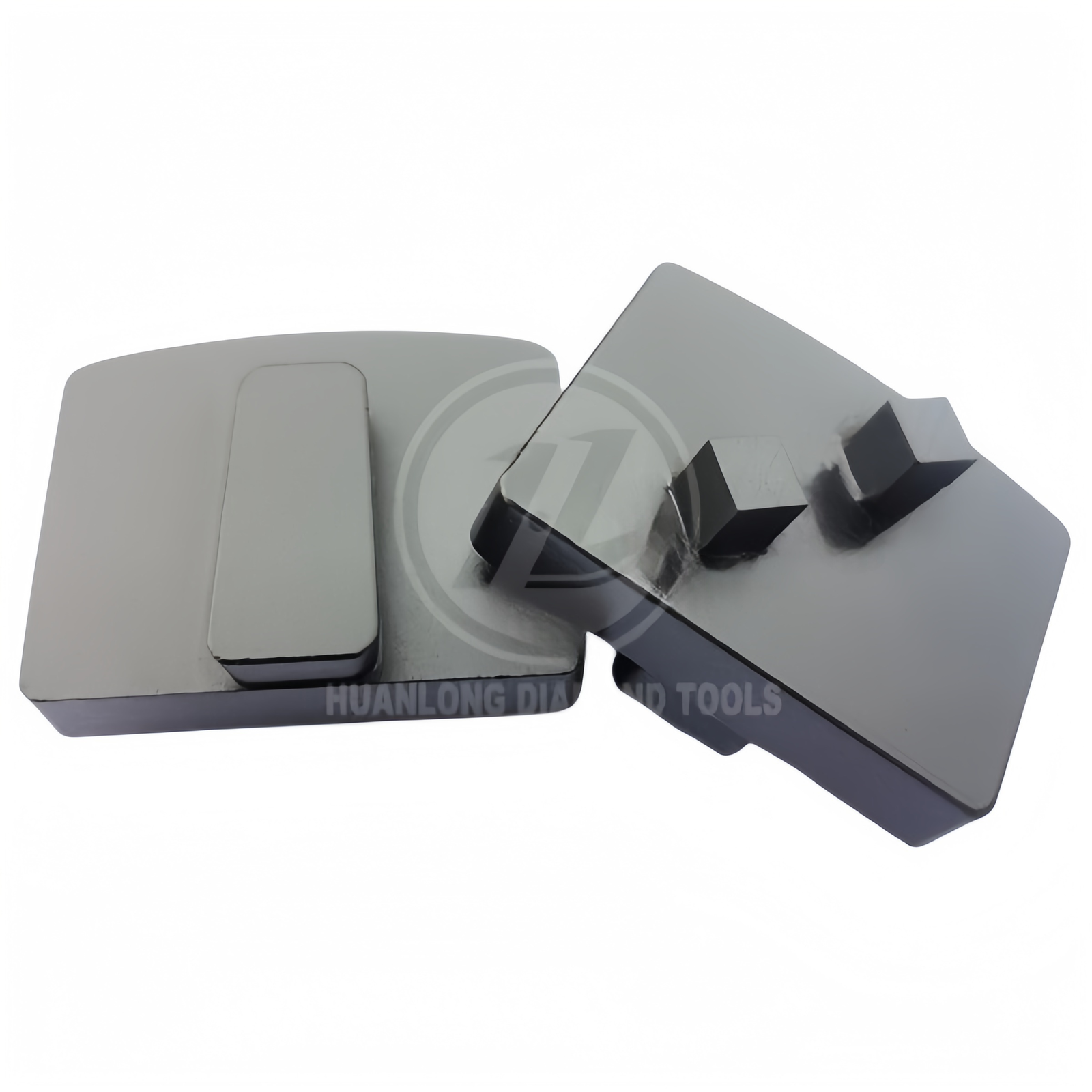

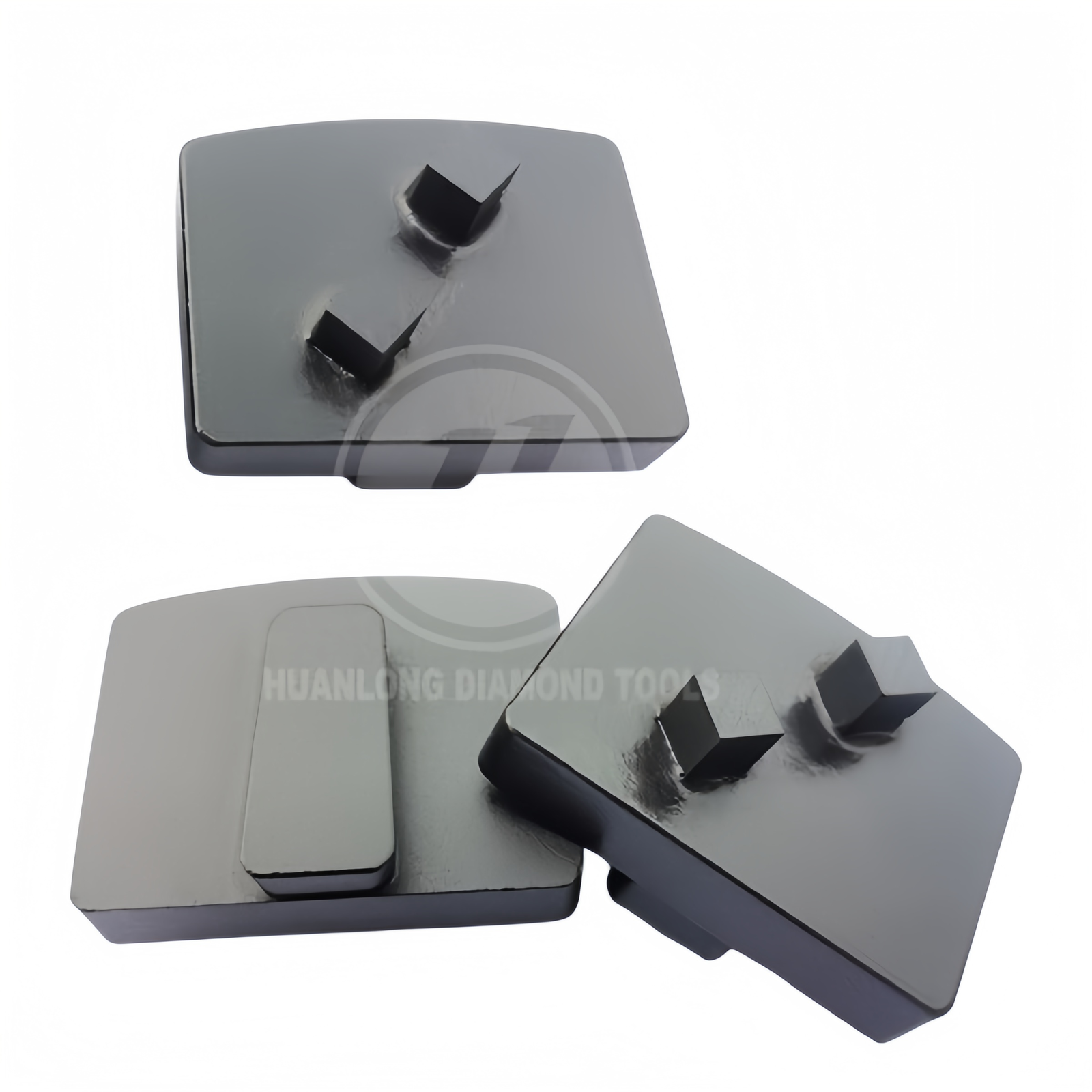

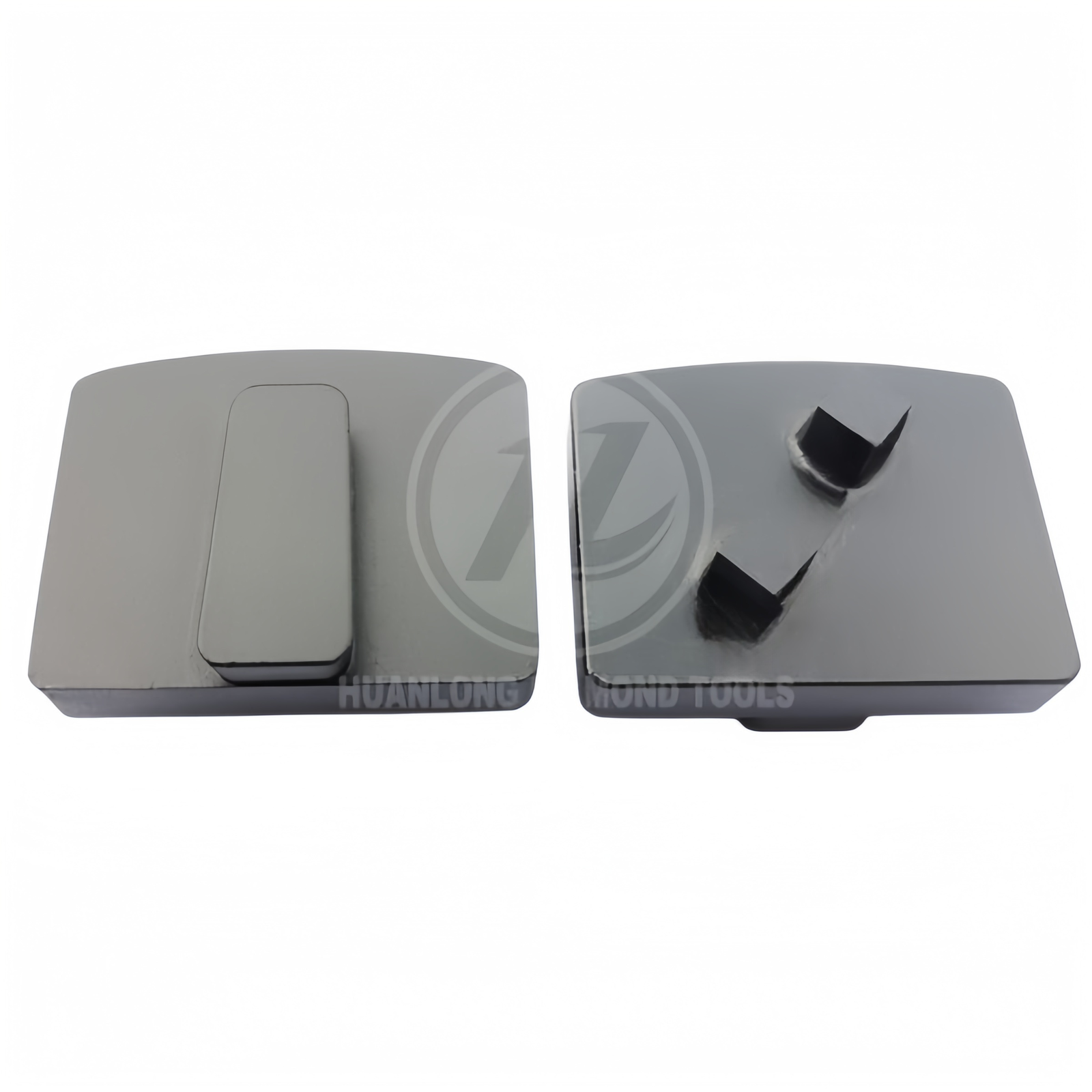

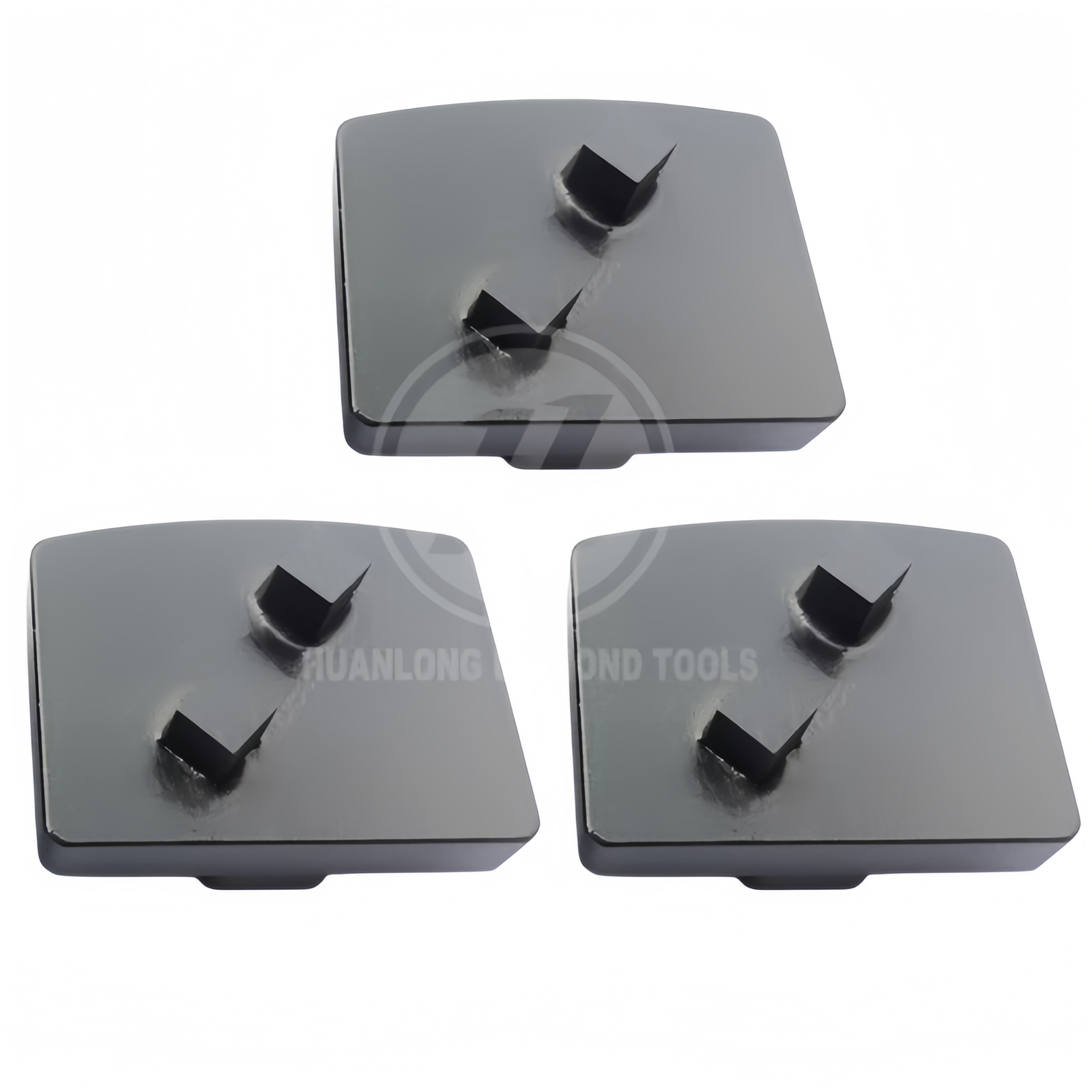

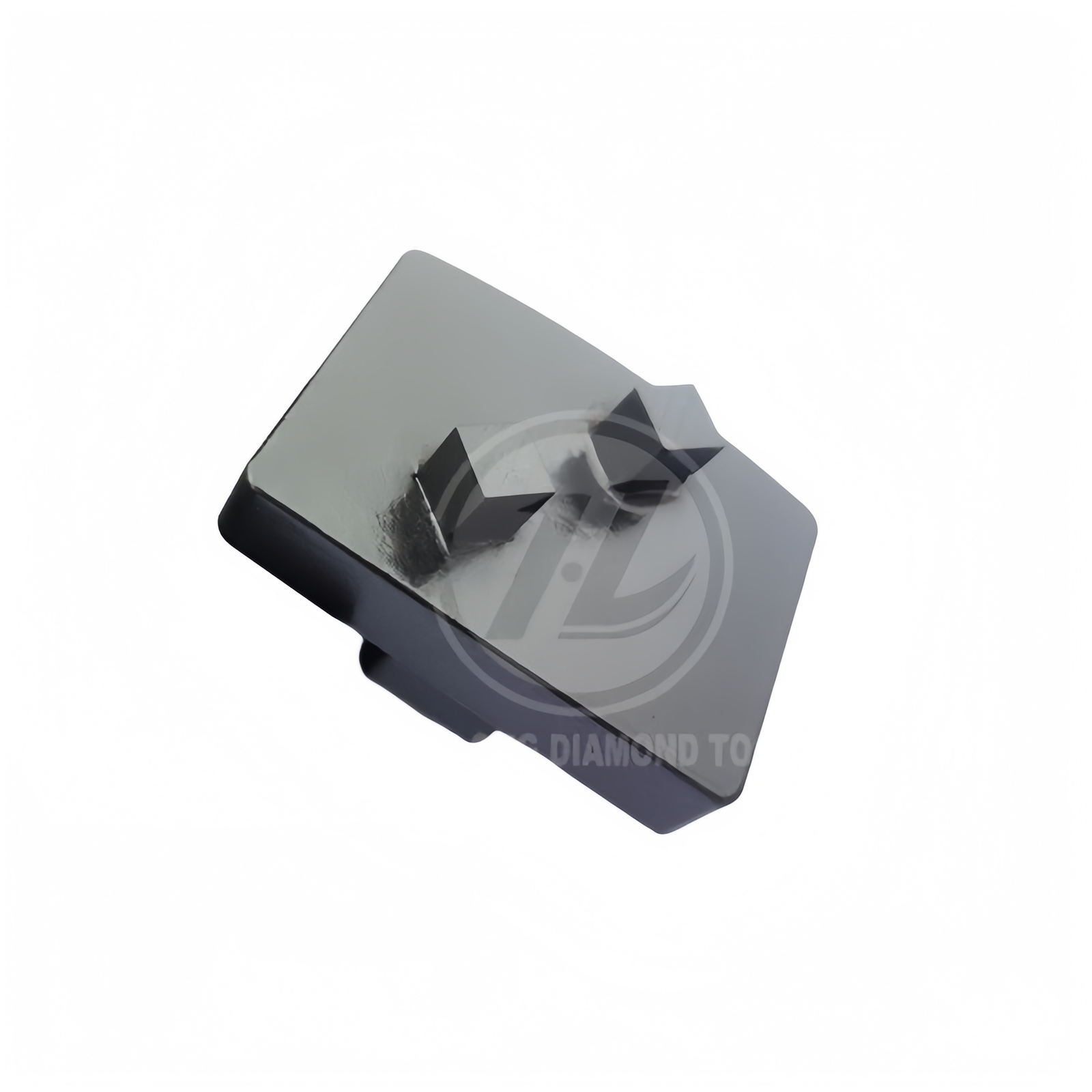

Redi-Lock with 2 Square PCD refers to a specific type of floor grinding tool designed for the Husqvarna Redi-Lock quick-change system. These tools are high-performance “scrapers” used primarily for the aggressive removal of tough floor coatings rather than standard concrete grinding.
Email:
contact@hldiamondtools.com
PCD segments Instead of “grinding” the surface down like sandpaper, PCDs “rip and strip” the material. This removal tools do not heat up or smear sticky coatings, making them much faster for thick removals.
Two square PCD segments on a single Redi-Lock shoe provides a balance between aggression and stability. Square-shaped segments have a long leading edge. This makes them particularly effective on uneven concrete surfaces compared to round PCDs, as they are less likely to “dive” too deeply into low spots while still maintaining a sharp scraping edge. Using two segments (rather than one) increases the tool’s life and helps stabilize the grinding head, especially on heavier three-phase planetary grinders.
Double Square PCD is the “heavy hitter” for surface preparation. It is used to remove:
Thick Coatings: Epoxies, urethanes, and polyaspartics.
Stubborn Residues: Black mastic, carpet glue, and tile adhesive.
Waterproofing Membranes: Thick rubberized layers that would gum up standard diamond segments.
PCD tools are often directional. You must ensure you have “Right” (clockwise) or “Left” (counter-clockwise) shoes depending on the rotation of your grinder’s heads.
