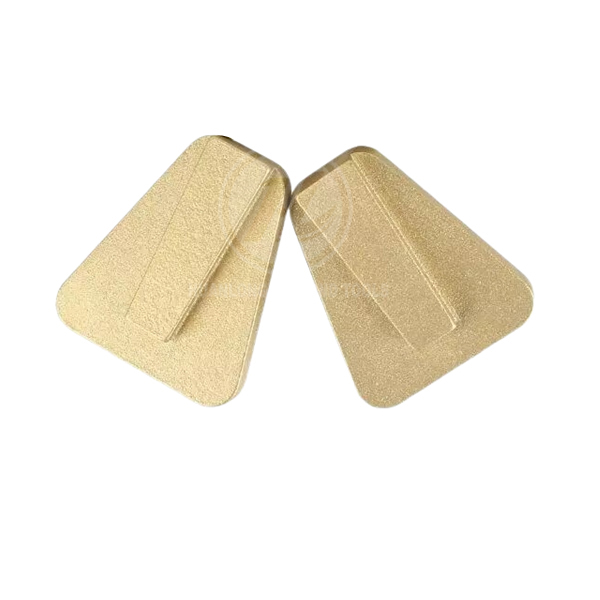

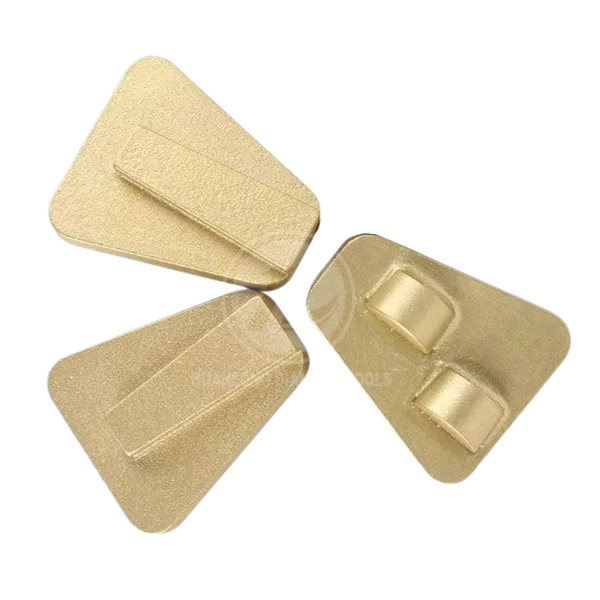

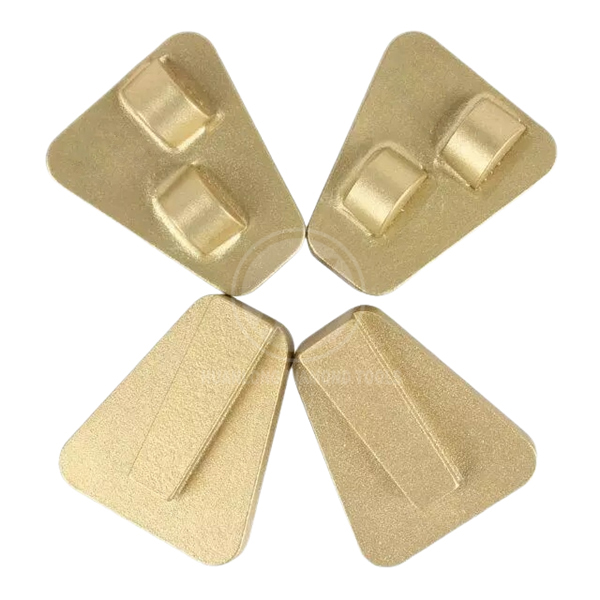

The Redi-Lock with 3×1/4 PCD & 1 Bar Segment is a precision removal tool that combines the aggressive “shredding” power of multiple PCD chips with the stability of a metal-bond diamond bar.It is arguably the most balanced tool in the Redi-Lock PCD family, designed specifically to avoid the “all-or-nothing” aggressiveness of larger PCDs.
PCD MASTIC SCRAPER WITH BAR
The PCD Mastic Scraper with Bar is designed for removing glue, epoxy, VCT mastic, and other floor coatings. It features a 6-grit or 16-grit metal bond diamond wheel.
Standard center holes (7/8 inch or 22.23 mm) grinding disc allow installation onto the chucks of most consumer and professional angle grinders. The surrounding pattern of holes is used to connect various types of grinding discs or grinding heads.
“PCD grinding plates are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor. “
Schwamborn PCD grinding shoes are specialized surface preparation tools designed for the aggressive removal of stubborn floor coatings. Unlike standard metal-bond diamond segments that “grind” the surface, PCD tools use a “scraping” or “tearing” action, which prevents the tools from gumming up or overheating when dealing with thick, sticky materials.
Email：
contact@hldiamondtools.com

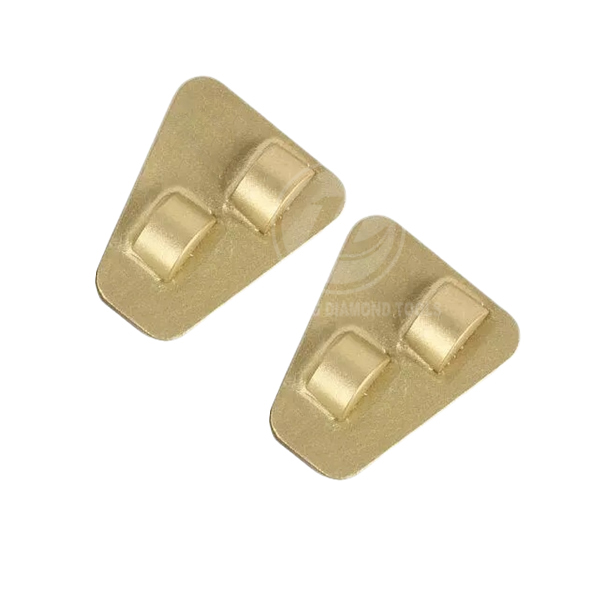

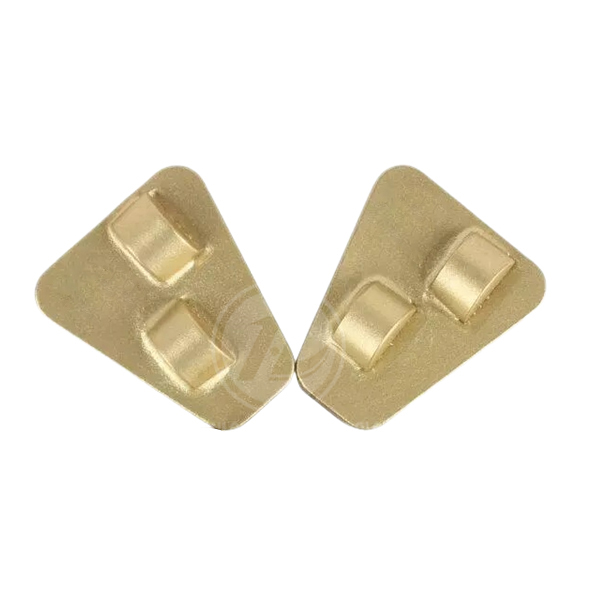

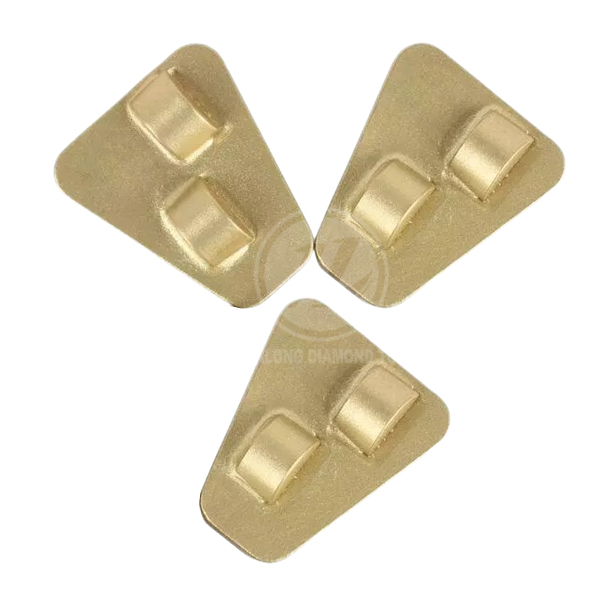

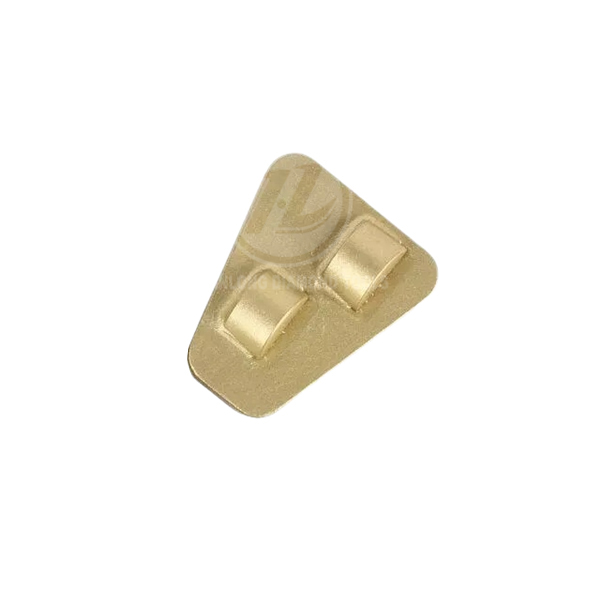

Schwamborn with two half-round (split) Polycrystalline Diamond segments 2 x 1/2 PCD less aggressive than a full-round PCD but more efficient than a standard metal-bond diamond for removing stubborn materials.
Application
1. Medium Coating Removal: Ideal for polyurethane, acrylics, and epoxy coatings that aren’t excessively thick.
2. Adhesive Residue: Excellent for scraping up carpet glue, VCT mastic, and bitumen that hasn’t hardened into a rock-like state.
3. Corrective Grinding: Used when the surface is too “gummy” for 16-grit metal bonds but you don’t want the destructive power of a full PCD.
4. Keying the Surface: Leaves a perfect “key” (CSP 3–5) for new coatings to bond to, often saving you a secondary grinding step with coarse metal bonds.
Note：Please leave your email, our professional person will contact you asap!
Keywords: CW505、CW507、Class B water mill、7-inch turbine 30
