Huanlong 1 Coffin segments Redilock grinding shoes are specifically designed for high-efficiency floor prep and aggressive coating removal.
PRODUCTS
HOT PRODUCTS
Diamond Grinding Disc, commonly used in grinders or angle grinders, especially concrete grinders, quickly grinding concrete, stone, and terrazzo floors to remove coatings such as epoxy resin, adhesives, and thin mortar layers.
Magnetic grinding shoes with three round segments are readily available for use on concrete and terrazzo floors. These tools are often used for medium to fine grinding, offering durability and a smooth finish.
PCD grinding shoes are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor. Trapezoid PCD is easy and quick set up of diamond tools, no need for multiple sets of diamond holder discs and no time consuming. Available for a variety of machine manufacturers.

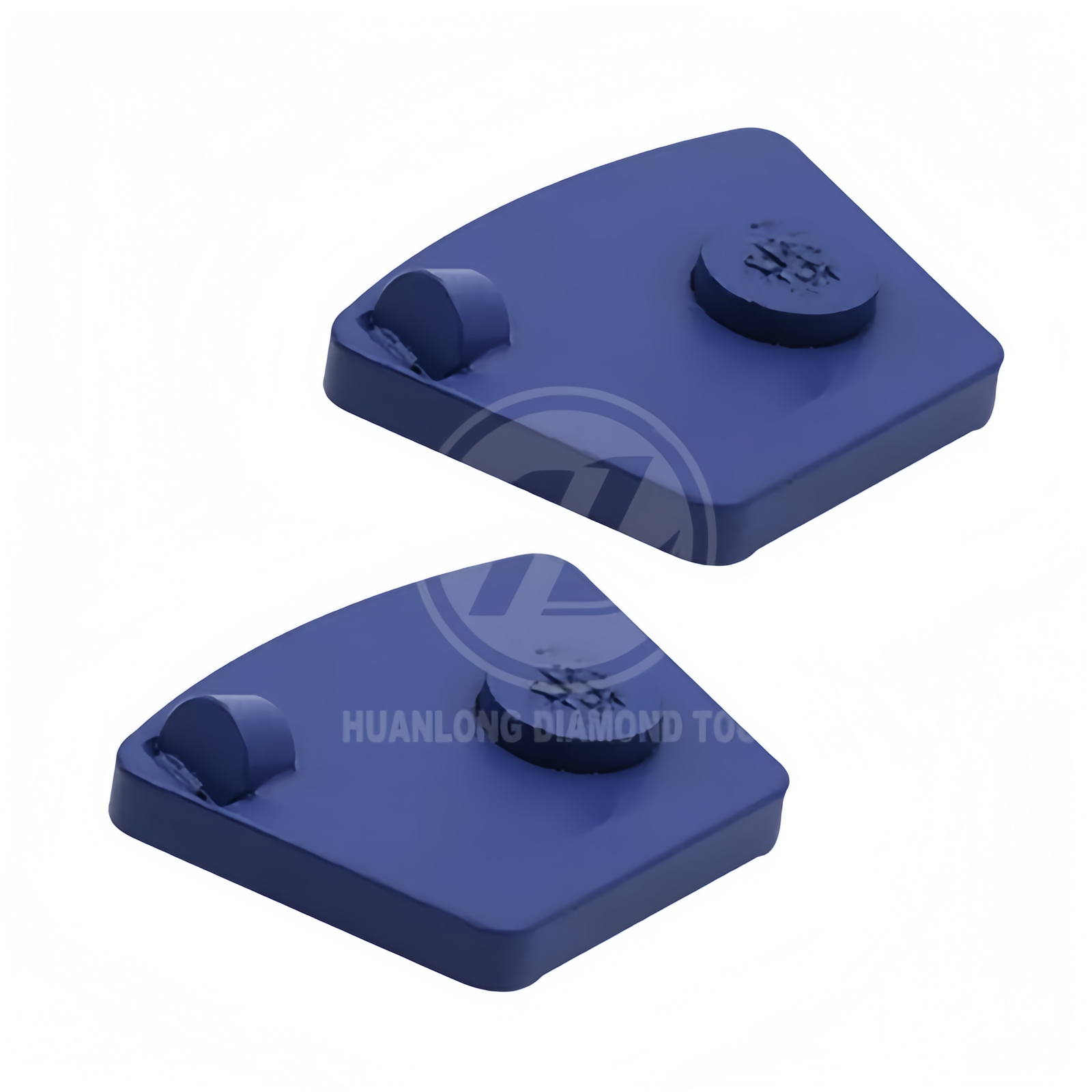

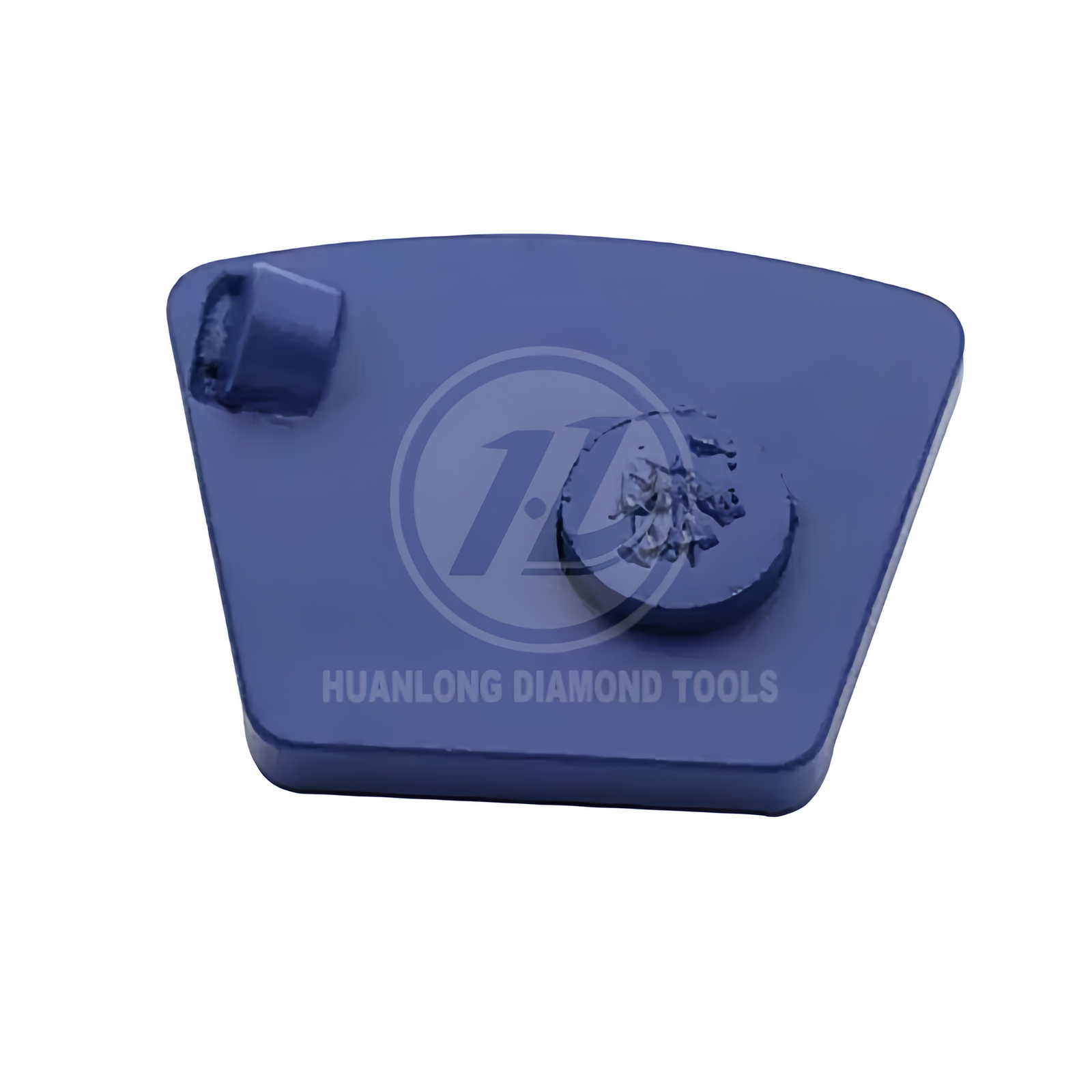

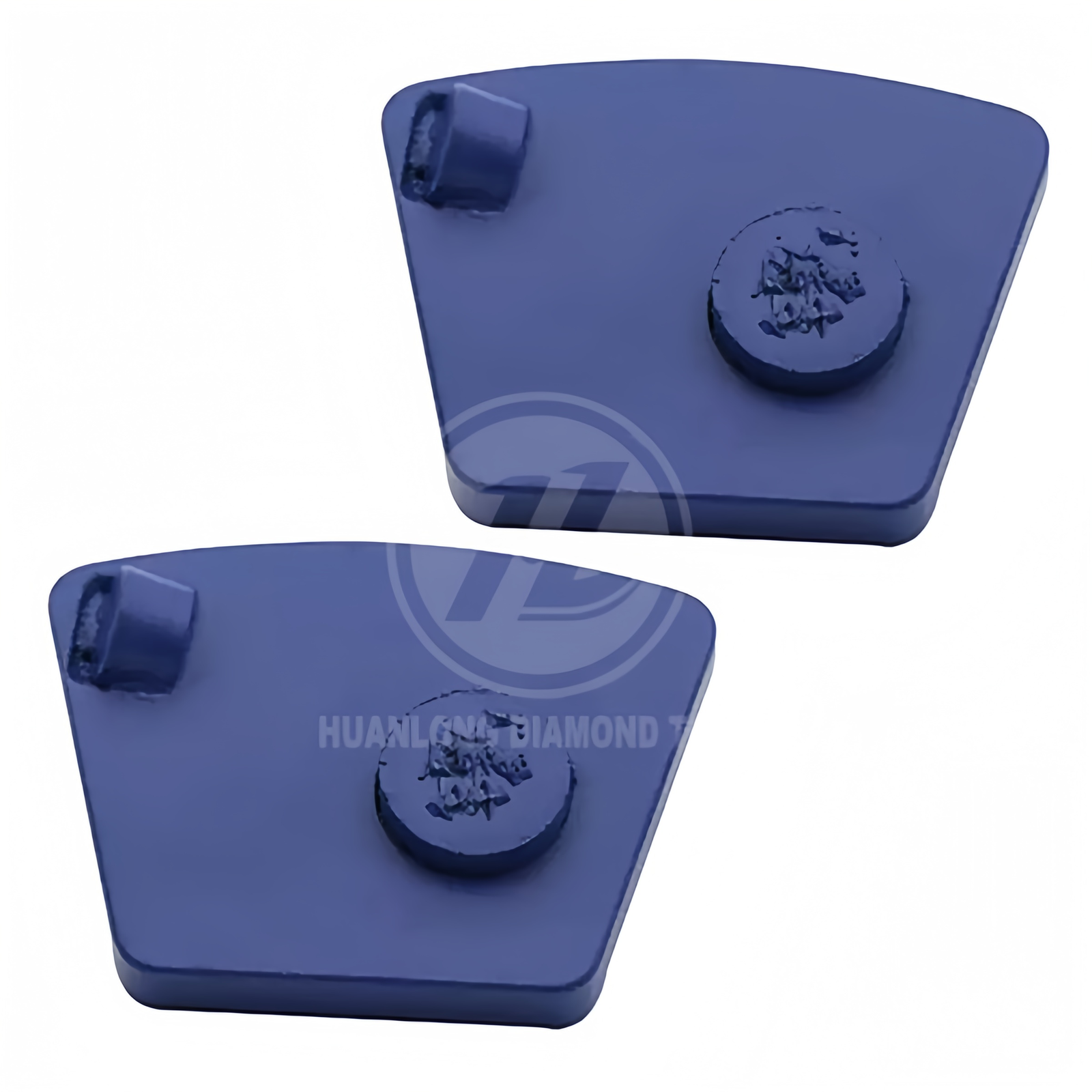

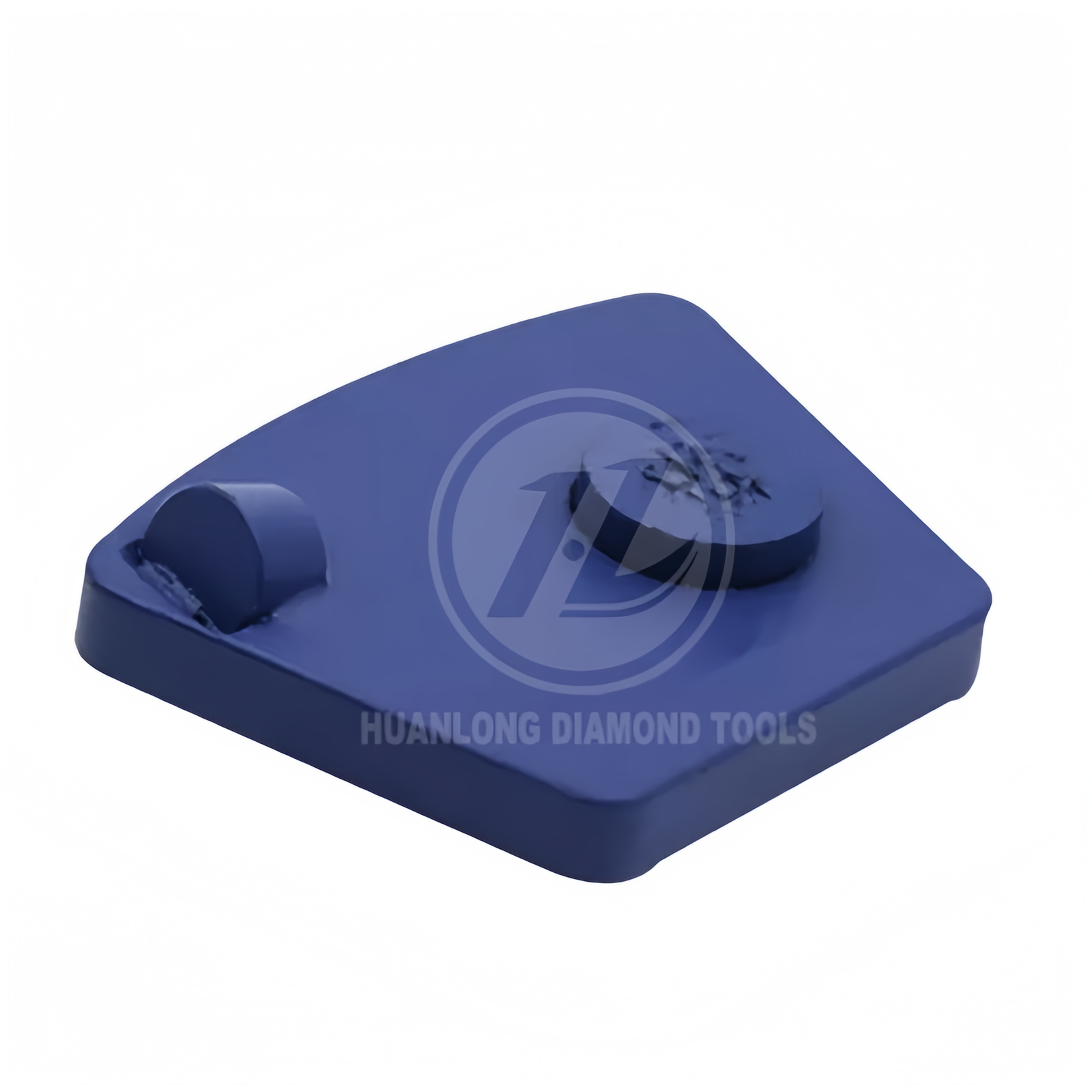

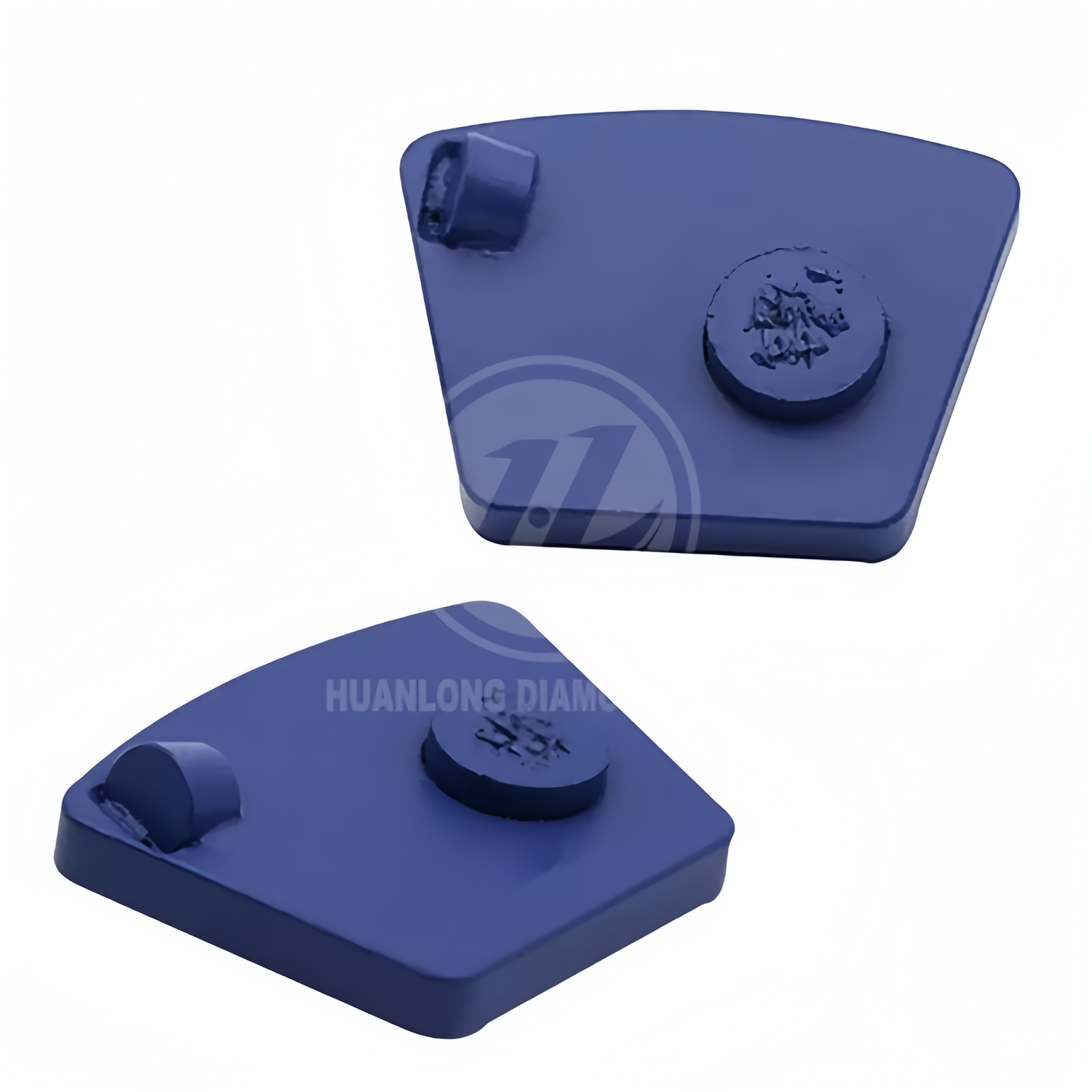

Redilock Aggressive scraping pcd diamond tool with full pcd and 1button with split PCD segments PCD diamond grinding shoes for Husqvarna grinding machines
Husqvarna Redi-Lock with 1 Full PCD and 1 Button with Split PCD is a high-performance “hybrid” removal tool. It is essentially a triple-action shoe designed for the most difficult surface preparation jobs where you need both aggressive removal and a smoother finish than a standard PCD can provide.
Email：
contact@hldiamondtools.com
PCD Grinding Disc The Full PCD is the “heavy lifter.” It is a large, solid diamond chunk that acts as a scraper. It physically dives under thick coatings (like epoxy or heavy mastic) and rips them away from the concrete.
The Button is a round, metal-bond diamond segment that sits on the same shoe.
It acts as a depth gauge or “governor.” It supports the weight of the grinding machine so the Full PCD doesn’t dig too deep and gouge the concrete floor. It protects the concrete substrate and provides stability, preventing the machine from “walking” or vibrating excessively.
The Split PCD (Crushed/Fragmented Segment) is a unique segment where the PCD material is broken into smaller pieces or “split” across the segment surface.
It bridges the gap between the aggressive Full PCD and the smoothing Button. It removes smaller bits of coating and adhesive that the larger PCD might have missed. It creates a “crushed” scratch pattern (similar to a shot-blast texture) rather than the deep “corn-row” gashes left by standard PCDs.
The Full PCD removes the bulk of the material, while the Split PCD and Button smooth out the path. This makes it much easier to transition to your next grinding step (usually a 30 or 70 grit metal bond). Ideal for Thin-to-Medium Coatings: Perfect for floors with less than 2mm of epoxy, glue, or self-leveling compound. If you intend to polish the concrete afterward, this removal tool is superior to a double-full PCD because it leaves a surface that is much easier to “grind out” later.
Rotation: Like most PCD tools, these are directional. You must ensure you buy “Clockwise” or “Counter-clockwise” versions to match the rotation of your Husqvarna grinder heads.
Pressure: Because of the button, you can often run these with higher head pressure without the fear of damaging the floor compared to a “naked” PCD.
